Kingfisher Plus+ Hardware Manual

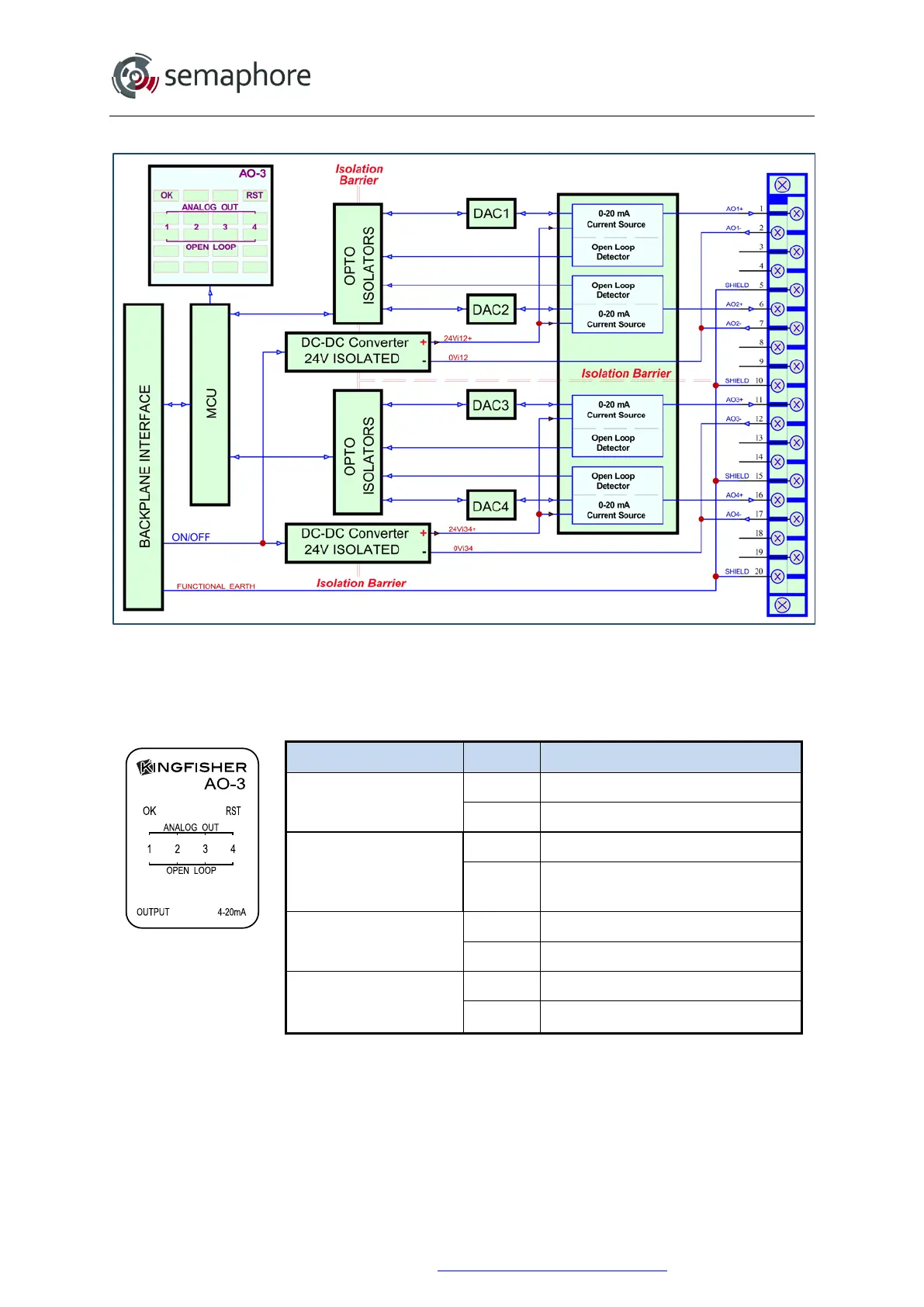

Block-diagram of the AO-3 module is shown on the figure below.
AO-3 Block Diagram
10.1.2 AO-3 Module LEDs
AO-3 LEDs State Description
OK
OFF Module fault / no power
ON Normal
RST
OFF Module running
ON
Module in Reset (power-on or
watchdog)
ANALOGUE OUT 1-4
OFF Channel output set to 0%
ON Channel output greater than 0%
OPEN LOOP 1-4
OFF Closed Loop (load detected)
ON Open Loop (no load)
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 146
