Kingfisher Plus+ Hardware Manual
TEL-RAK-002: 19” Rack Mounting for BA-4/6/40

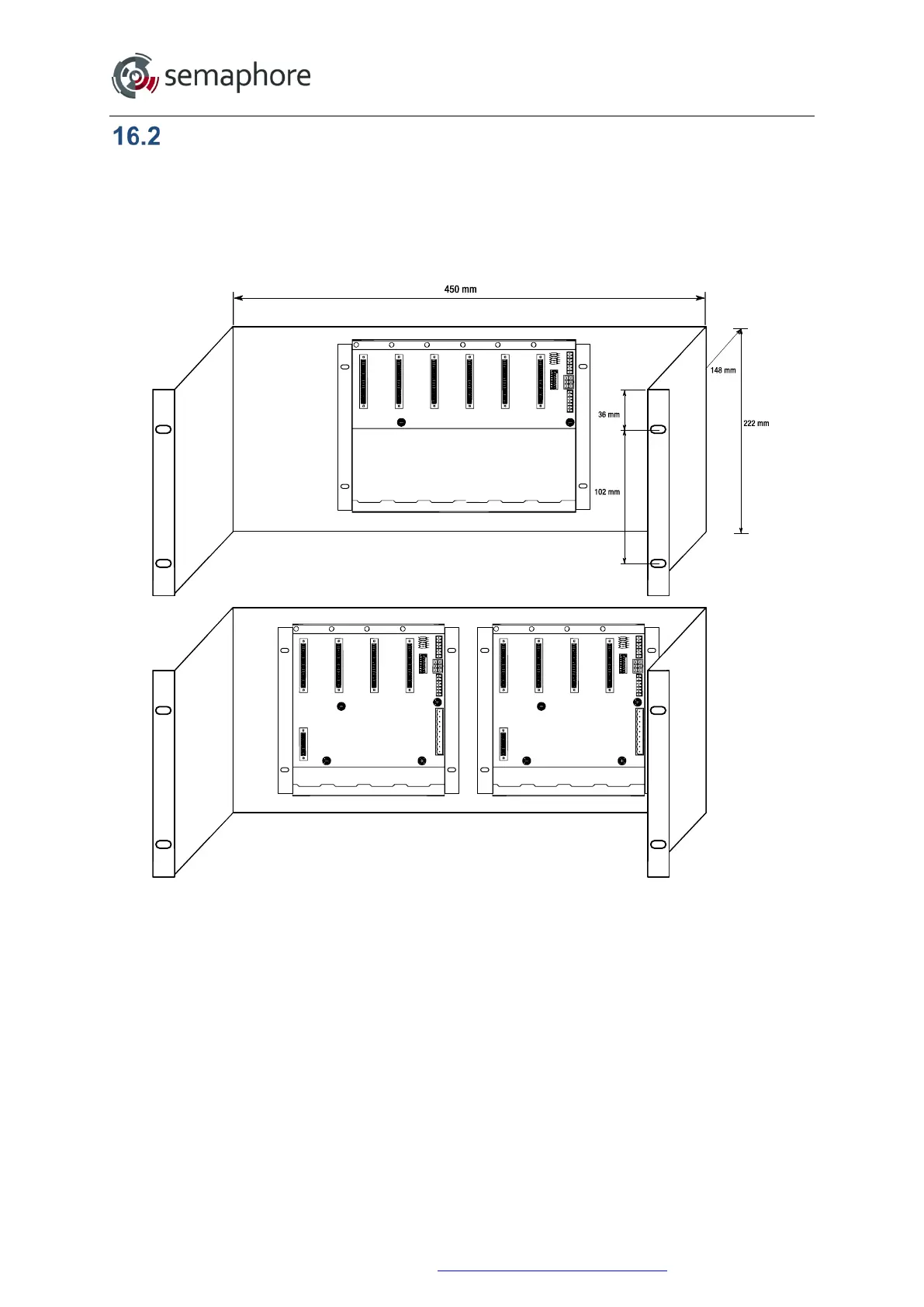

A four slot backplane (BA-4 or BA-40) or a six slot backplane (BA-6-PLUS) is mounted in a
19 inch rack using a TEL-RAK-002 mounting bracket. One BA-6-PLUS or two BA-4/BA-40
backplanes can be attached to the TEL-RAK-002 using the surface mount brackets supplied
with each backplane. The TEL-RAK-002 is supplied with eight M3 x 5 mm screws for
attaching the backplane(s).
