Kingfisher Plus+ Hardware Manual

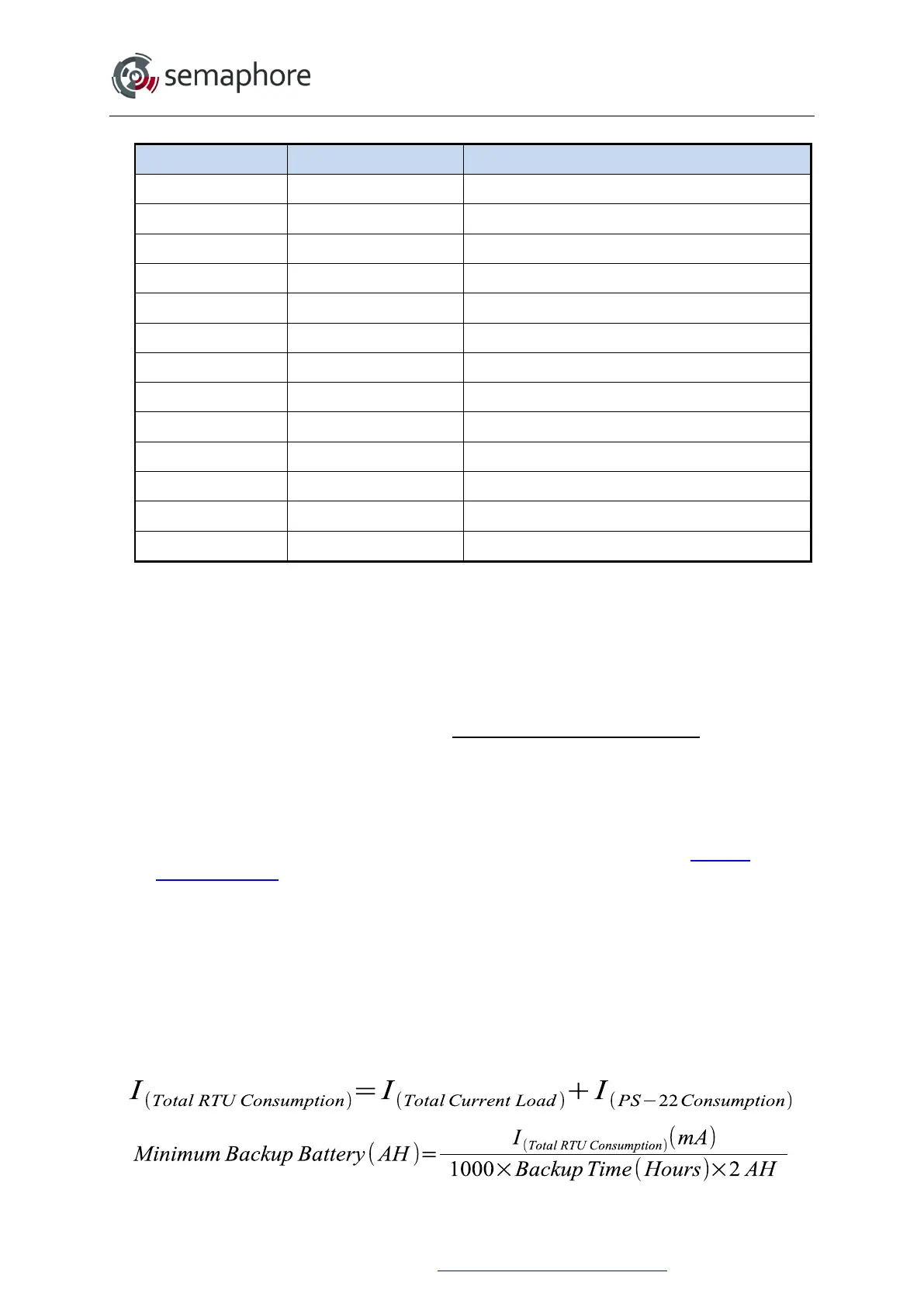

IO Module 5 V Rail current consumption (mA from 5 V
DC
)
Module All IO inactive All IO active and powered by module
AI-1 22 27
AI-10 15 66
AO-2 22 28
AO-3 9 30
DI-5 6 40
DI-10 54 85
DO-1 15 27
DO-2 9 39
DO-5/6 48 39
IO-2 10 37
IO-3 26 36
IO-4 23 37
IO-5 37 151
3.4.3 Total Power Load
The total current required to power the RTU is as follows:
=
+
−
+
Total Power load is therefore:
[
]
=
13.8
[
]
×
[]
1000
• The Total Current Load for a PS-12/22 should not exceed 4.5 A.
• The Total Current Load for a PC-1 should not exceed 4 A. Loads greater than 4 A will
require a PS-12/22 supply to be installed.
• Users should be mindful of the current draw on the 5 V
DC
rail. See the “5 V Rail
Overload Check” chapter for more details.
3.4.4 Battery Backup
To maximise the service life of the battery, the depth of its discharge should not exceed 50%
of available capacity. E.g. for a 7 Ah battery, there is 3.5 Ah of backup power. Therefore the
battery can supply 3.5 Amps for 1 hour or 1 Amp for 3.5 hours etc.
The size of the backup battery required depends on how long the RTU needs to be able to
run without mains power. In addition to the Total Current Load above, a backup battery will
also need to power the PS-12/22 if present (not applicable if using a PC-1 processor).
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 60
