Kingfisher Plus+ Hardware Manual
2.2.2 BA-40-PLUS: 4-slot Backplane
A BA-40-PLUS backplane is identical to a BA-4-PLUS backplane but with the J6 Power
Connector and the PC-1 Power Connector are removed.
This backplane is designed to be used with a PS-xx power supply and a CP-xx processor
module or linked to any other backplane to provide additional slots.

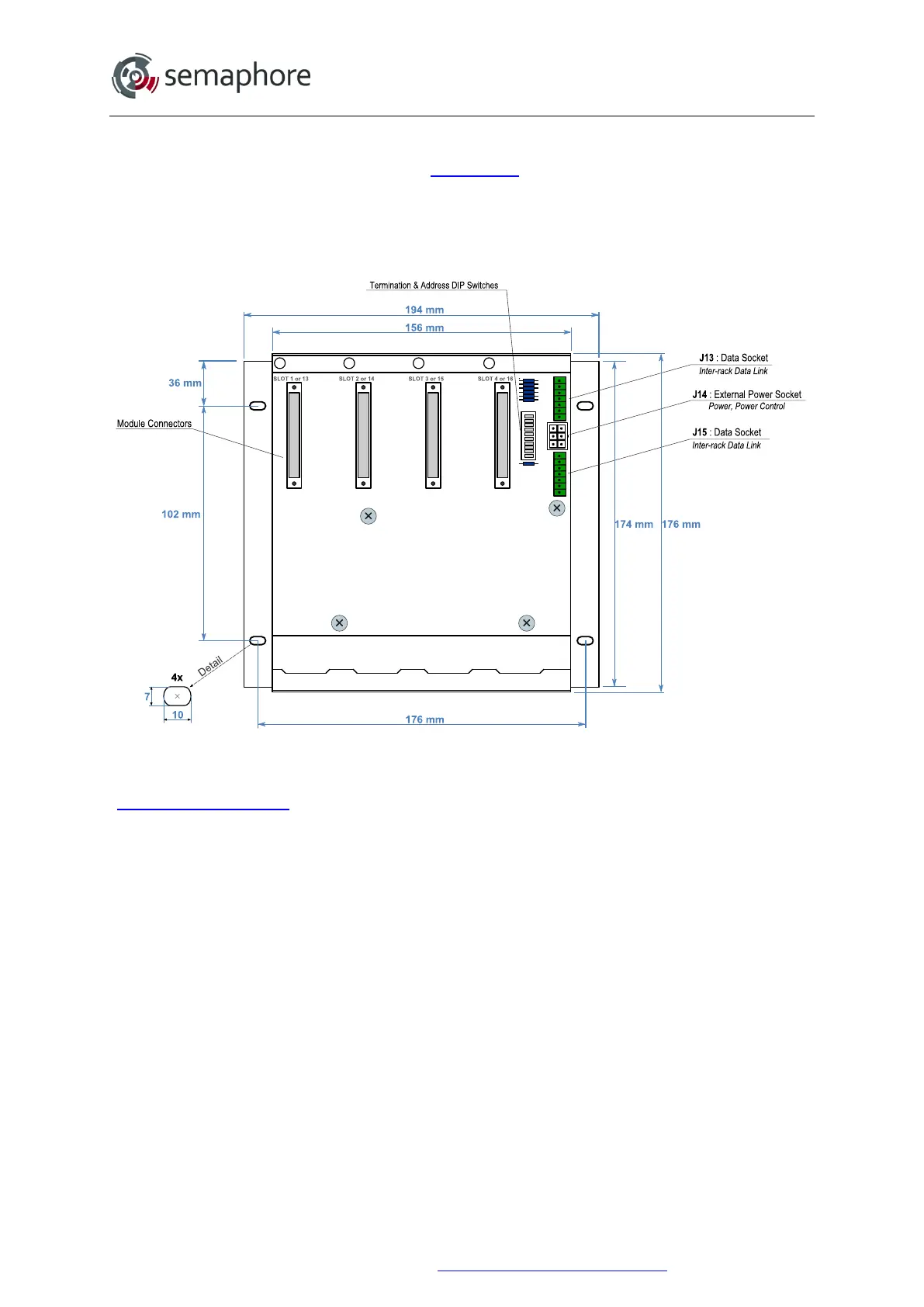

BA-40-PLUS backplane
For information on the BA-40-PLUS backplane connectors please refer to the
“Backplane Connectors
” section below.
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 19
