semaphore KINGFISHER PLUS+ - 13.3.3 TEL REL 003 Wiring Diagram

Kingfisher Plus+ Hardware Manual
Relay Part Number
Omron G2RG-2A4 12 V
DC
(datasheet is available from http://components.omron.eu/
)
CAUTION! Contacts should be protected with appropriate suppression devices when wired
with inductive loads to increase the service life of relays (please see the
"Switching Inductive
Loads" section for more details). Contacts should also be protected with external fusing.
#)
CAUTION! If input voltage is expected to exceed Safety Extra Low Voltage (SELV) levels
(DC 60 V or AC 42 V
PEAK
relative to system earth and/or ground) then all used commons
must be connected to a single power source and no other power sources are allowed to be
connected to this module.

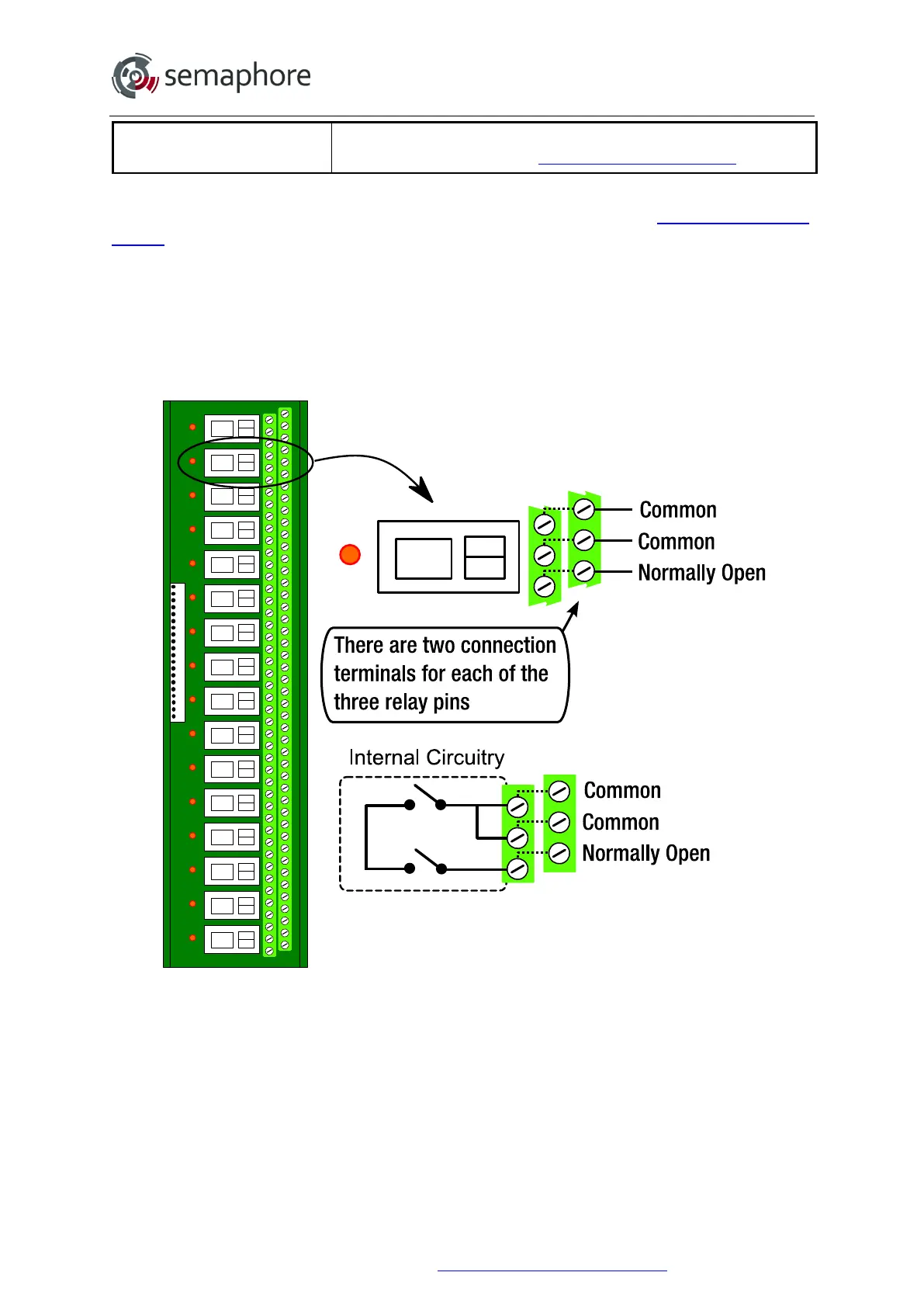

13.3.3 TEL REL 003 Wiring Diagram
