Kingfisher Plus+ Hardware Manual
CAUTION! Contacts should be protected with appropriate suppression devices when wired with
inductive loads to increase the service life of relays (please see the "Switching Inductive Loads"
section for more details). Contacts should also be protected with external fusing.

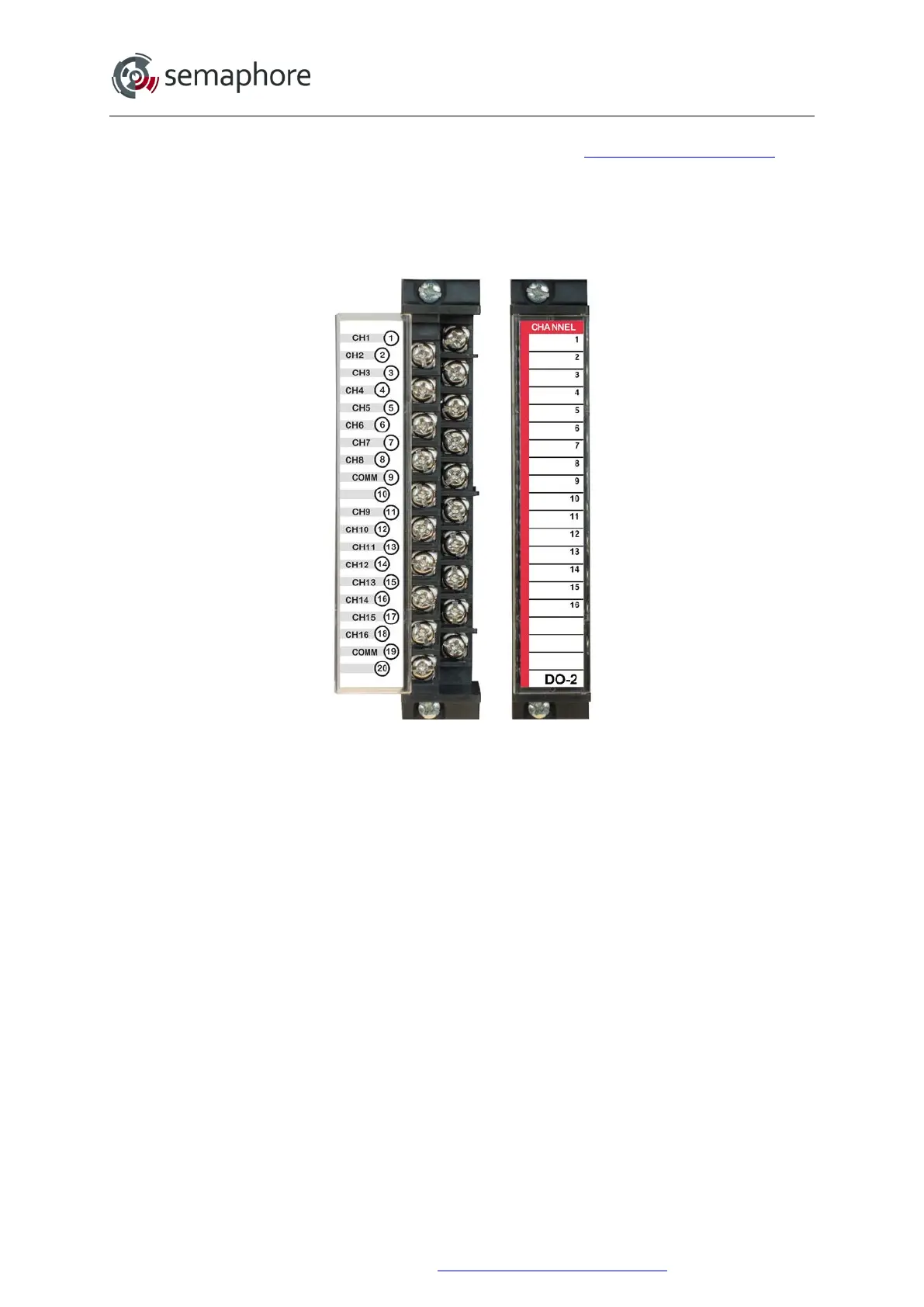

12.4.4 DO-2 Wiring Diagram
The insert in the hinged cover of the terminal strip has circuit wiring information. Circuit
identification information can be recorded on the outside surface of the insert.
