Kingfisher Plus+ Hardware Manual
BA-x-PLUS Backplanes
2.2.1 BA-4-PLUS: 4-slot Backplane for PC-1 Processor
A BA-4-PLUS backplane is designed to be used with a PC-1 power and processor module.
The PC-1 is installed into the leftmost slot and any other modules can be installed in the
remaining 3 slots.
Please use a BA-40-PLUS
backplane if requiring a 4-slot backplane for use with a CP-xx
processor and a PS-xx power supply.

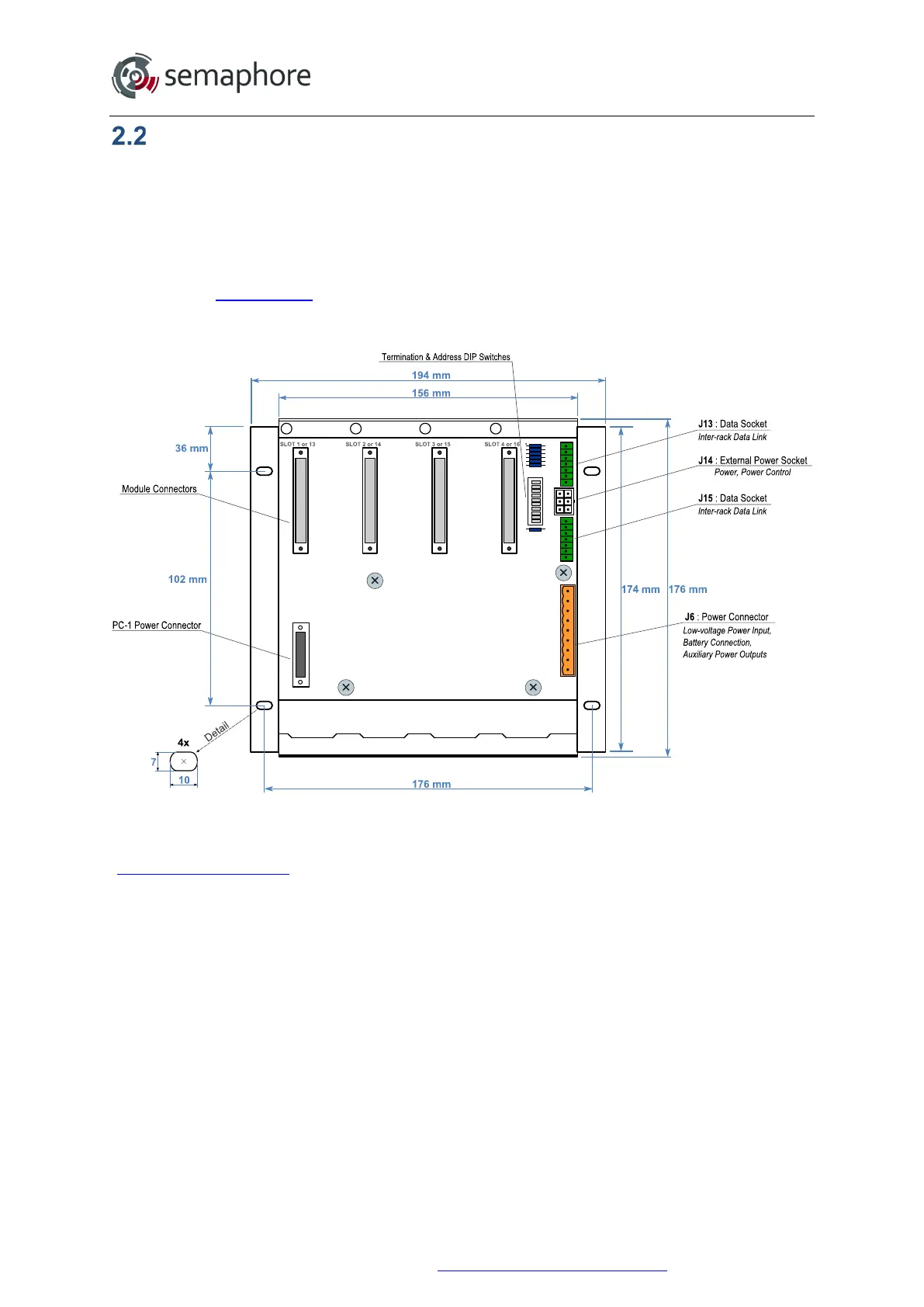

BA-4-PLUS backplane
For information on the BA-4-PLUS backplane connectors please refer to the
“Backplane Connectors
” section below.
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 18
