Kingfisher Plus+ Hardware Manual

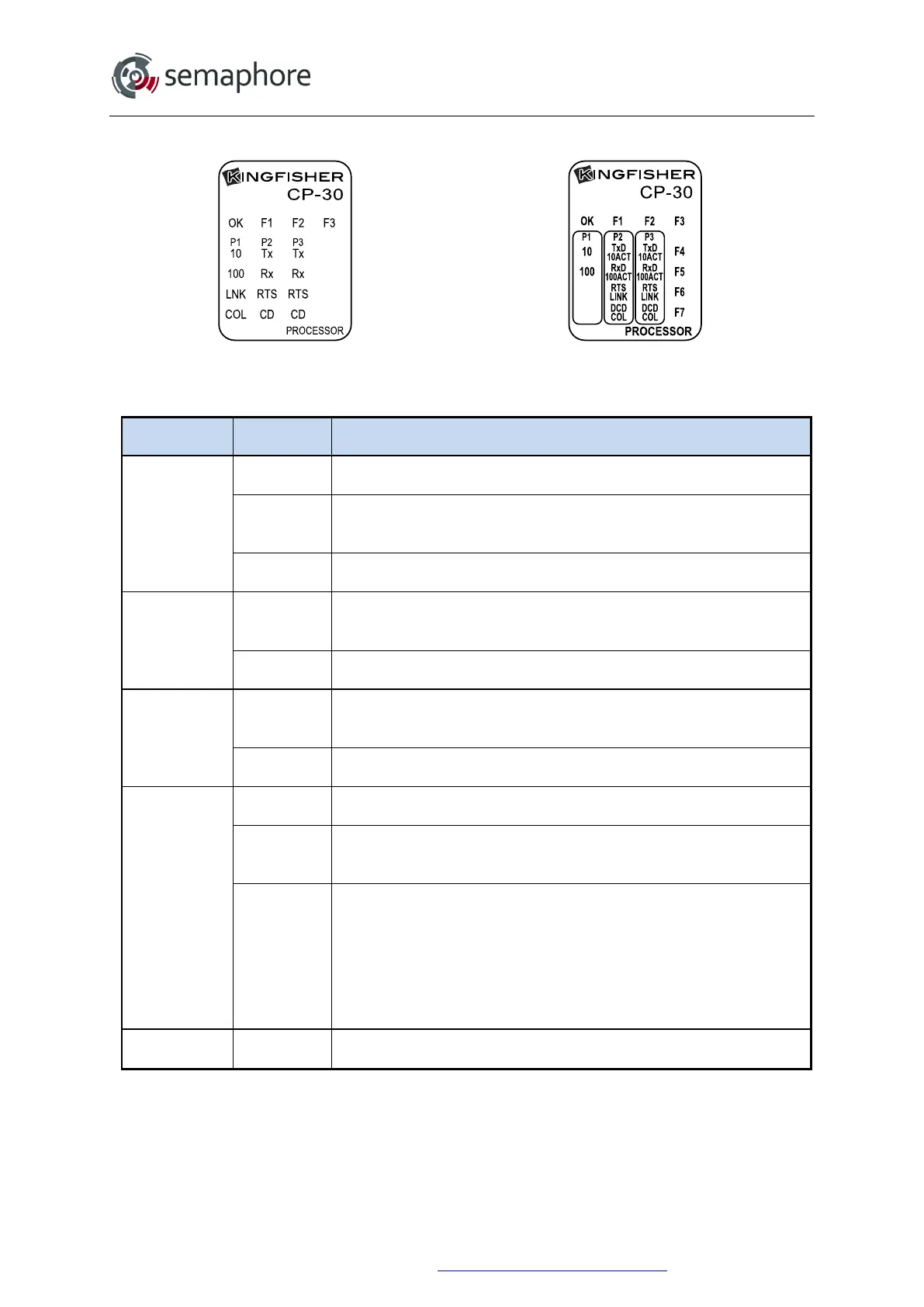

4.4.4 CP-30 Module LEDs
CP-30-xy (v1.x) CP-30-xy (v2.x)
LED State Description
OK
1,2
ON Normal operation.
0.5 s ON,
0.5 s OFF
Firmware/configuration update in progress.
OFF Power off or module faulty.
F1
1,2
0.25 s ON,
0.25 s OFF
Port 2 configuration error.
OFF Normal operation.
F2
1,2
0.25 s ON,
0.25 s OFF
Port 3 configuration error.
OFF Normal operation.
F3
1,2
ON Normal operation (active CP-30).
1 s ON,
1 s OFF
Normal operation (standby CP-30).
OFF
One of the following may be indicated:
• Module is booting up.
• Initial synchronisation with standby processor in progress.
• Module fault (ISaGRAF™ not started).
• Logic cycle is longer than normal (blinks momentarily, on active
CP-30 only).
F4 – F7
3
n/a Reserved for future use.
