Kingfisher Plus+ Hardware Manual

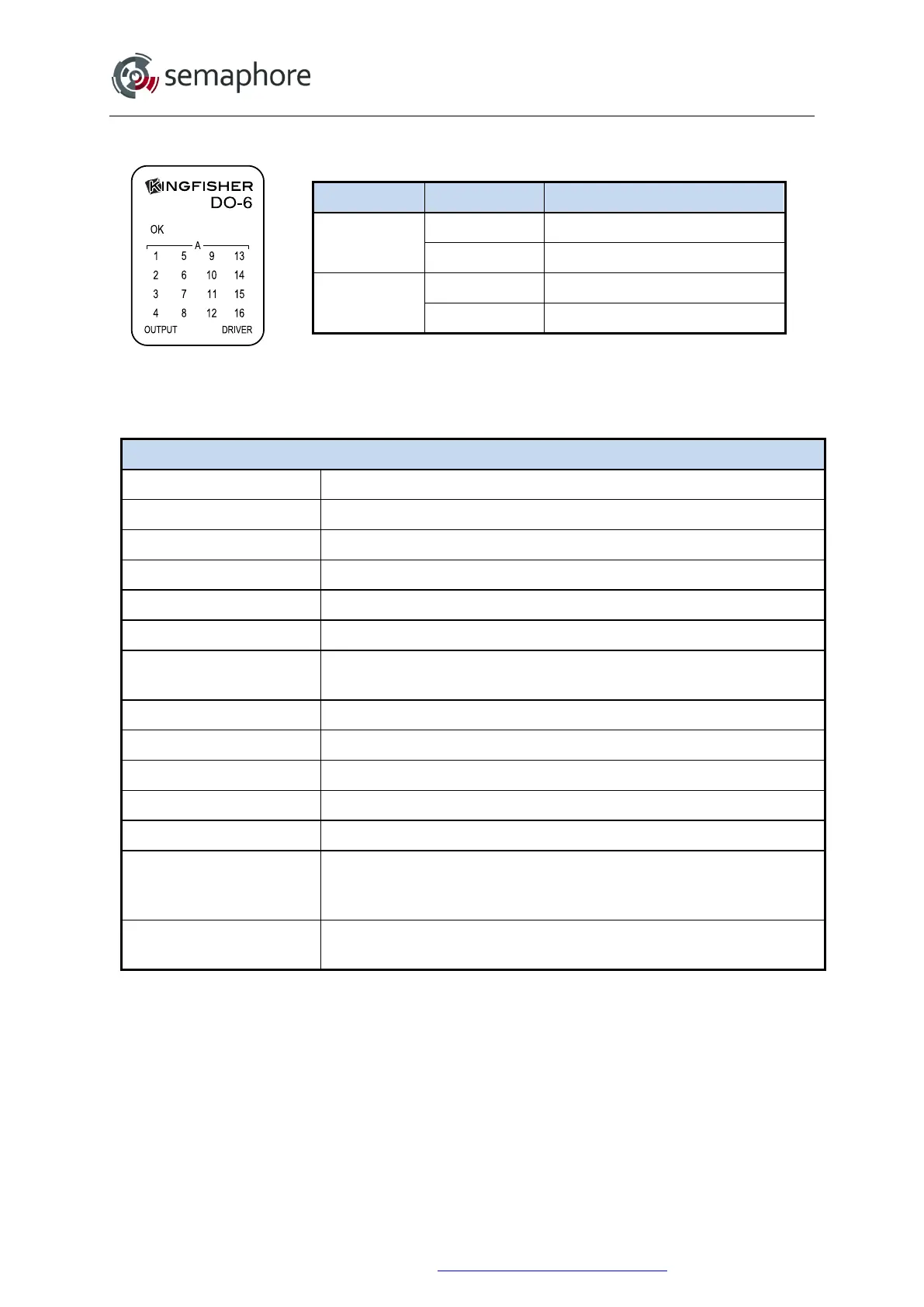

12.5.2 DO-6 Module LEDs
LED State Description
OK
OFF Module fault (no power)
ON Normal
A1-A16
OFF Digital output OFF (open)
ON Digital output ON (closed)
12.5.3 DO-6 Specifications
DO-6 Channel Open Drain Output Module Specifications
Outputs per Module 16
Commons 1
Rated Voltage 30 V
DC
maximum.
Output Type N-FET, Open Drain
Rated Load 70 mA per channel
Current Limit 90 mA per channel
Output Power
12 V
DC
non-regulated, non-isolated (supplied by module directly from
backplane), 1.6 A maximum
ON Response Time 15 ms maximum
OFF Response Time 15 ms maximum
Operating Temperature -20 to +70 °C
Storage Temperature -40 to +85 °C
Operating Humidity 5 to 95 % RH (non-condensing)
Hot Swap
Yes. Module can be swapped while RTU is running. Hot swap will not
cause a Warm Start. Outputs will be restored within 2 seconds once
module is replaced.
Compatibility
The DO-6 is functionally equivalent and pin compatible with the
superseded DO-5.
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 181
