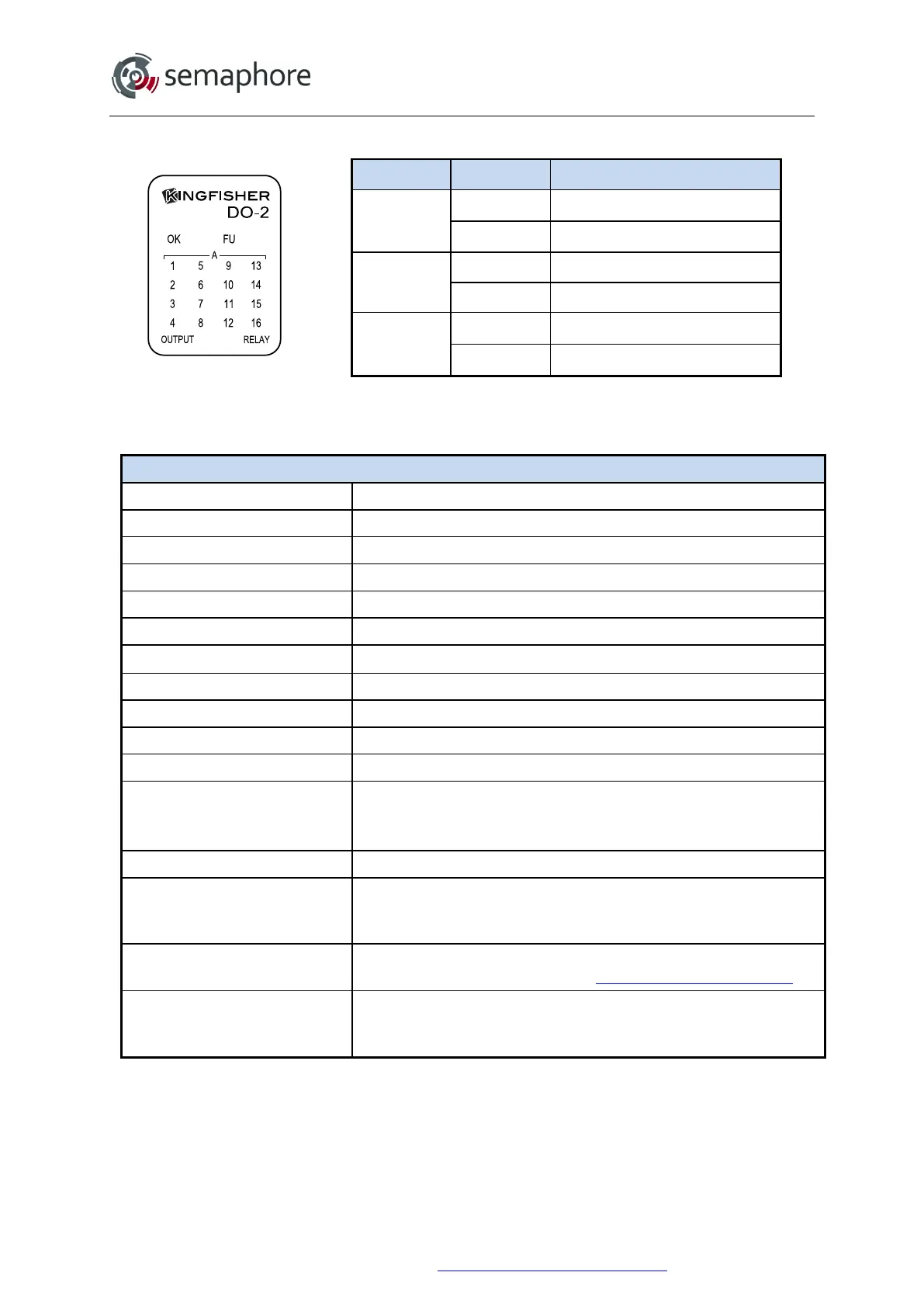

12.4.2 DO-2 Module LEDs
LED State Description
OK
OFF Module fault (no power)
ON Normal
FU
OFF Fuse OK
ON Fuse fail
1-16
OFF Digital output OFF (open)
ON Digital output ON (closed)
12.4.3 DO-2 Specifications
DO-2 16 Channel Digital Output Module Specifications
Outputs per Module 16
Commons 2
#
(each common supplies 8 outputs)
Relay Type SPST (Single Pole Single Throw, Normally Open)
Maximum Switched Voltage 30 V
DC
, 250 V
AC
#
Maximum Switched Current 5 A per common
Minimum Load 10 mA @ 5 V
DC
(wetting current)
Contact Resistance
100 mΩ maximum
Operating Temperature -20 to +70 °C
Storage Temperature -40 to +85 °C
Operating Humidity 5 to 95 % RH (non-condensing)
Altitude 2000 m max
Isolation
Maximum working voltage in respect to system earth/ground
must not exceed 250 V
AC
/ 130 V
DC
Transient voltage: 3 kV
Relay Operations 70,000 minimum at 1800 operations per hour at rated load
Fuse Monitor LED
Enabled when the common is wired to pins 10 and 20.
CAUTION! When wired, a maximum voltage of 30 V AC or DC
can be used to power the common.
Relay Part Number
Omron G6D-1A 12 V
DC
(G6D datasheet is available from http://components.omron.eu/
)
Hot Swap
Yes. Module can be swapped while RTU is running. Hot swap will
not cause a Warm Start. Outputs will be restored within 2
seconds once module is replaced.
#)
CAUTION! If input voltage is expected to exceed Safety Extra Low Voltage (SELV) levels
(DC 60 V or AC 42 V
PEAK
relative to system earth and/or ground) then both commons must
be connected to a single power source and no other power sources are allowed to be
connected to this module.
