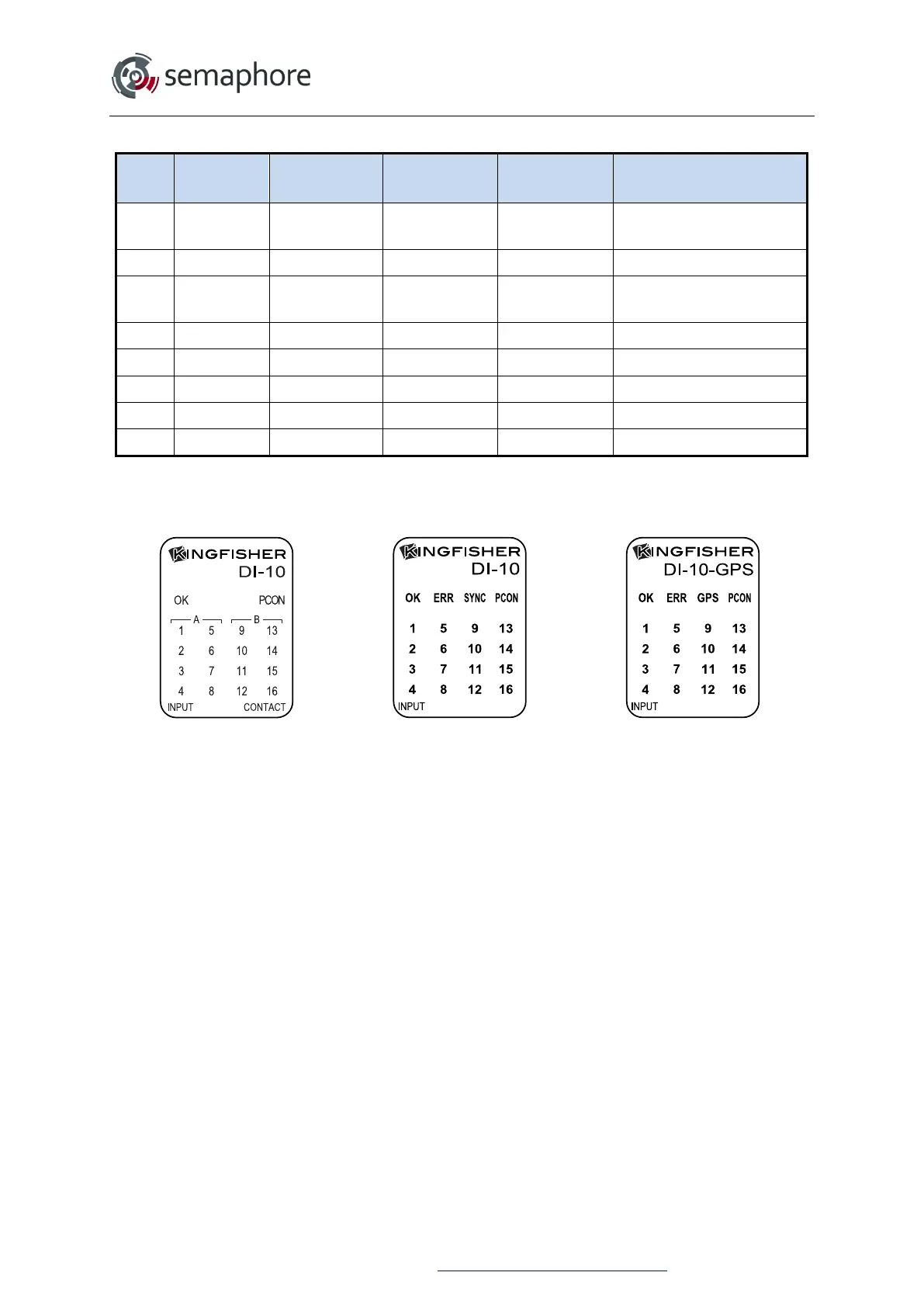

Kingfisher Plus+ Hardware Manual
RJ45
Pin
DI-10-GPS
Signal
Direction
(DI-10-GPS)
Direction
(GPS Device)
Signal Level Note
1 +12V OUT IN +12 V
Power for GPS (100 mA
max)
2 GND - - - Power & Signal Ground
3 PWR_ONn OUT IN
Open Drain to
GND
Pulled to GND: GPS ON
Floating: GPS OFF
4 Din OUT IN RS-232 Serial Data to GPS
5 Dout IN OUT RS-232 Serial Data from GPS
6 PPS IN OUT 5 V TTL Pulse Per Second
7 nc Not connected
8 nc Not connected
11.3.7 DI-10 Module LEDs
DI-10-1 [-48] (v3.2) DI-10 [-48] (v4.3) DI-10-[48]GPS (v4.3)
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 161
