Kingfisher Plus+ Hardware Manual

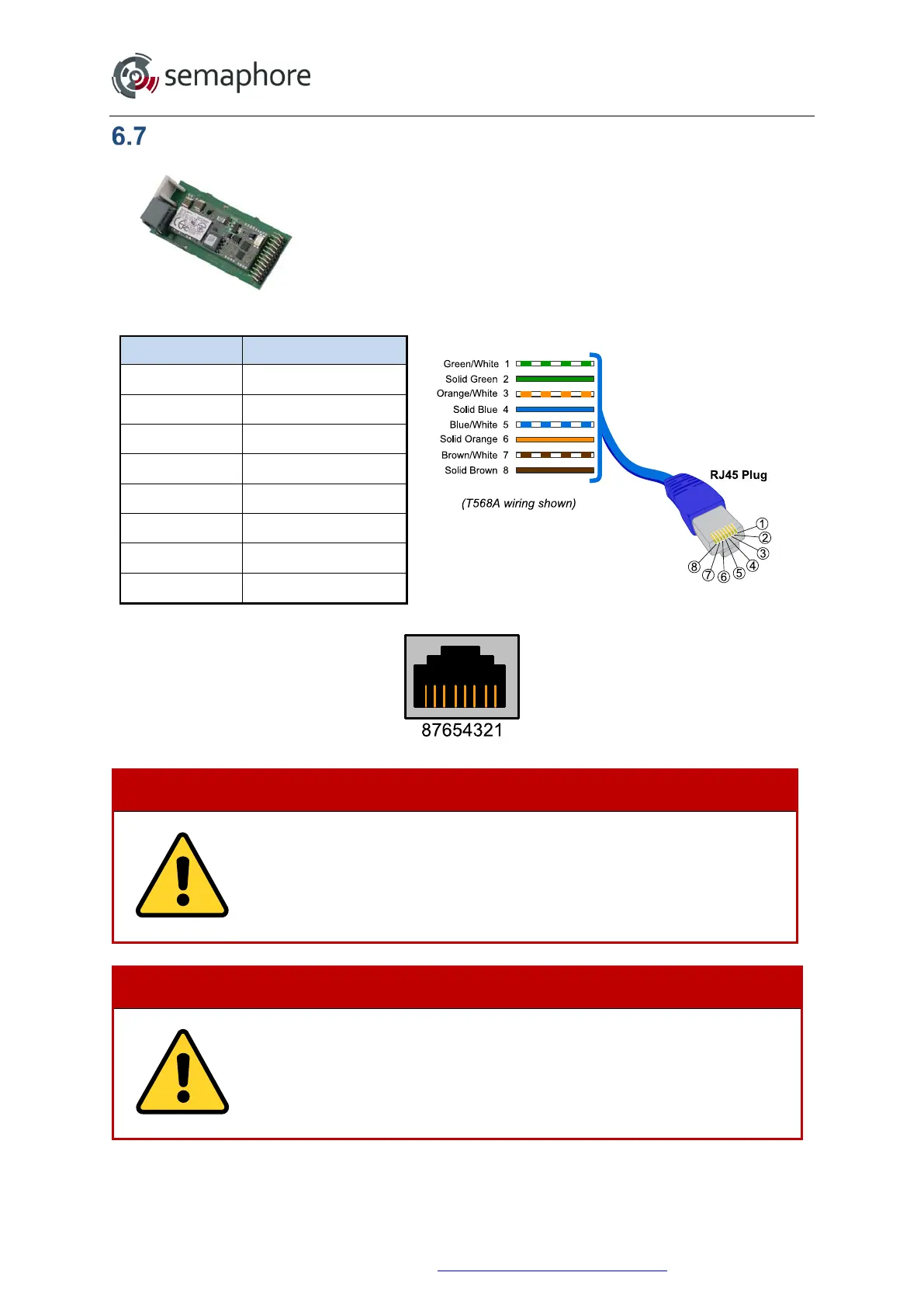

Option Board D: 33.6 kbps Dial Option Board
The dial option board provides a V34 PSTN interface to the
Kingfisher Plus+ RTU. The port speed is software configurable,
and the dial board is designed to be compliant with
telecommunications standards worldwide.
Dial Option Board Connections
RJ45 Pin PSTN Function
1 -
2 -
3 Reserved
4 Line -
5 Line +
6 Reserved
7 -
8 -
Telecommunication Line Cord
To reduce risk of fire, use only 26 AWG (0.13 mm
2
) or larger
telecommunications line cord.
Ligne de Télécommunication Cordon
Pour réduire les risques d’incendie, utilisez seulement du câble d’une
section minimale de 0.13 mm² (26 AWG) pour les connections de
télécommunications.
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 105
