Kingfisher Plus+ Hardware Manual
2.2.3 BA-6-PLUS: 6-slot Backplane
A BA-6-PLUS six-slot backplane is designed to support any power supply, IO or
communications module in any slot position. This backplane is intended to be used with a
PS-xx power supply and a CP-xx processor module or linked to any other backplane to
provide additional slots.

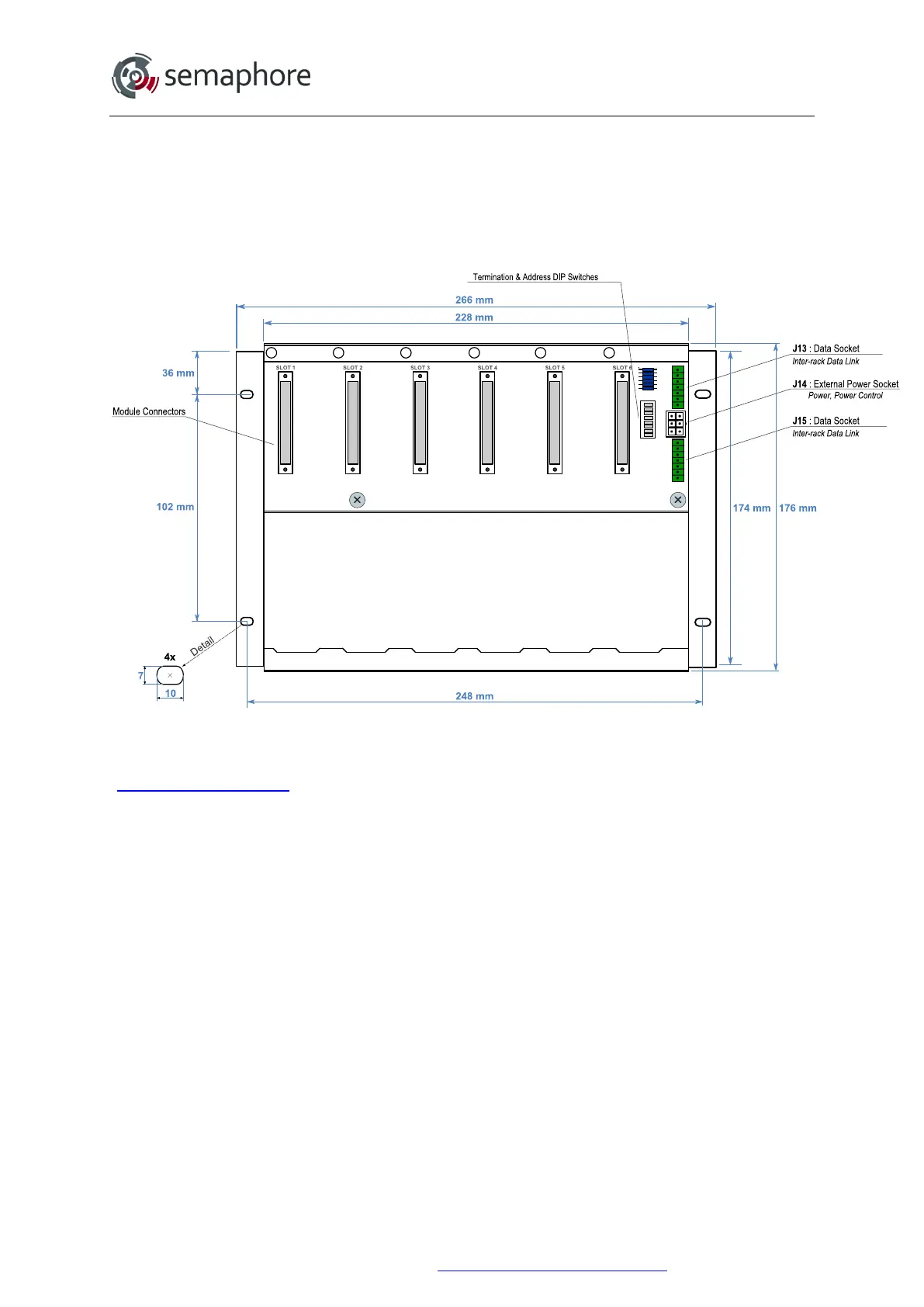

BA-6-PLUS backplane
For information on the BA-6-PLUS backplane connectors please refer to the
“Backplane Connectors
” section below.
