Kingfisher Plus+ Hardware Manual

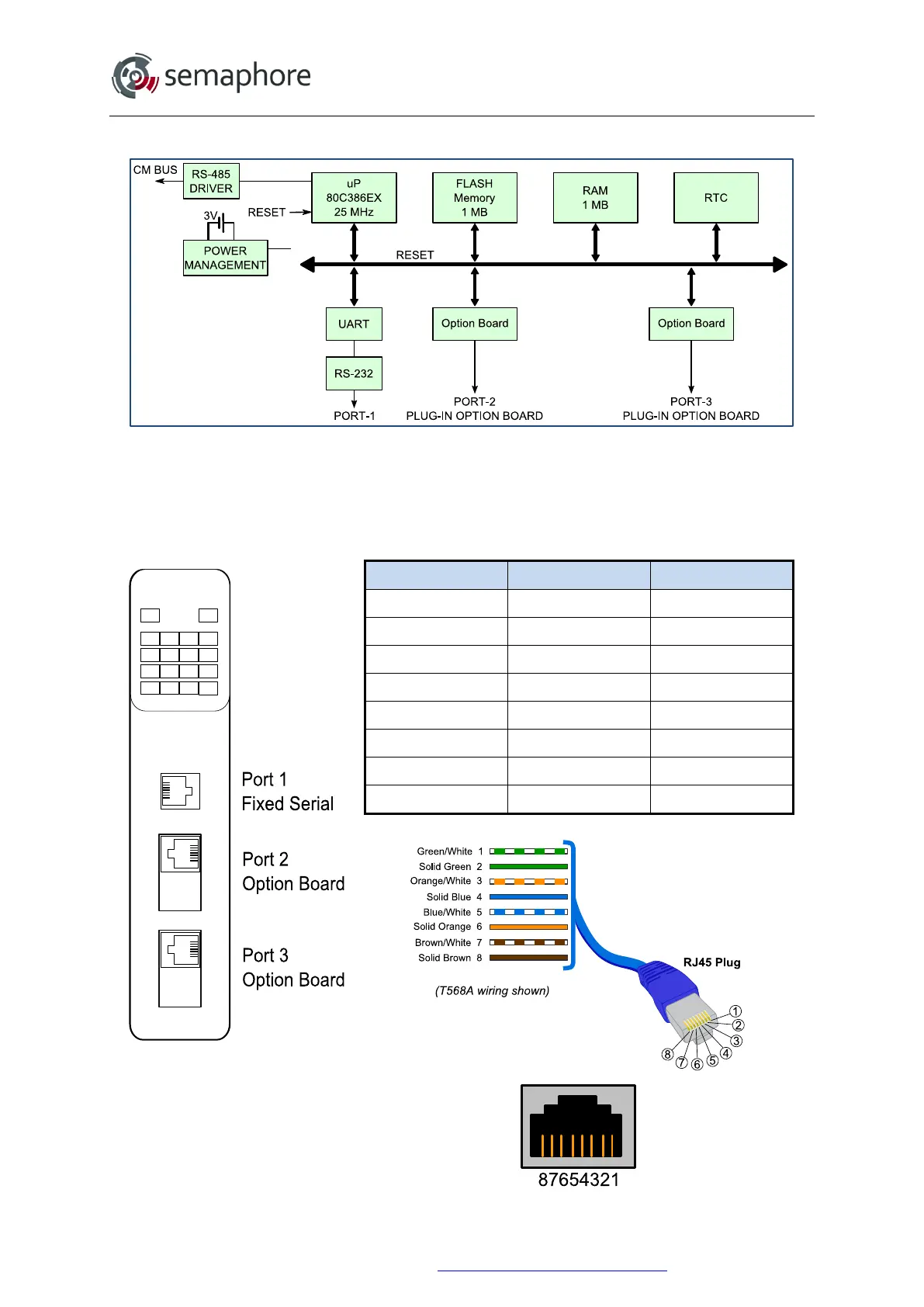

5.2.4 MC-10/11/30 Block Diagram
5.2.5 MC-10/11/30 Ports
The MC-10/11/30 module features up to three serial ports accessible by RJ45 connectors on
the front of the module and covered by the snap on cable cover. Port 1 is at the top for
RS232 connections only. Port 2 and 3 can be configured using plug-in option boards.
Port 1 Pins Direction RS232 signal
1 OUT DTR
2 - n/c
3 OUT RTS
4 IN DCD
5 COM GND (0 V)
6 IN CTS
7 IN RxD
8 OUT TxD
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 84
