Kingfisher Plus+ Hardware Manual

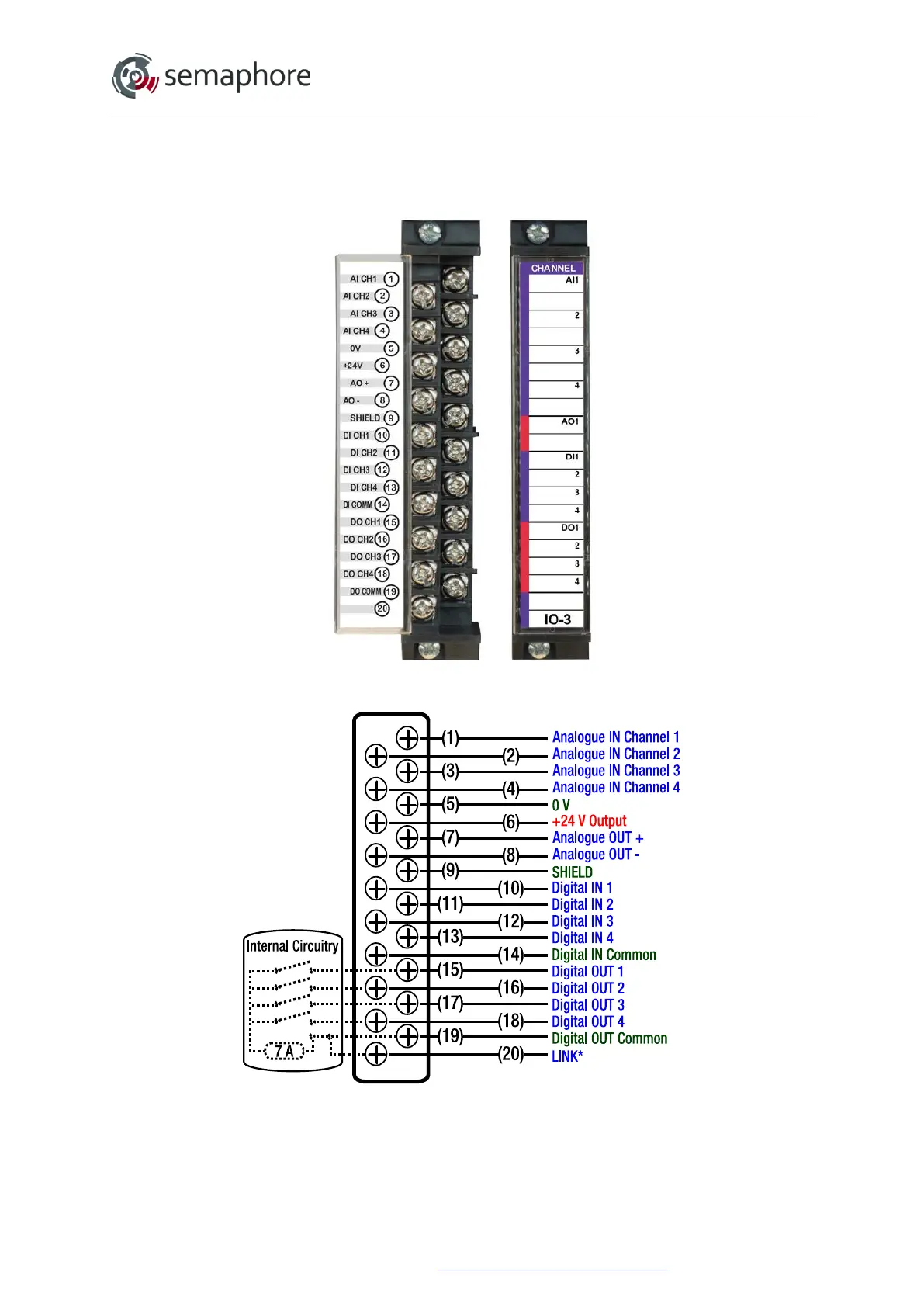

14.2.4 IO-3 Wiring Diagram
The insert in the hinged cover of the terminal strip has circuit wiring information. Circuit
identification information can be recorded on the outside surface of the insert.
Note: Link terminal can be optionally connected to the Digital OUT Common terminal to enable the
Fuse Monitor LED (FU).
CAUTION: when the link is installed a maximum of 30 V (AC or DC) can be used to power
the common.
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 207
