Kingfisher Plus+ Hardware Manual
DIGITAL OUTPUTS
Outputs per Module 8
Commons 1 (common supplies all 8 outputs)
Relay Type SPST (Single Pole Single Throw)
Maximum Switched
Voltage
30 V
DC
, 42 V
AC
Maximum Switched
Current
5 A per common
Isolation 3 kV coil to contacts
Minimum Load 10 mA @ 5 V
DC
Contact Resistance
100 mΩ maximum
Relay Operations 70,000 minimum at 1800 operations per hour at rated load
Relay Part Number
Omron G6D-1A 12 V
DC
(G6D datasheet is available from http://components.omron.eu/
)
CAUTION! Contacts should be protected with appropriate suppression devices when wired with
inductive loads to increase the service life of relays (please see the "Switching Inductive Loads"
section for more details). Contacts should also be protected with external fusing.

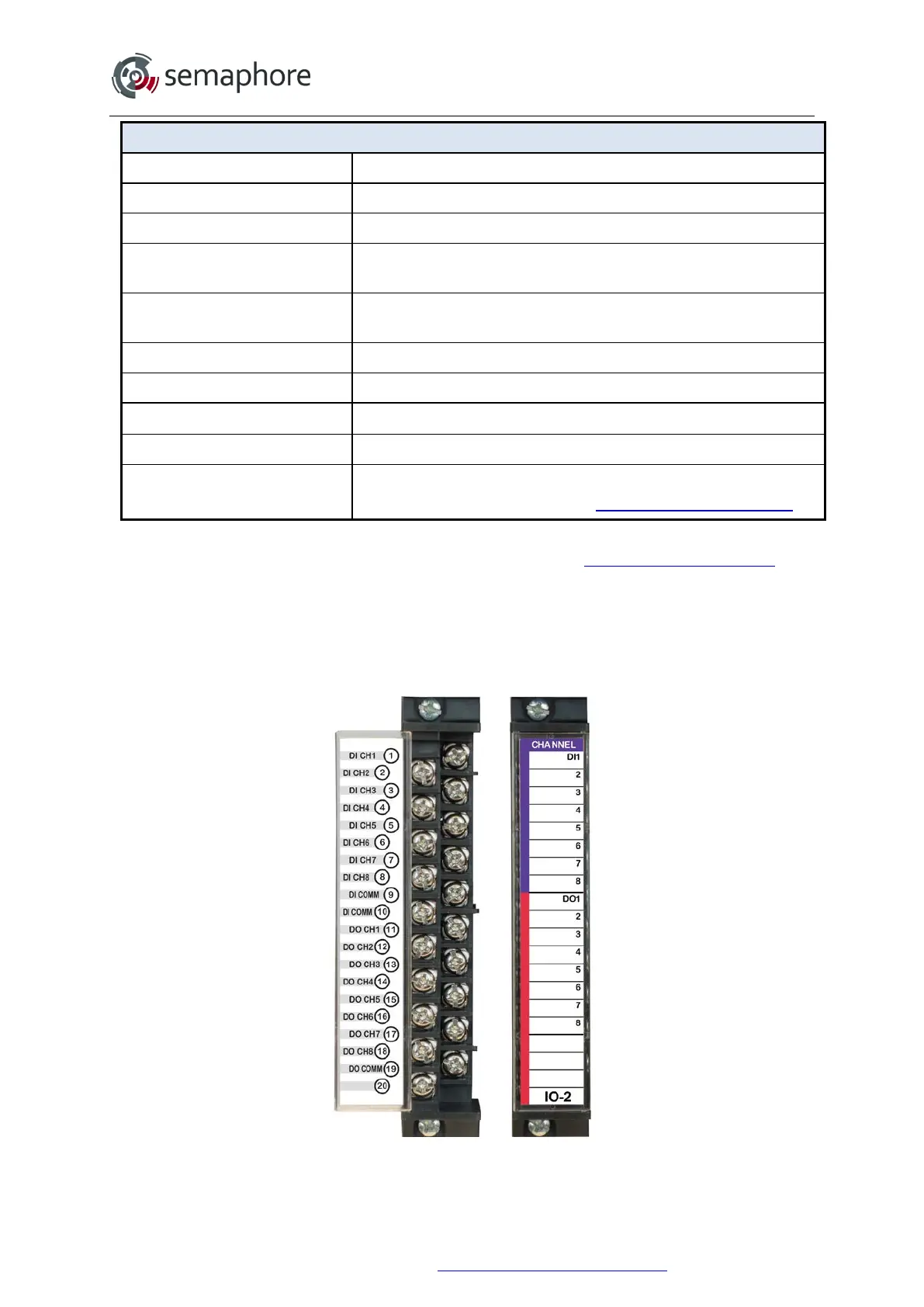

14.1.4 IO-2 Wiring Diagram
The insert in the hinged cover of the terminal strip has circuit wiring information. Circuit
identification information can be recorded on the outside surface of the insert.
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 200
