Kingfisher Plus+ Hardware Manual

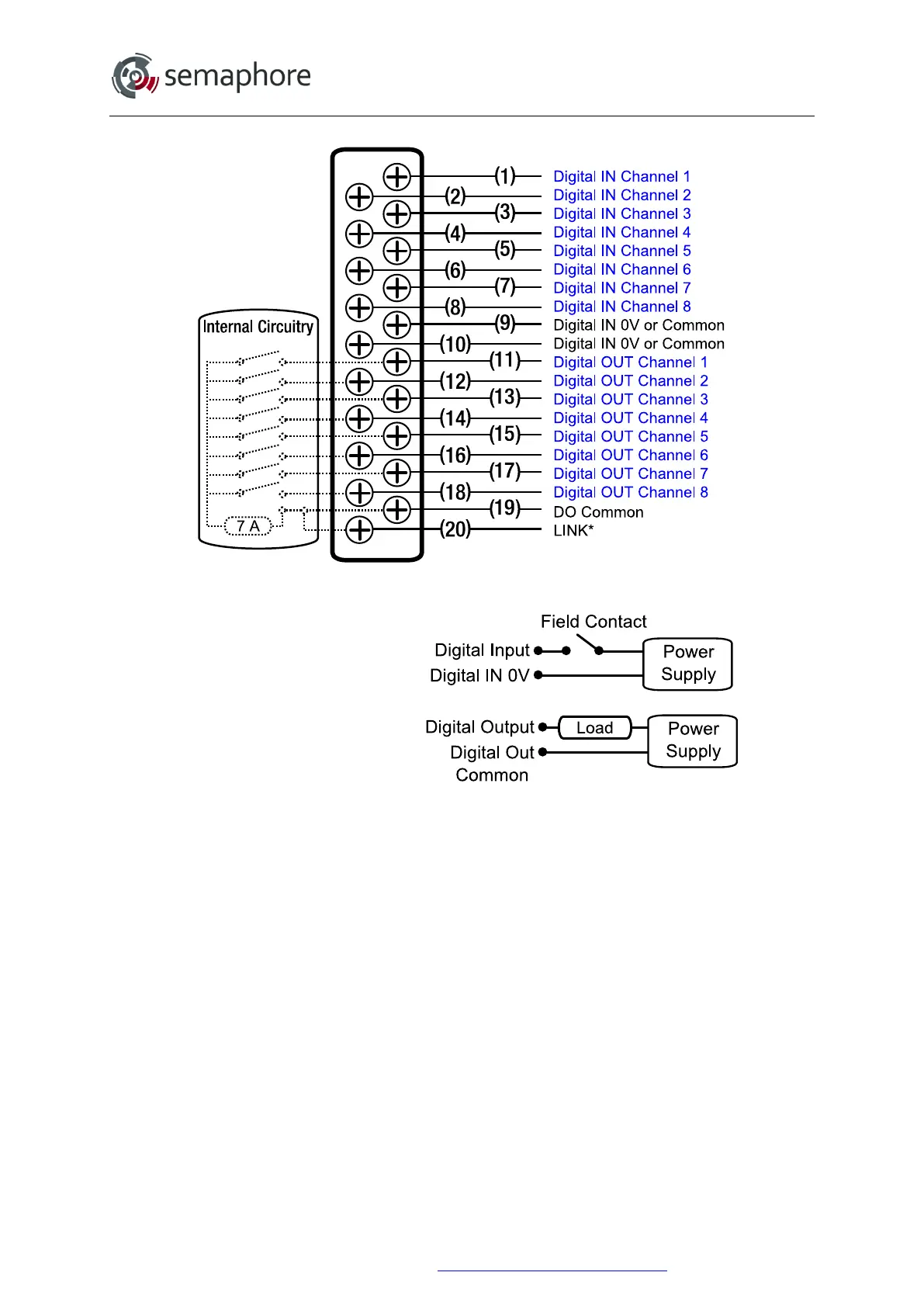

Digital Input Example:
(Note polarity can be
reversed on power supply)
Digital Output Example:
* Optional link for DC Supply only. Enables fuse fail LED ‘FU’ on module.
CAUTION: when the link is installed a maximum of 30 V (AC or DC) can be used to power
the common.
Note: DC powered inputs and low voltage AC inputs can both be used on the same module.
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 201
