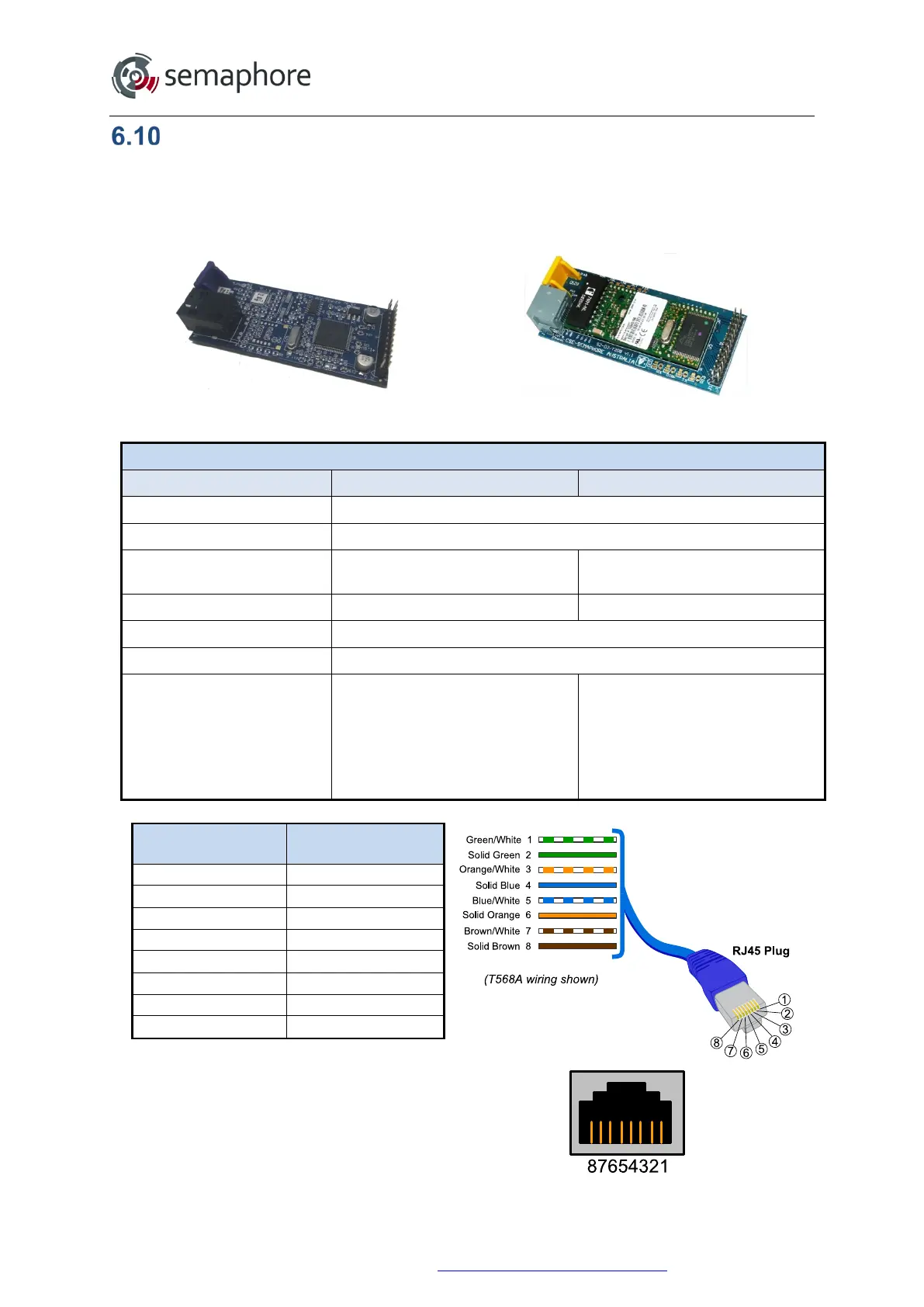

Kingfisher Plus+ Hardware Manual
Option Boards T3 & T2: 10/100 Ethernet Controller
The Ethernet Option Boards provide full duplex Ethernet connectivity over UTP cables. The
option boards feature automatic speed and MDI/MDI-X negotiation. Technical specifications
of the T3 (currently in production) and T2 (superseded product) Ethernet Option Boards are
described below.
Ethernet Option Board T3
Ethernet Option Board T2
Ethernet Option Board Specifications
Parameter
T3 Option Board
T2 Option Board
Connection Speed
10/100 Mbps (auto negotiated)
Connection Durability
Approximately 750 cycles
Power Consumption
300 mA
(from +5 VDC Bus on backplane)
310 mA
(from +5 VDC Bus on backplane)
Operating Temperature
-40 to +85 °C -20 to +70 °C
Operating Humidity
5 to 95 % RH (non-condensing)
Storage Temperature
-40 to +85 °C
Compatibility
Can be installed in any of the
following ports:
CP-11/12/30 Port 2 or Port 3
MC-11/12/31 Port 2 or Port 3
LP-2 Port 4
LP-3 Port 3 or Port 4
Can be installed in any of the
following ports:
CP-30 Port 2 or Port 3
MC-30/31 Port 2 or Port 3
Port 1 Pins
Ethernet
Function
1
Tx+
2
Tx-
3
Rx+
4
n/c
5
n/c
6
Rx-
7
n/c
8
n/c
