Kingfisher Plus+ Hardware Manual
18. APPENDIX A: SYSTEM INSTALLATION
Superseded items are not present in this hardware manual.
For information regarding any modules not present in this document please refer to the
Superseded Products Manual available on Semaphore Helpdesk
.
To avoid fire hazards and exposure to electrical shock and other safety hazards, all
instructions listed below must be followed.
Enclosure Requirements
All components of a Kingfisher Plus+ RTU shall be installed inside of an enclosure providing
safety and environmental protection as required. The enclosure shall be made from metal or
other material with a flammability rating of V-0 or better in accordance with the requirements
of the IEC 60950-1 standard for a fire enclosure. An enclosure not required to prevent a fire
hazard if the RTU is installed above concrete or another non-combustible surface.

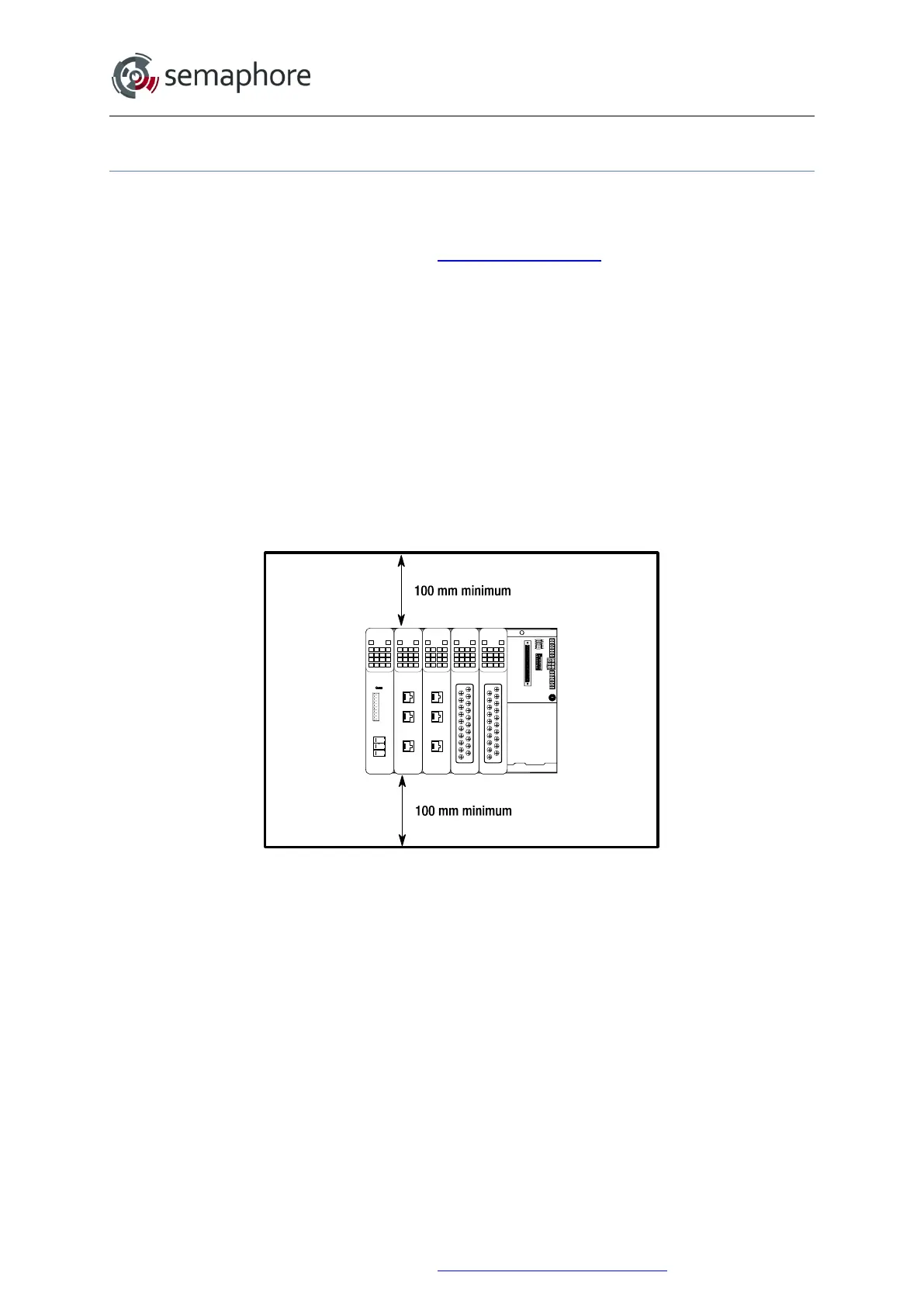

An RTU shall be mounted with all modules in a vertical position as illustrated below. The
enclosure must provide sufficient clearances for conventional air cooling, with a minimum
clearance of 100 mm between the RTU modules and the top and bottom of the enclosure:
