Kingfisher Plus+ Hardware Manual
2.2.4 BA-12-PLUS: 12-slot Backplane
A BA-12-PLUS twelve-slot backplane is designed to support any power supply, IO or
communications module in any slot position. It is intended to be used with a PS-xx power
supply and a CP-xx processor module or linked to any other backplane to provide additional
slots.

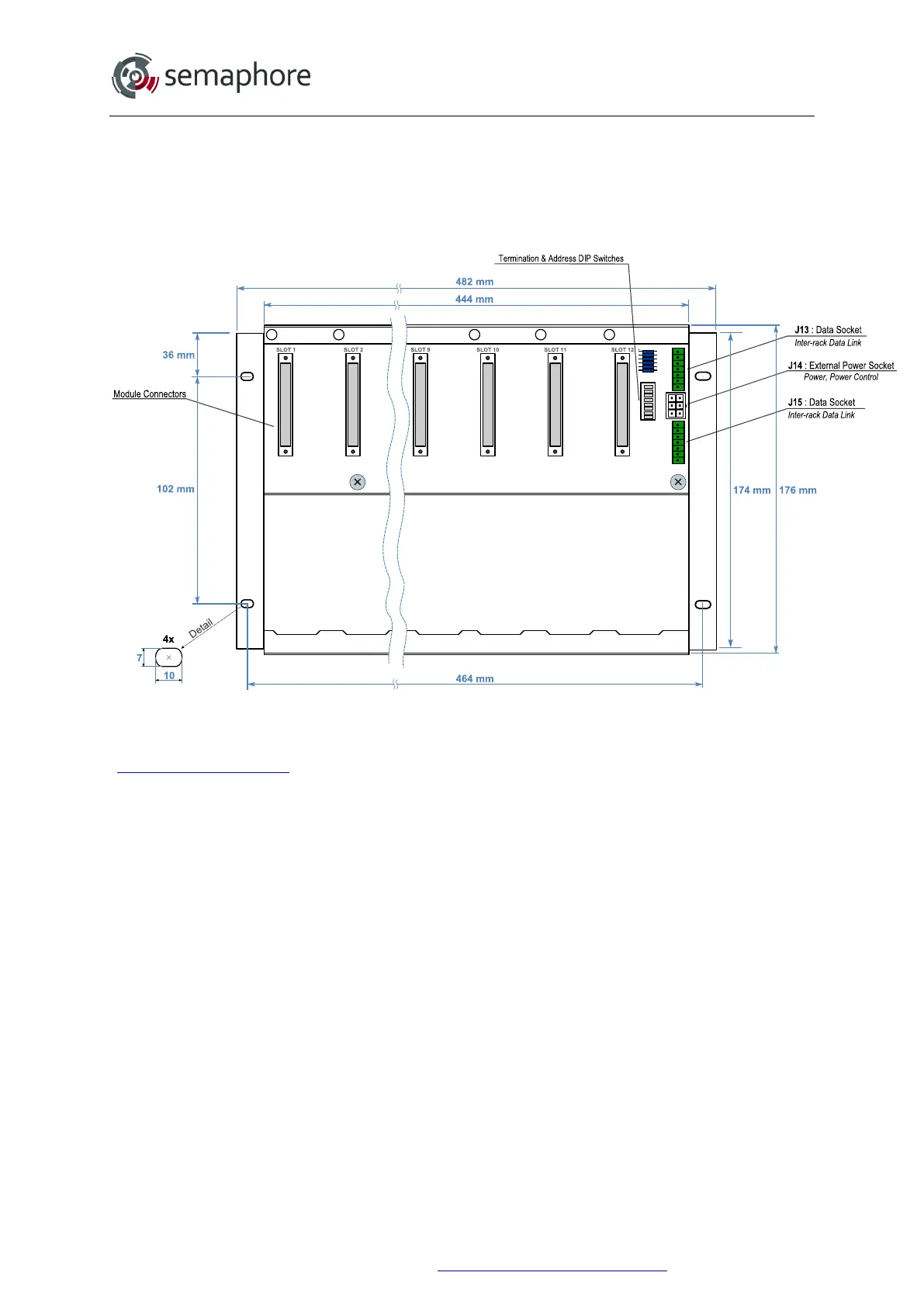

BA-12-PLUS backplane
For information on the BA-12-PLUS backplane connectors please refer to the
“Backplane Connectors
” section below.
