Kingfisher Plus+ Hardware Manual

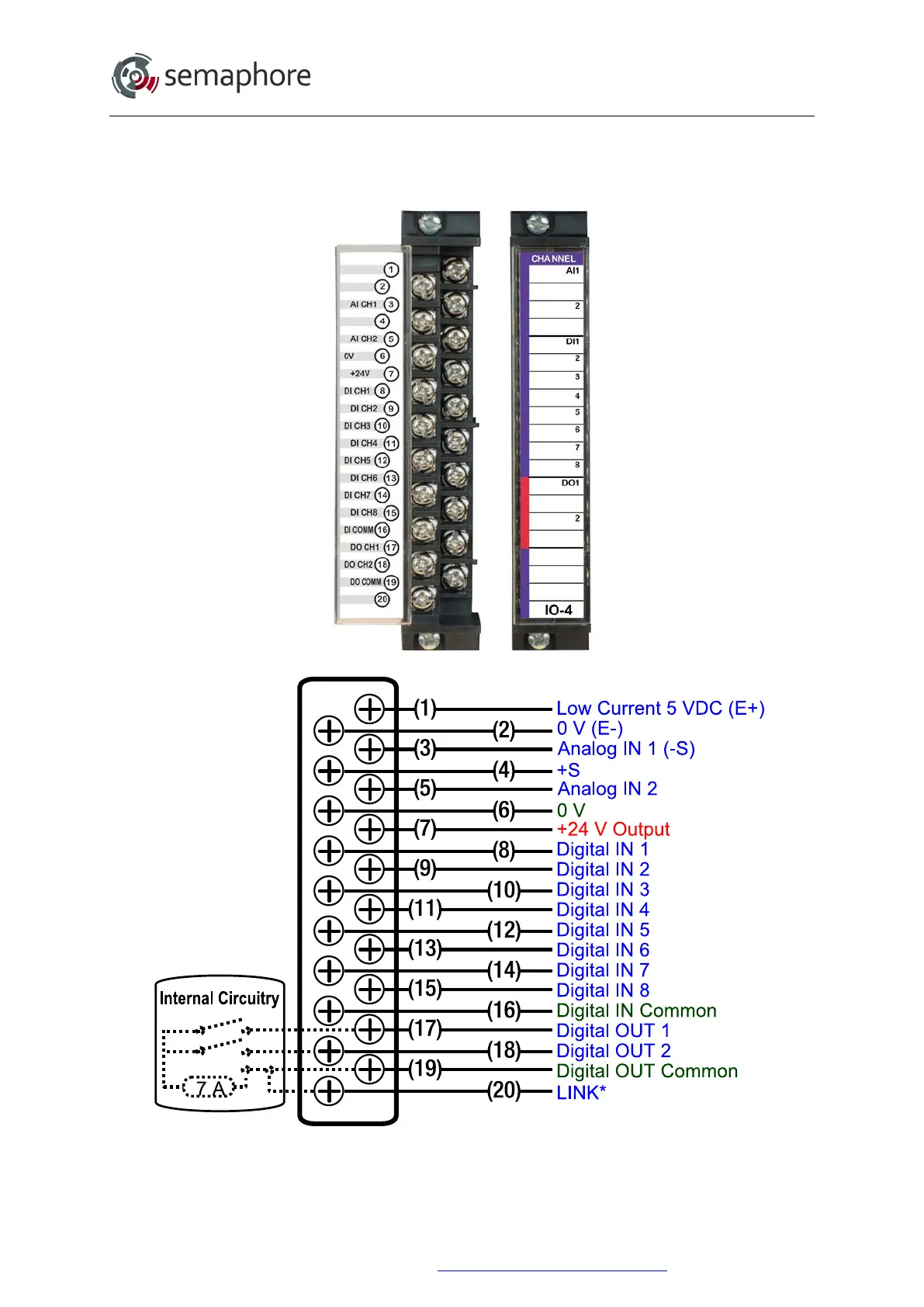

14.3.4 IO-4 Wiring Diagram
The insert in the hinged cover of the terminal strip has circuit wiring information. Circuit
identification information can be recorded on the outside surface of the insert.
* Optional link for DC Supply only. Enables fuse fail LED ‘FU’ on module.
CAUTION! When the link is installed, a maximum voltage of 30 V (AC or DC) can be used to
power the common.
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 215
