Kingfisher Plus+ Hardware Manual
Device Cables and Adaptors

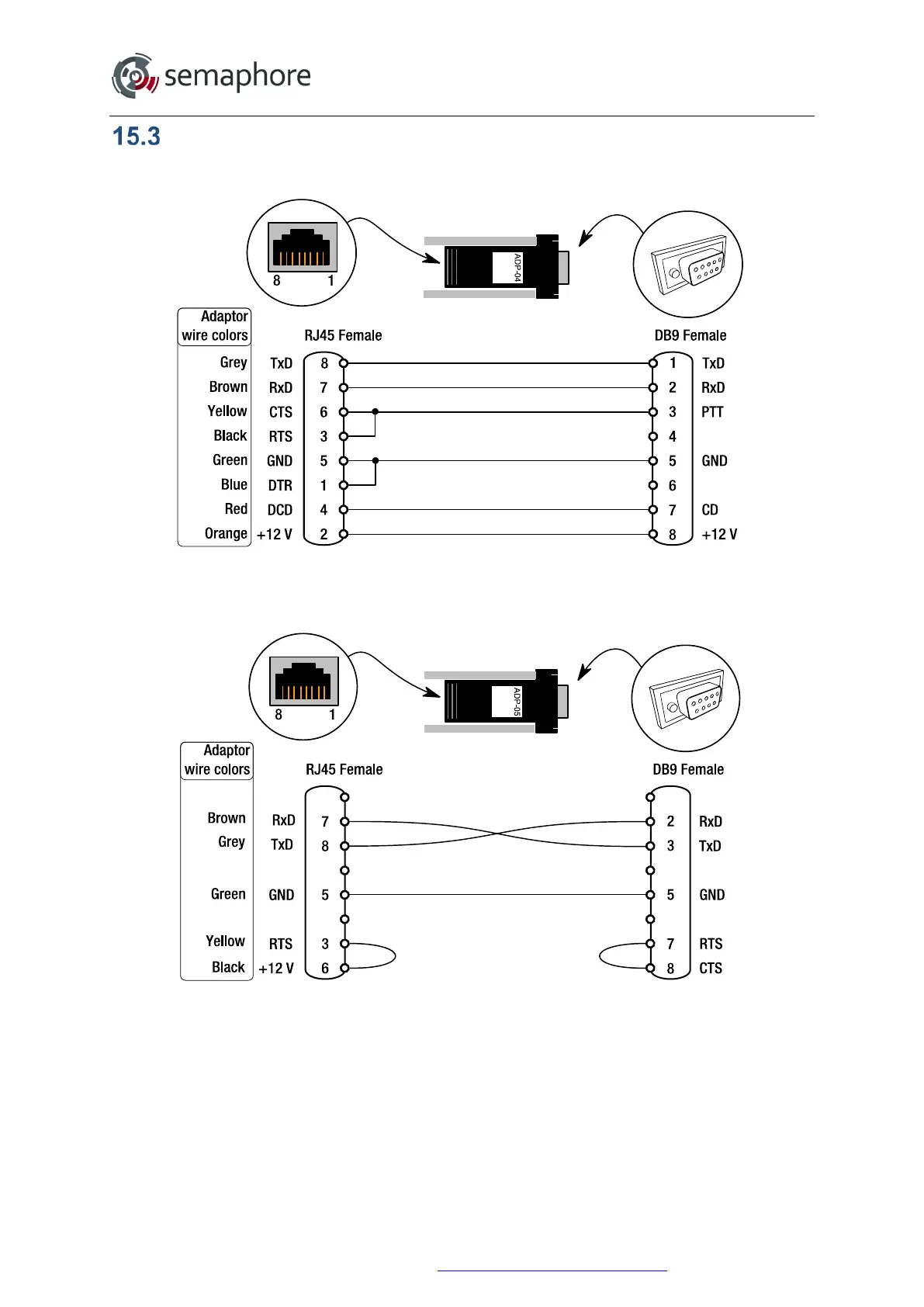

ADP-04: PC-1/MC-1 Radio Port to Tait T2010 or Maxon RDM-01 Radio (SD125)
RJ45 to Kingfisher RTU Radio Port
To Tait 2010 or Maxon RDM-01 radio
ADP-05: RTU Serial Port to PC Serial Port (creates a null modem cable)
To Kingfisher Serial Port
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 228
