Kingfisher Plus+ Hardware Manual

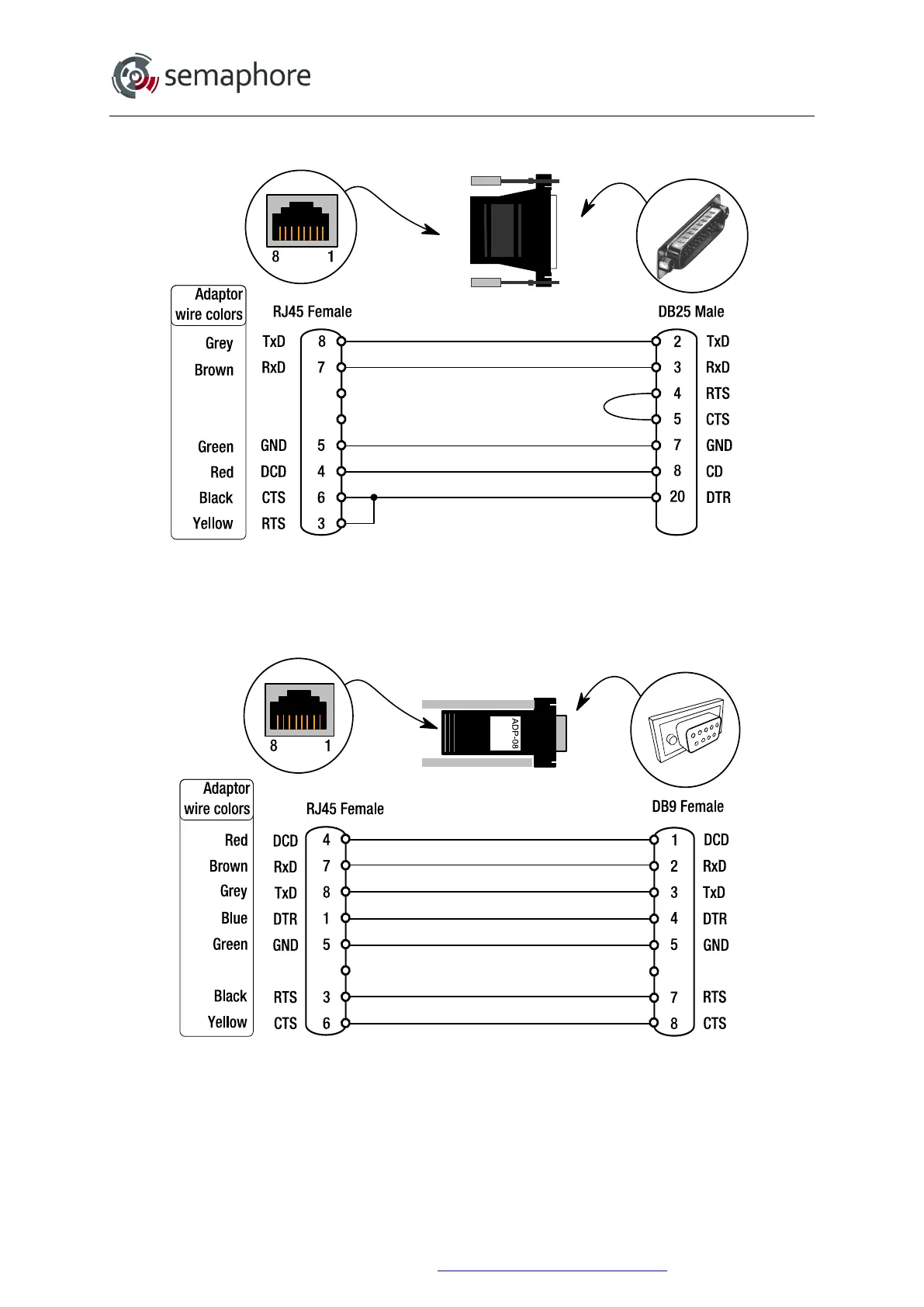

ADP-07: RTU Serial Port to External PSTN Modem
To Kingfisher Serial Port
To PSTN Modem
ADP-08: RJ45 to DB9 Female Converter (Straight Connect)
(Note: when coupled with an ADP-05 forms a null modem cable DB9 female to DB9 female)
To Kingfisher Serial Port
To External Device
