Kingfisher Plus+ Hardware Manual

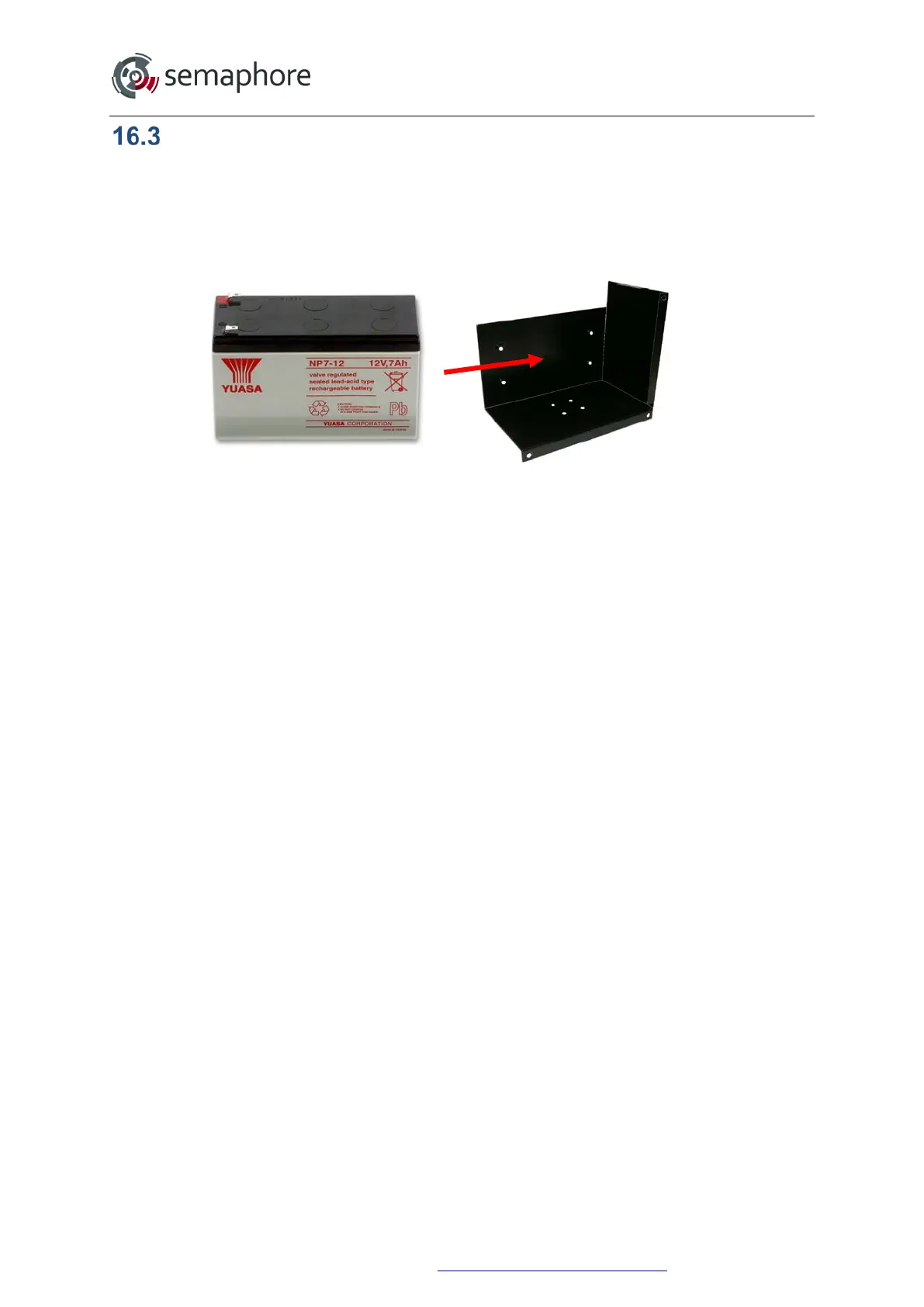

Battery Bracket: 7 Ah Battery Mounting Bracket
When using a 7 Ah backup battery, a standard battery holder is available for mounting on an
enclosure gear plate. The bracket supports the battery and allows a General Power Outlet
(GPO) to be mounted on the front using M3 x 10 mm pan head screws. The battery holder
also allows an ISB50LN lightning arrester to be mounted underneath.
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 241
