Kingfisher Plus+ Hardware Manual
Communications Option Boards codes:
Code Short Description Code Short Description
0 No Option Board installed L Private Line 2/4 Wire, FSK, 1200 Baud
A
1
Ethernet, Fibre Optic, 10/100 Mbps R2 Spread Spectrum Radio 900 MHz (AU)
A3 Ethernet, Fibre Optic, 10/100 Mbps R3 Spread Spectrum Radio 2.4 GHz
D PSTN Modem, 38.4 kbps R4 Spread Spectrum Radio 900 MHz (US)
F Serial Fibre Optic T
1
Ethernet, Copper, 10/100 Mbps
H HART Interface T2
1
Ethernet, Copper, 10/100 Mbps
I Serial Isolated RS232/422/485 T3 Ethernet, Copper, 10/100 Mbps
I2 Dual Isolated Serial RS232/422/485
Notes:
1
) Discontinued products.

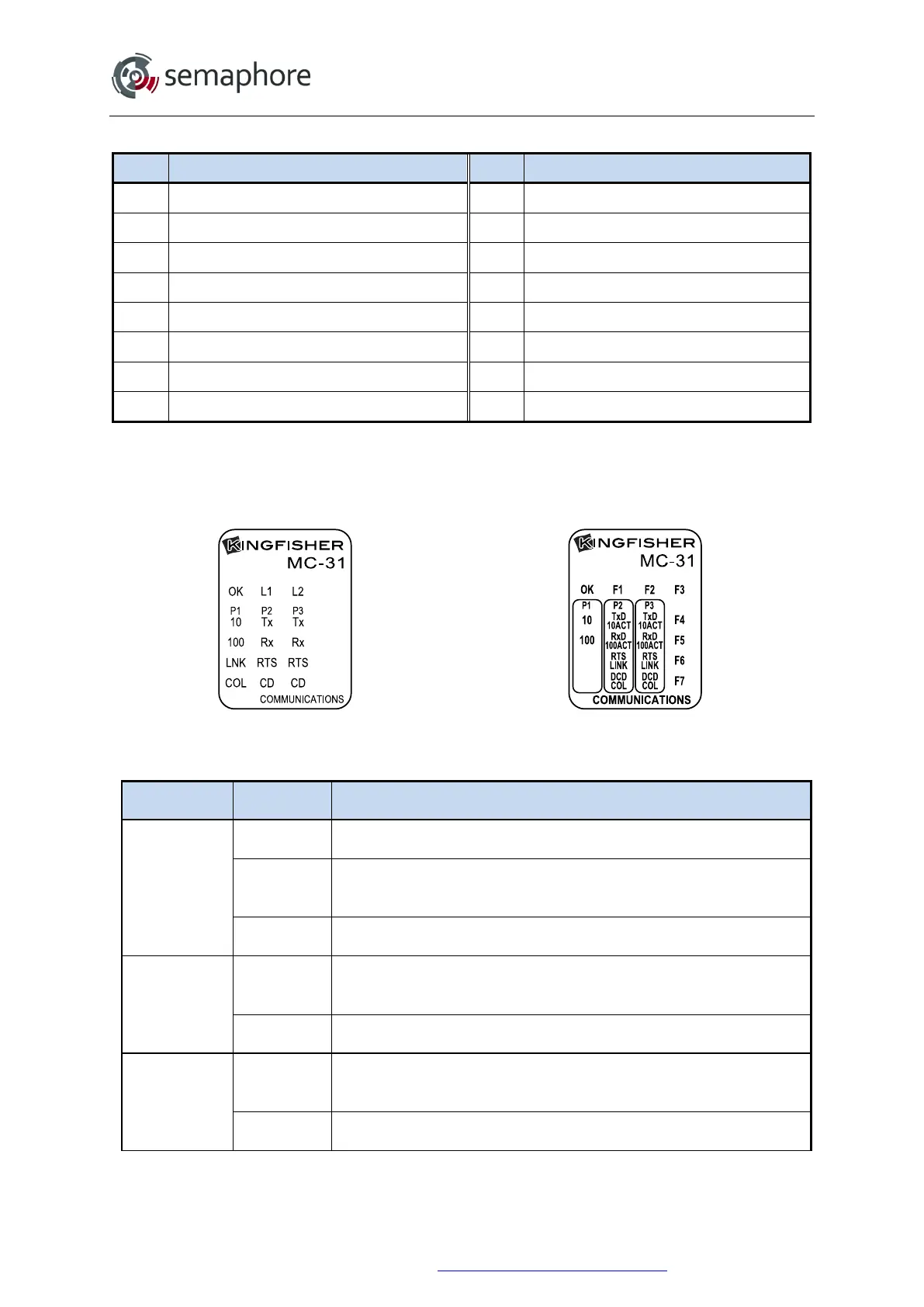

5.4.3 MC-31 Module LEDs
MC-31-xy (v1.x)
MC-31-xy (v2.x)
LED State Description
OK
1,2
ON Normal operation.
0.5 s ON,
0.5 s OFF
Firmware/configuration update in progress.
OFF Power off or module faulty.
F1
1,2
0.25 s ON,
0.25 s OFF
Port 2 configuration error.
OFF Normal operation.
F2
1,2
0.25 s ON,
0.25 s OFF
Port 3 configuration error.
OFF Normal operation.
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 90
