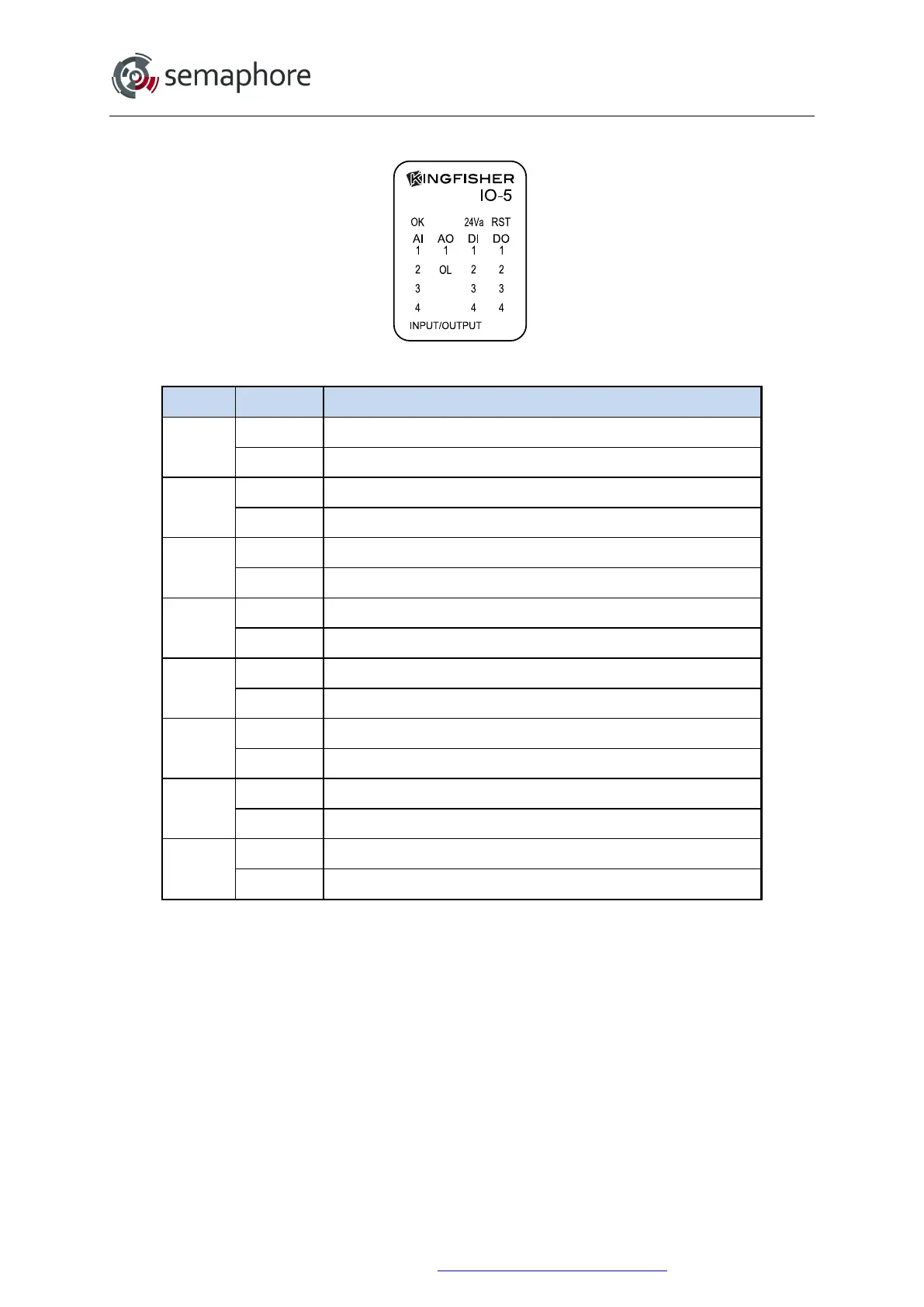

14.4.2 IO-5 Module LEDs
LED State Description
OK
OFF Module fault (no power)
ON Normal
RST
OFF Normal
ON Module Reset in progress
24Va
OFF Field Power disabled
ON Field Power enabled
AI 1-4
OFF Analogue input is less or equal to 1% of range
ON Analogue input is greater than 1% of range
AO1
OFF Analogue output is set to less or equal to 1% of range
ON Analogue output is set to greater than 1% of range
OL
OFF Analogue output line is closed (loaded)
ON Analogue output line is open / loop current equal to zero
DI 1-4
OFF Digital input OFF
ON Digital input ON
DO 1-4
OFF Digital output OFF (Output switch does not conduct)
ON Digital output ON (Output switch conducts)
