Kingfisher Plus+ Hardware Manual

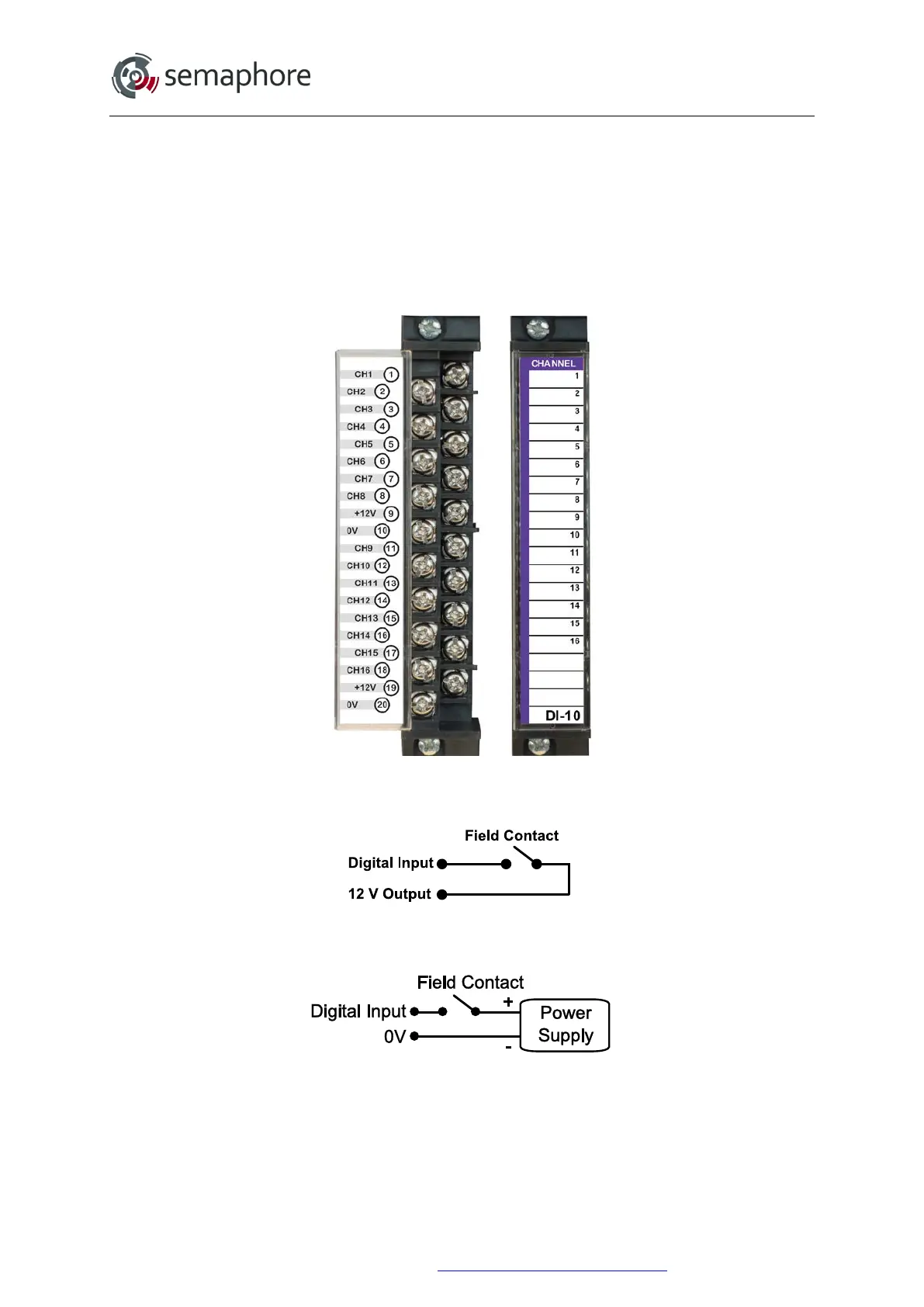

11.3.9 DI-10 Wiring Diagram
An edge-pluggable terminal block Fujicon F5021 is used for wiring of Digital Inputs and
power outputs to the DI-10 module PCB. It can be un-coupled from the DI-10 board for
wiring convenience if required.
The insert in the hinged cover of the terminal strip has circuit wiring information. Circuit
identification information can be recorded on the outside surface of the insert.
Note 1. Pins 9 and 19 (+12V) are connected together internally.
Note 2. Pins 10 and 20 (0V) are connected together internally.
Powered by Module
External DC Power Supply
Note: DC voltage applied to any input channel must be positive in respect to 0V.
