Kingfisher Plus+ Hardware Manual

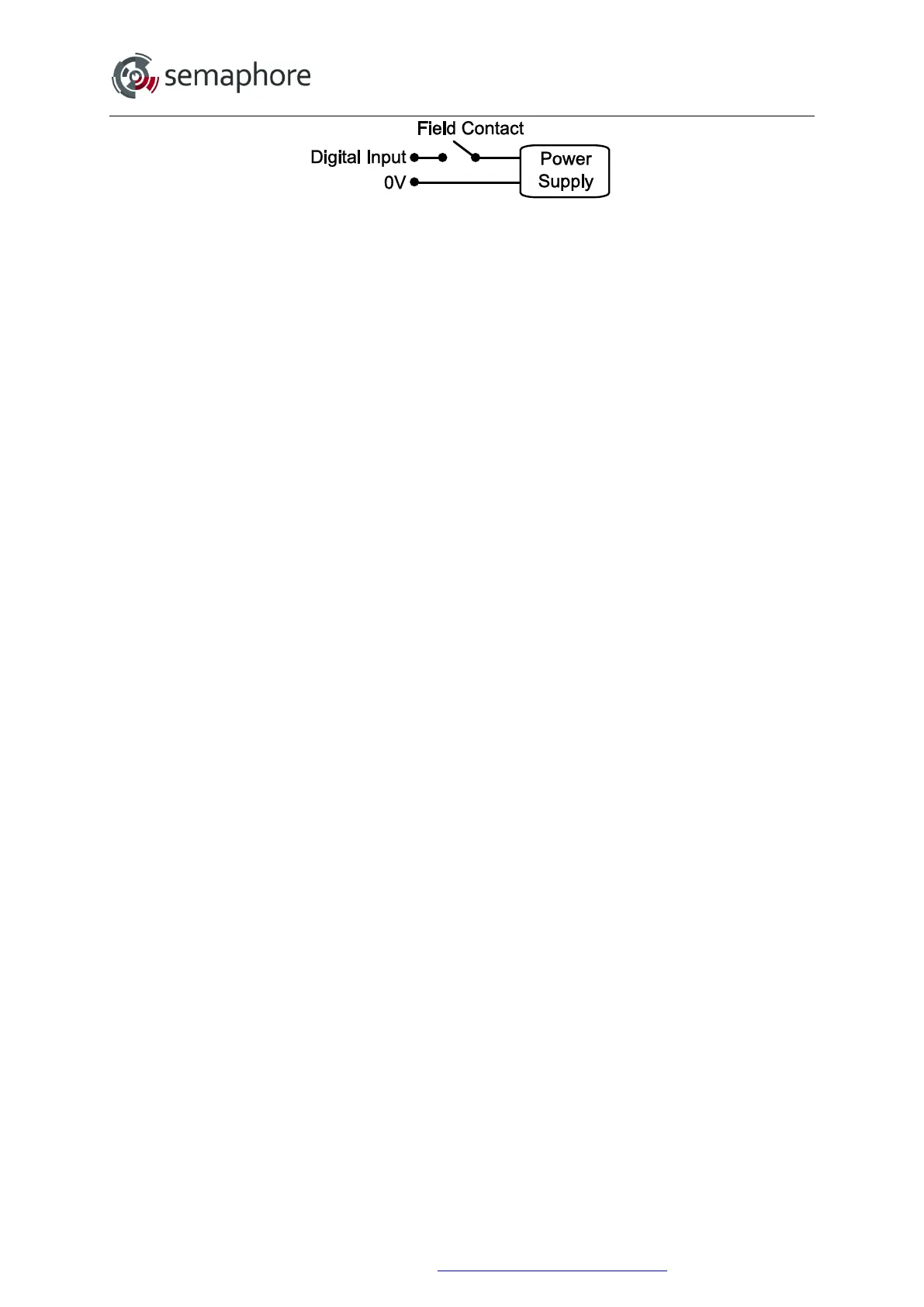

External AC Power Supply
Note: AC filter must be enabled in the DI-10 configuration for this channel.
DC and AC powered inputs can be used simultaneously on the same module. Care should
be taken to ensure that the negative rail of each external power supply is connected to the
Common (0V) terminal.
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 167
