Kingfisher Plus+ Hardware Manual

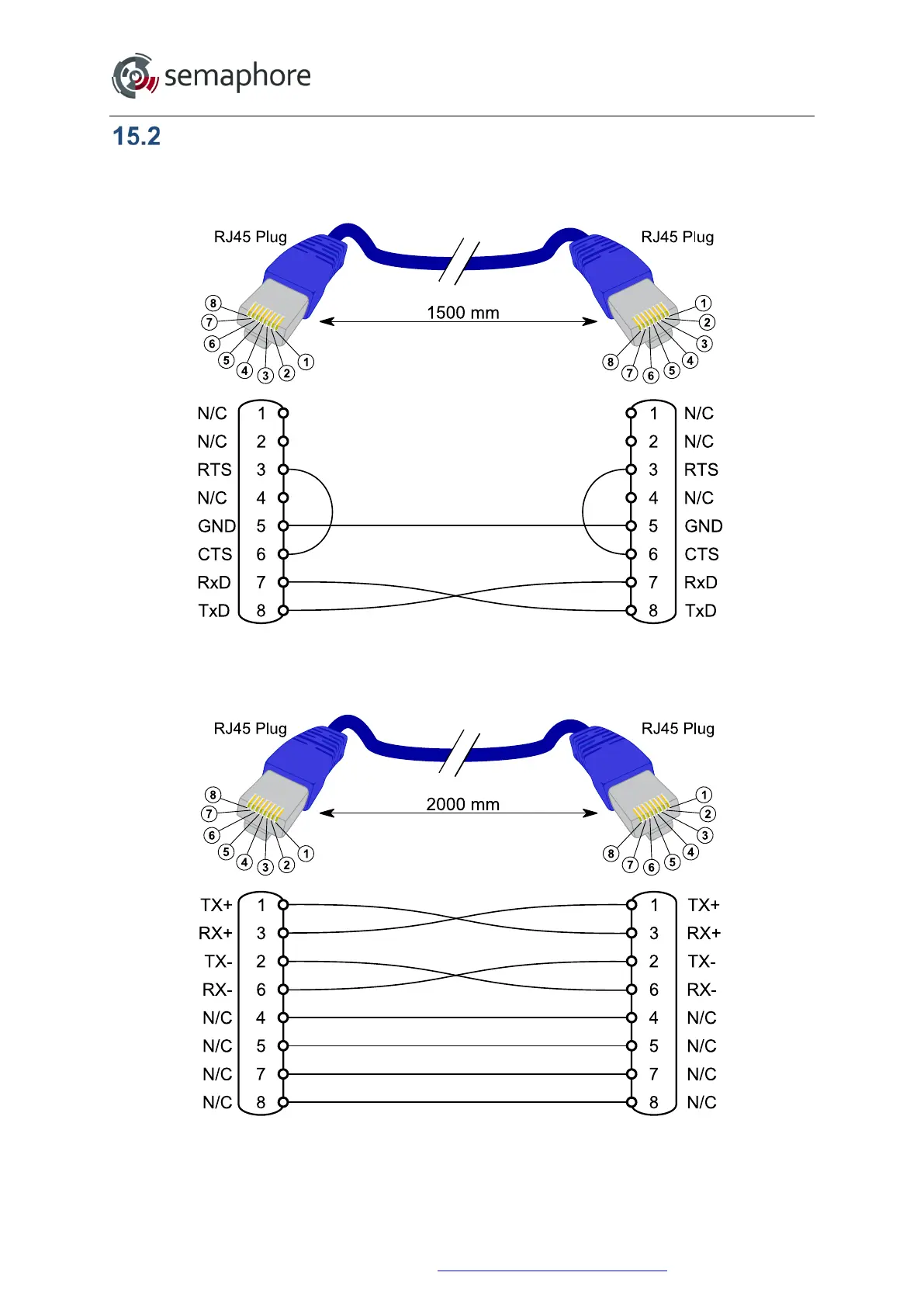

RTU Test Cables
RJC-X-OVER: Kingfisher Plus+ RJ45 to RJ45 RS-232 Null Modem Cable (serial
crossover)
RJ45 to Kingfisher RTU Serial Port
RJ45 to Kingfisher RTU Serial Port
RJC-ETHER-X-OVER: Kingfisher Plus+ RJ45 to RJ45 Ethernet Crossover Cable
RJ45 to Kingfisher RTU Ethernet Port
RJ45 to Kingfisher RTU Ethernet Port
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 227
