Kingfisher Plus+ Hardware Manual
Note: DC powered inputs and low voltage AC inputs can both be used on the same module.

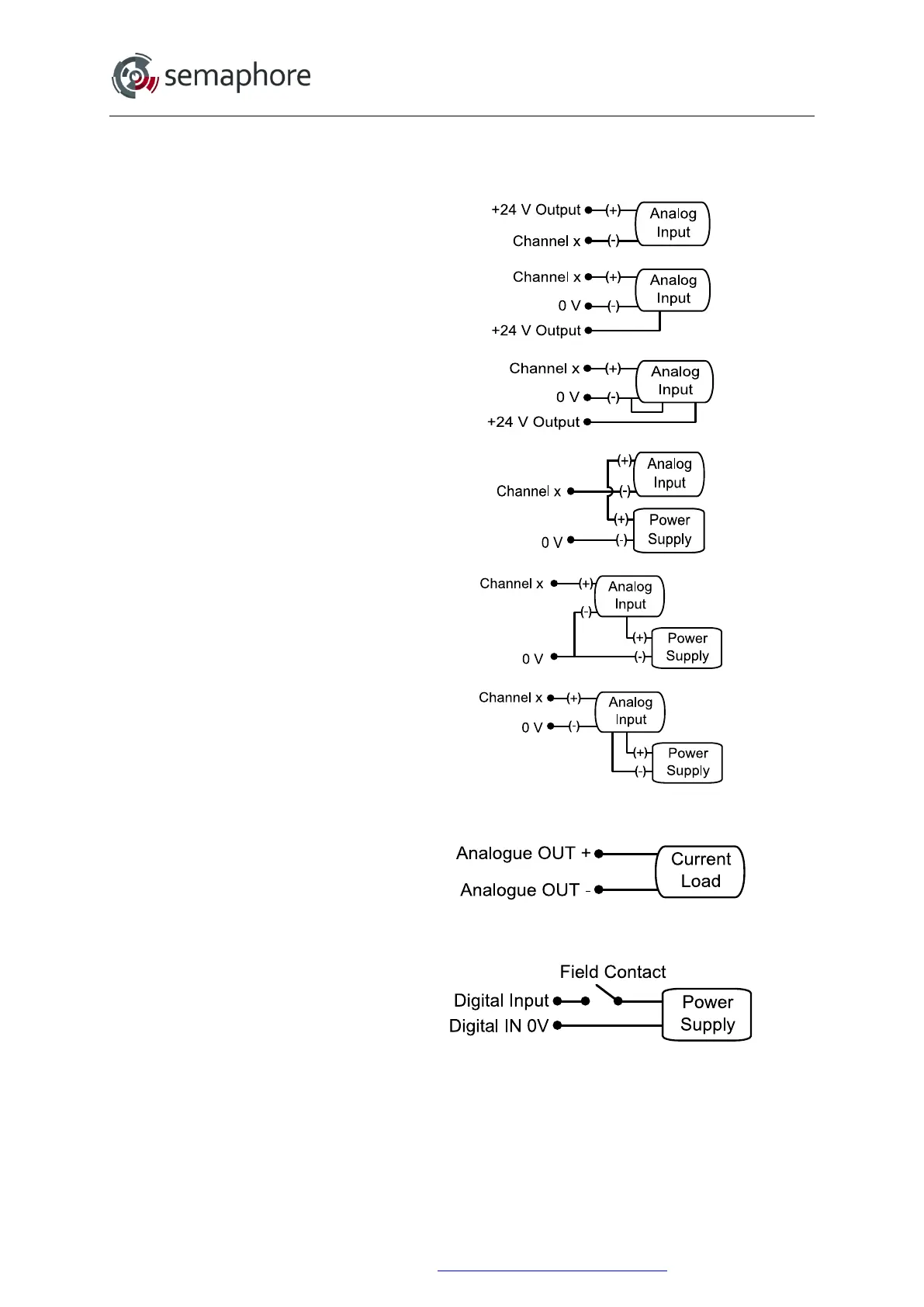

Analogue Input Examples
2 wire transmitter
(powered by module)
3 wire transmitter
(powered by module)
4 wire transmitter
(powered by module)
2 wire transmitter
(powered externally)
3 wire transmitter
(powered externally)
4 wire transmitter
(powered externally)
Analogue Output Example
Analogue load
Digital Input Example
Sensing the output form a field
contact
