Kingfisher Plus+ Hardware Manual
Note: Link terminals can be optionally connected to the adjacent Common terminals to enable the
Fuse Monitor LED (FU).
Caution: A maximum of 30 V (AC or DC) can be used to power the common if the link is installed.

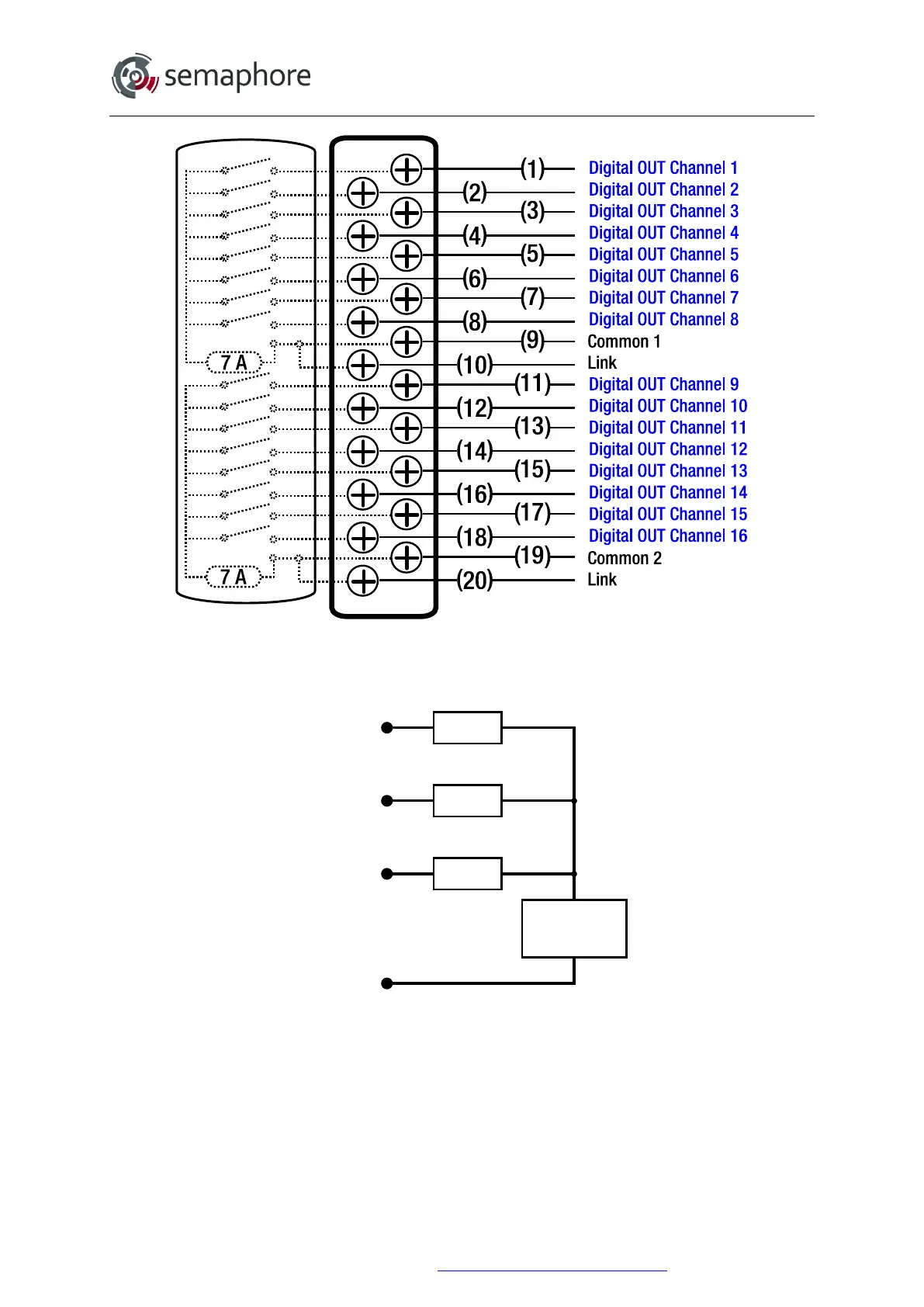

Wiring Example
Notes:
1. Polarity can be reversed.
2. For safety reasons, do not connect more than one power source to a Digital Out Common
terminal.
3. If power supply voltage exceeds SELV levels (DC 60 V or AC 42 V
PEAK
relative to
system earth and/or ground) then both Common Terminals of the module must be
connected to a single power source and no other power sources can be connected to
the same module.
LOAD Z
LOAD Y
Channel Z
Channel Y
Common
Power
Supply
+
_
LOAD X
Channel X
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 179
