Kingfisher Plus+ Hardware Manual

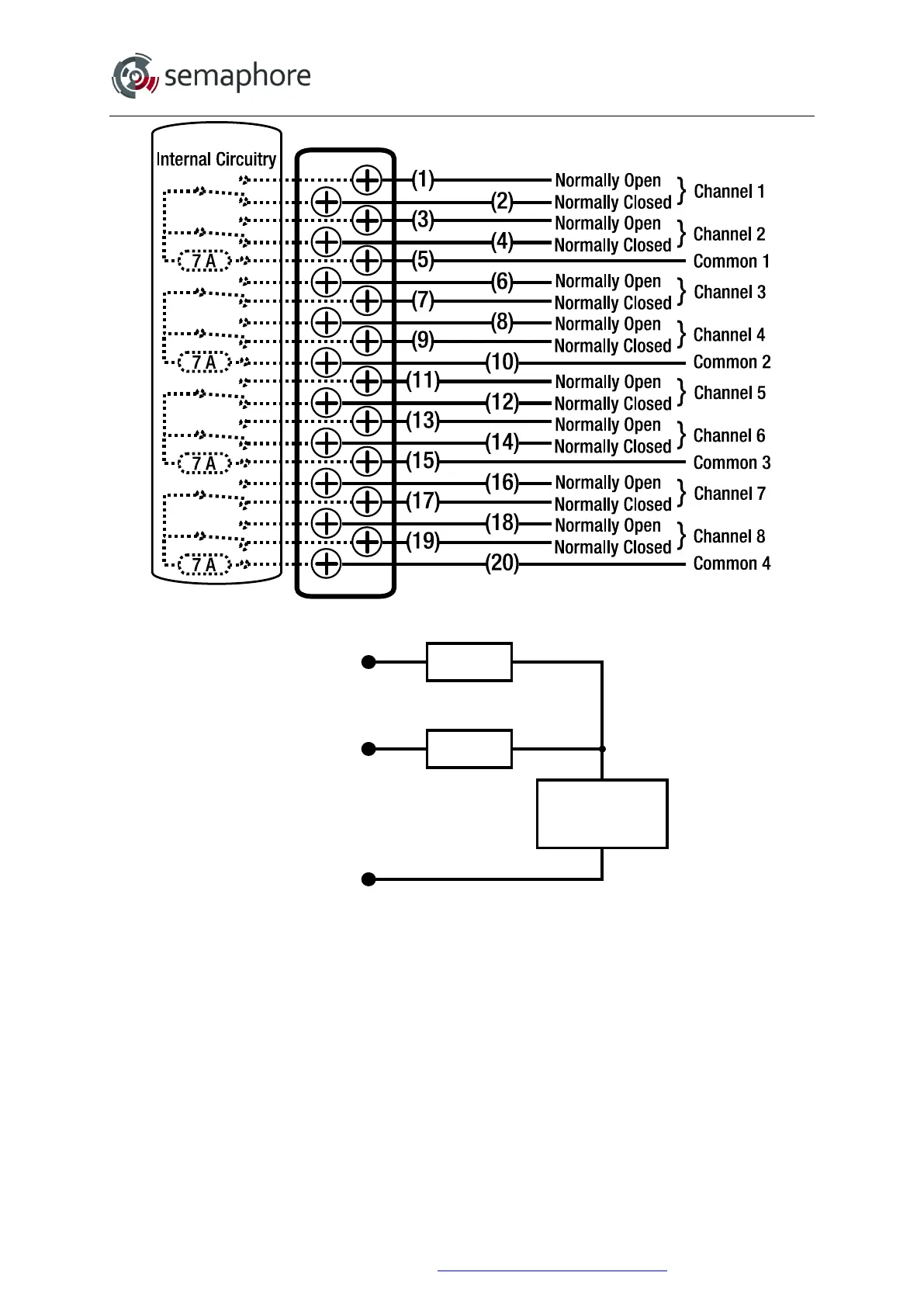

Wiring Example
Notes:
1. Polarity can be reversed.
2. For safety reasons, do not connect more than one power source to a Digital Out Common
terminal.
3. If power supply voltage exceeds SELV levels (DC 60 V or AC 42 V
PEAK
relative to
system earth and/or ground) then all Common Terminals of the module must be
connected to a single power source and no other power sources can be connected to
the same module.
LOAD Y
LOAD X
Channel Y
Channel X
Common
Power
Supply
+
_
Hardware Manual Version 7.16
