semaphore KINGFISHER PLUS+ - Page 235

Kingfisher Plus+ Hardware Manual

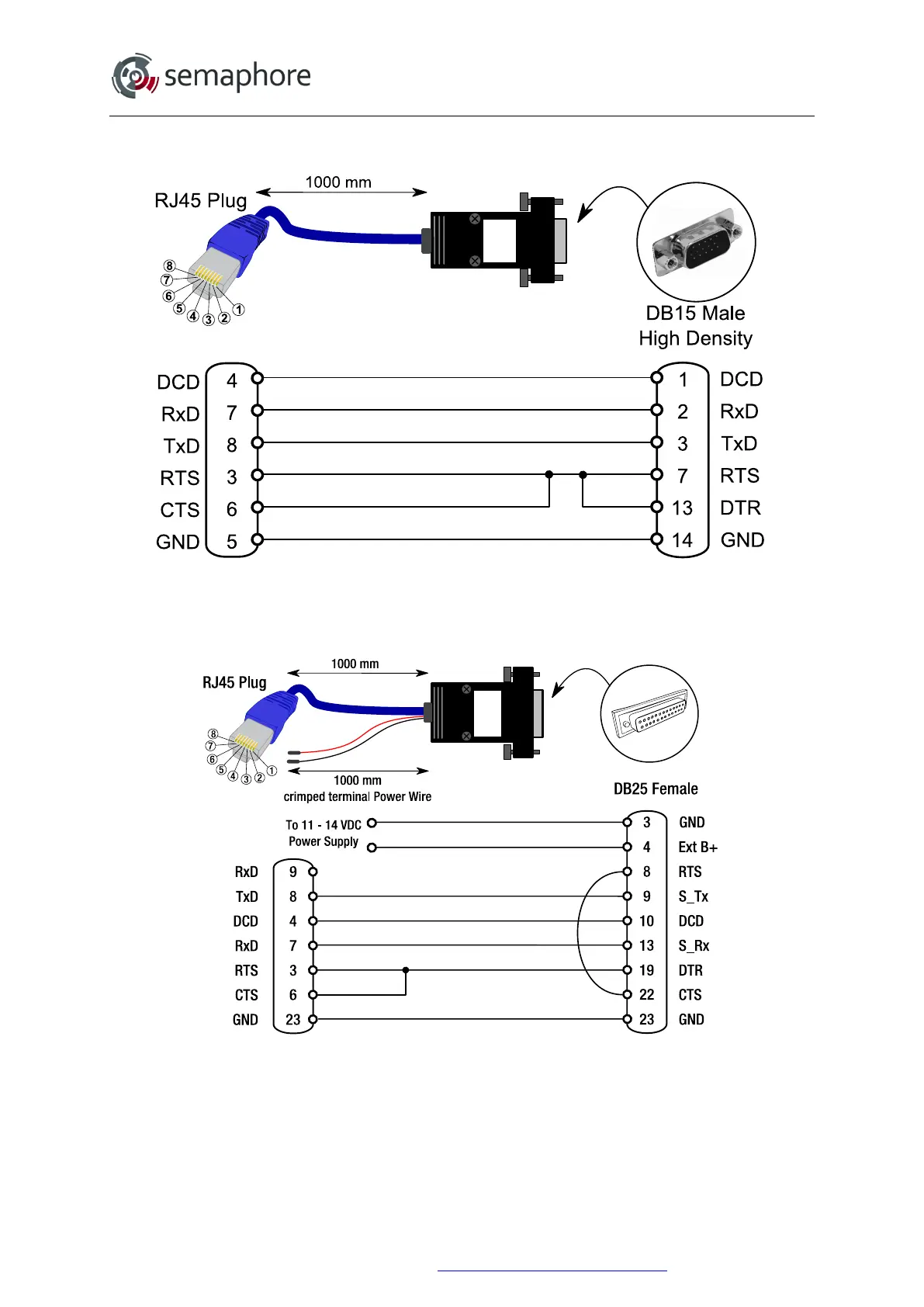

RJC-ADP-26: Serial Port to Maxon MM-6280IND 3G Data Modem
(previously used for the Maxon MM-5100 CDMA Modem)
To Kingfisher Serial Port
To 3G Data Modem
RJC-ADP-27: RTU Serial Port to Motorola 9522 Satellite Transceiver
To Kingfisher Serial Port
To Satellite Transceiver
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 235
