semaphore KINGFISHER PLUS+ - Page 237

Kingfisher Plus+ Hardware Manual

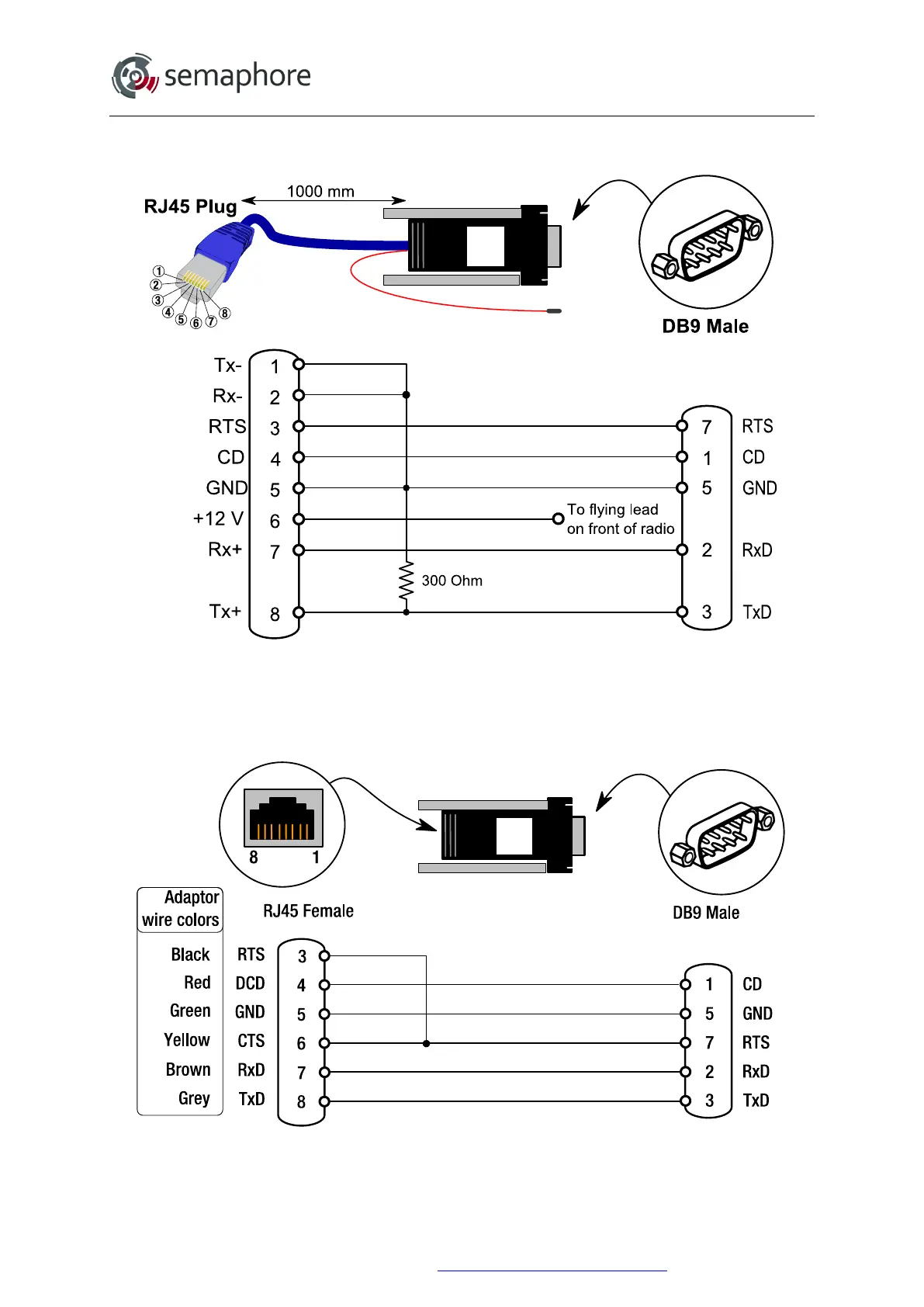

RJC-ADP-30: CP-xx Line Option Board to Trio M Series Analogue Radio (no modem
fitted) E.g. MR450
To Kingfisher Serial Port
To Trio Radio
ADP-31: PC-1/MC-1 Radio Port to Trio M Series Analogue Radio (no modem fitted) E.g.
MR450
To Kingfisher Serial Port
To Trio Radio
Hardware Manual Version 7.16
http://www.servelec-semaphore.com/
Page 237
