Kingfisher Plus+ Hardware Manual
Powered from 12 – 16 V
DC
Supply:

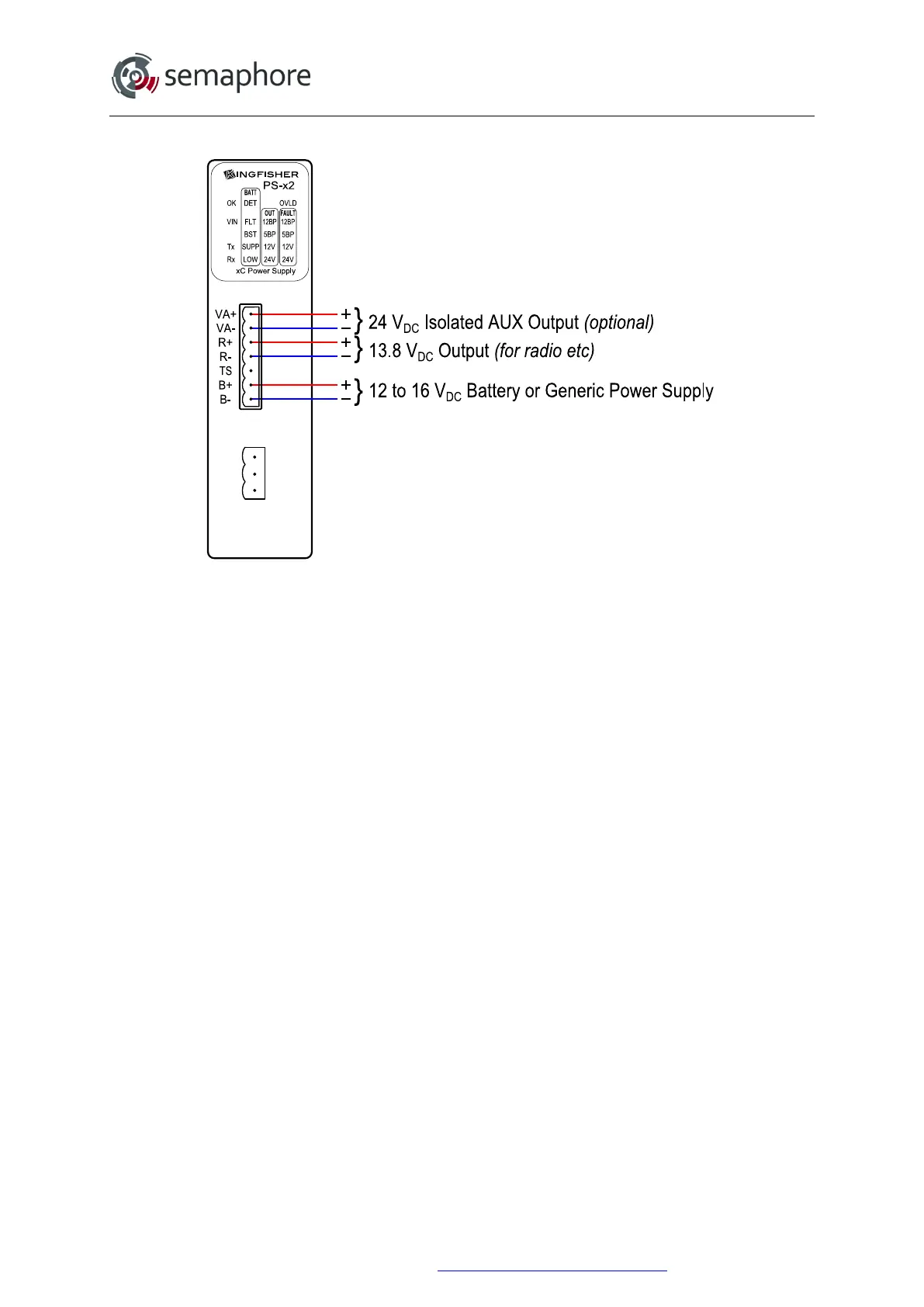

PS-x2/PS-x1 Wiring Diagram
Notes:
1. A battery, a solar system or any other low voltage DC supply can be connected to the
‘B’ terminals to power the PS-x2/PS-x1 module.
