SGM Technology for lighting GB
Pilot 3000 Us
er’s Manual 1.00
- 13 -

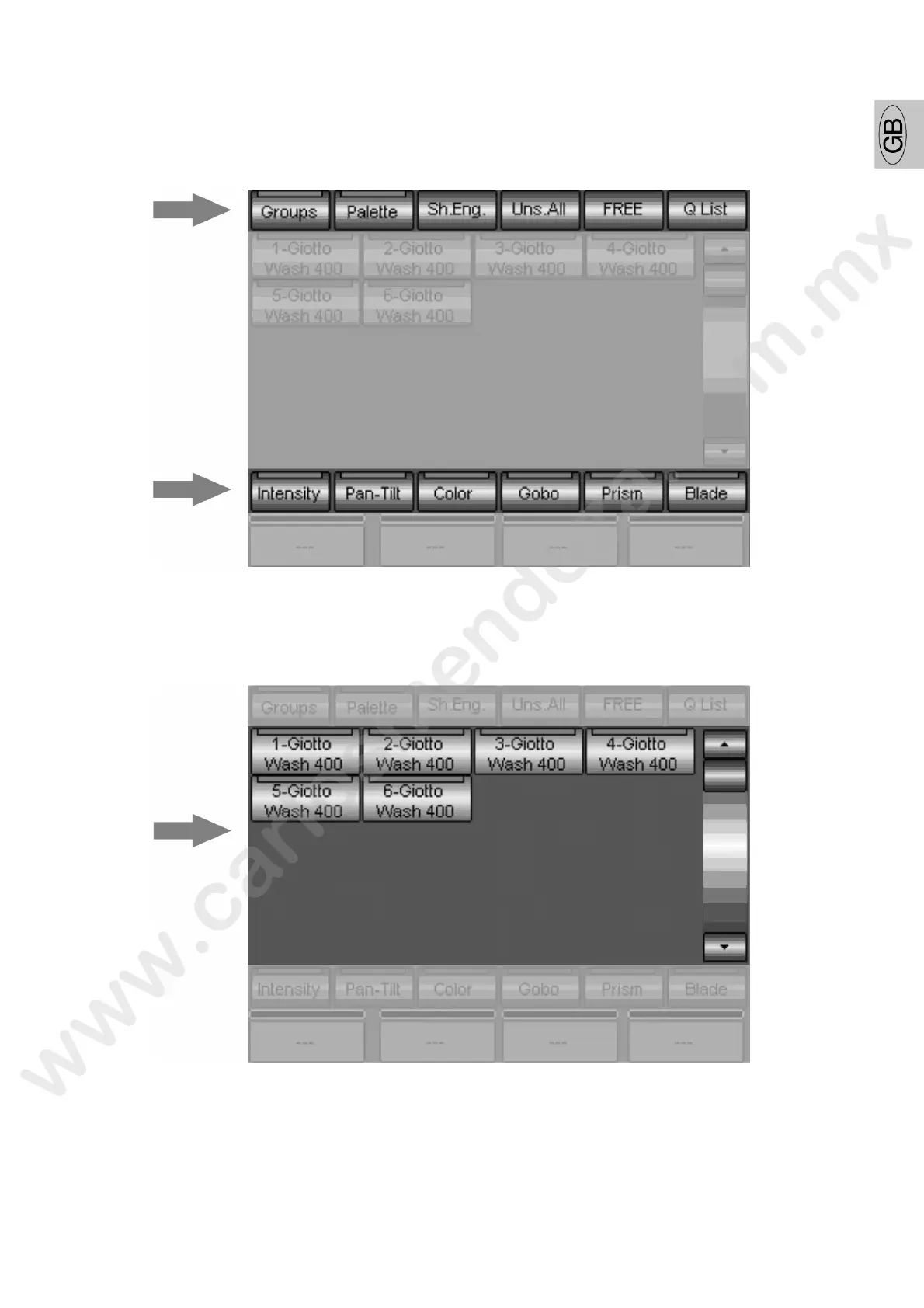

Tool-bars.
There are two tool-bars, at the top and bottom of the screen. Each contains 6 buttons, some of
which have functions that vary according to the operating environment (Editor, Shape Engine,
Playback).
Selection and Operating window
It is located in the middle of the Touch-Screen. This cont ins all the selection elements: (Fixtures,
Palette, Groups, Effects) which can be selected once a a time according to the selection made.
