PAN-TILT CONTROLLERS
This dedicated section of Pilot 3000 allows a quick instan access to Pan and Tilt capabilities at any
time.

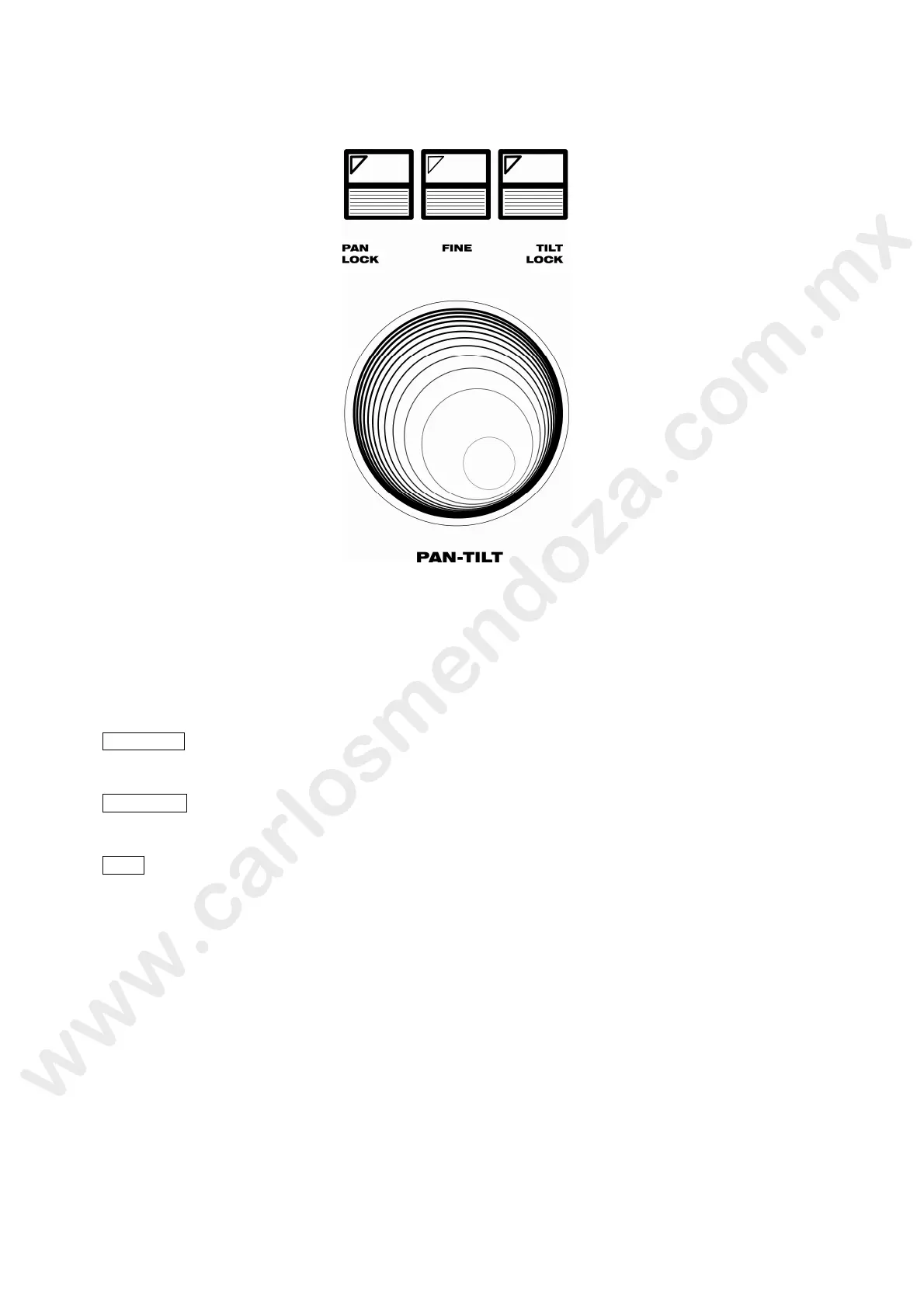

The Jog-Ball allows a precise control of Pan (horizont l axis) and Tilt (vertical axis).
The speed of movement of Pan and Tilt is prop rt onal to the displacement of the Jog-Ball from its
central position.
Three keys are positioned on top of the Jog Ball and are used for:
PAN LOCK
When activated, the Jog-Ball can t ontrol the Pan movement.
TILT LOCK
When activated, the Jo -Ball cannot control the Tilt movement.
FINE
When activated allows the fine positioning for Pan and Tilt.
