SGM Technology for lighting GB
Pilot 3000 Us
er’s Manual 1.00
- 15 -

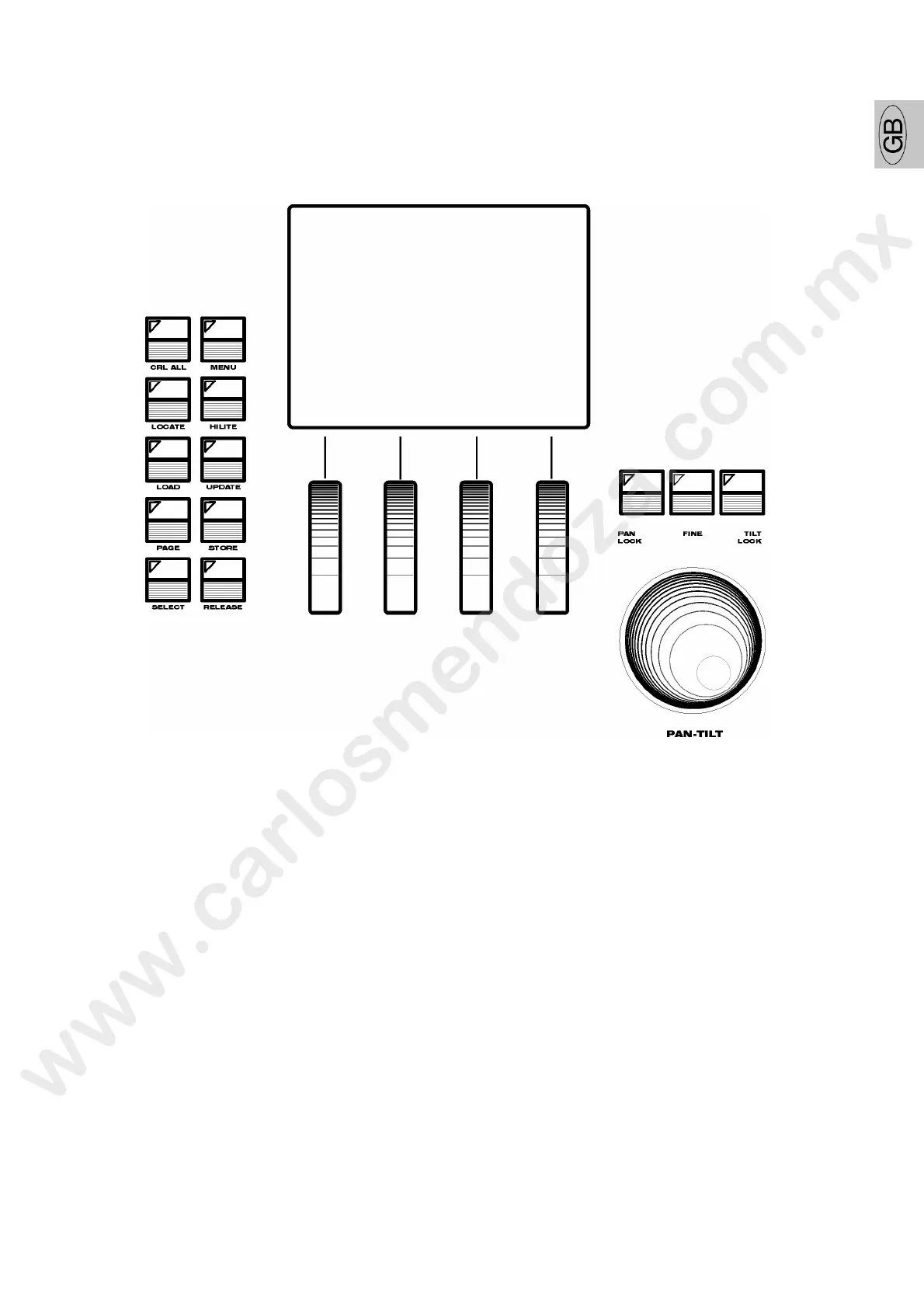

3.3 Editor Keyboard
The Pilot 3000 Editor Keyboard is the area that contains all the keys normally used for programming
work. Selecting, changing, saving, access to the menu are the “main actions” carried out using the
Editor Keyboard.
The Editor Keyboard is divided into 3 main areas:
Editor Keypad
This keypad is made of 10 keys for a rapid access to the editing functions.
Display & Wheels
The most important a a of Pilot 3000 where is it possible to control all the parameters used for
programming and playback cues.
Pan Tilt cont ollers
Are grouped here all the dedicated keys and Jog-Ball used for a rapid access to Pan and Tilt
paramet rs.
