Sharp MX-2314N Service Manual

MX-3114N MAINTENANCE 9 – 31

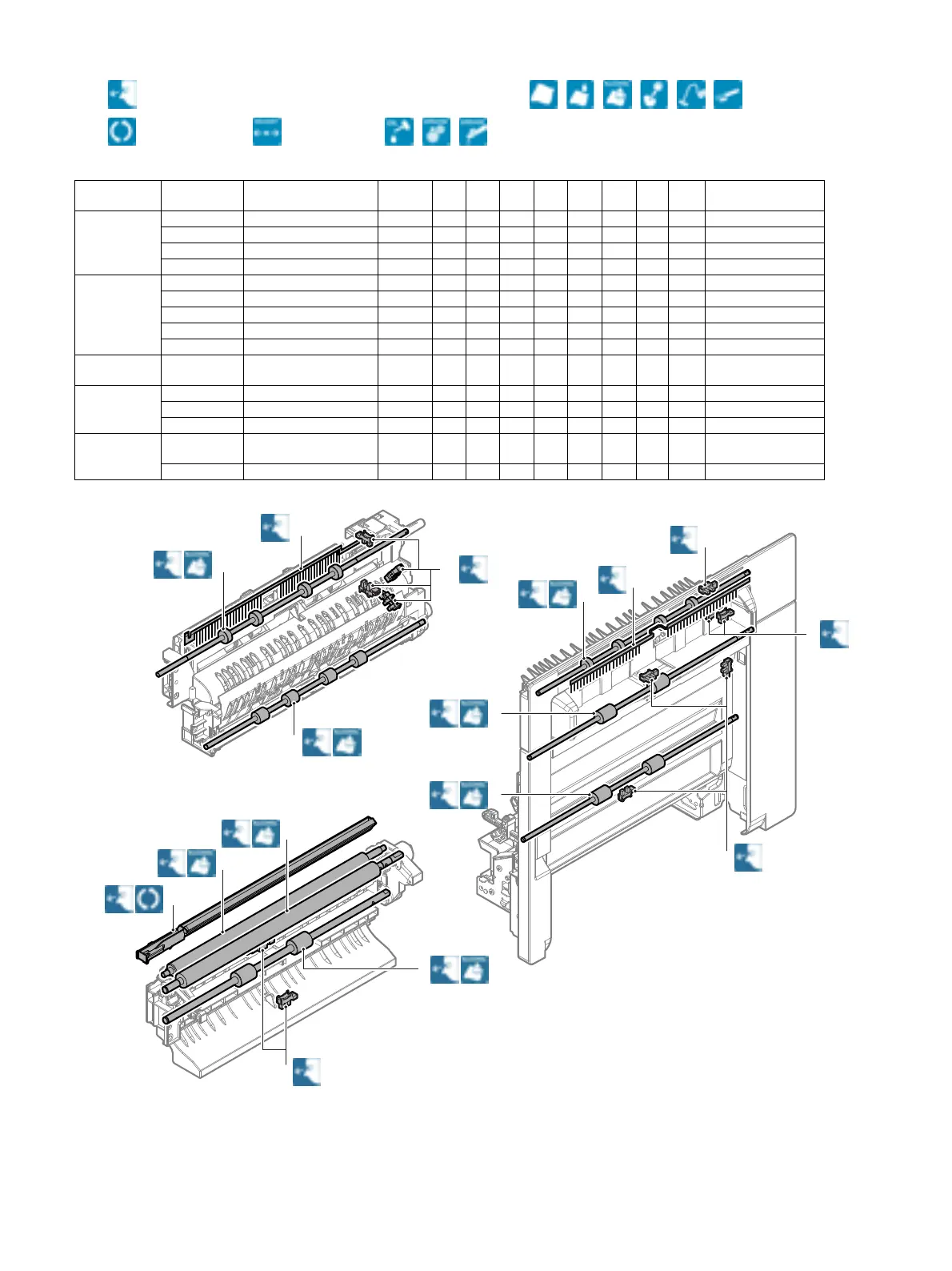

I. Paper registration section (paper transport section)/Paper exit section/ADU section
23 cpm machine
Unit name
Parts work
sequence
Part name
When
calling
100
K
200
K
300
K
400
K
500
K
600
K
700
K
800
K
Remark
PS unit 1 Registration roller (Idle) ✕ 
2 Registration roller (drive) ✕ 
3 Transport roller 5 ✕ 
4 Sensors ✕ ✕✕✕✕✕✕✕✕
Right door unit 5 Transport roller 7 ✕ 
6 Transport roller 8 ✕ 
7 Paper exit roller 2 ✕ 
8 Discharge brush ✕ ✕✕✕✕✕✕✕✕
9 Sensors ✕ ✕✕✕✕✕✕✕✕
Fusing rear
unit
10 Transport roller 6 ✕ 
Paper exit unit 11 Paper exit roller 1 ✕ 
12 Discharge brush ✕ ✕✕✕✕✕✕✕✕
13 Sensors ✕ ✕✕✕✕✕✕✕✕
Other 14 Paper dust removing
unit
 
– Paper guides  Clean with alcohol.
g Check (Clean, replace, or adjust according to necessity.) Ũ : Clean
Ţ : Replace : Lubricateţ : Adjust ŭ
1
2
5
6
7
11
8
12
9
9
9
13
3
4
10
14
