Sharp MX-2314N Service Manual

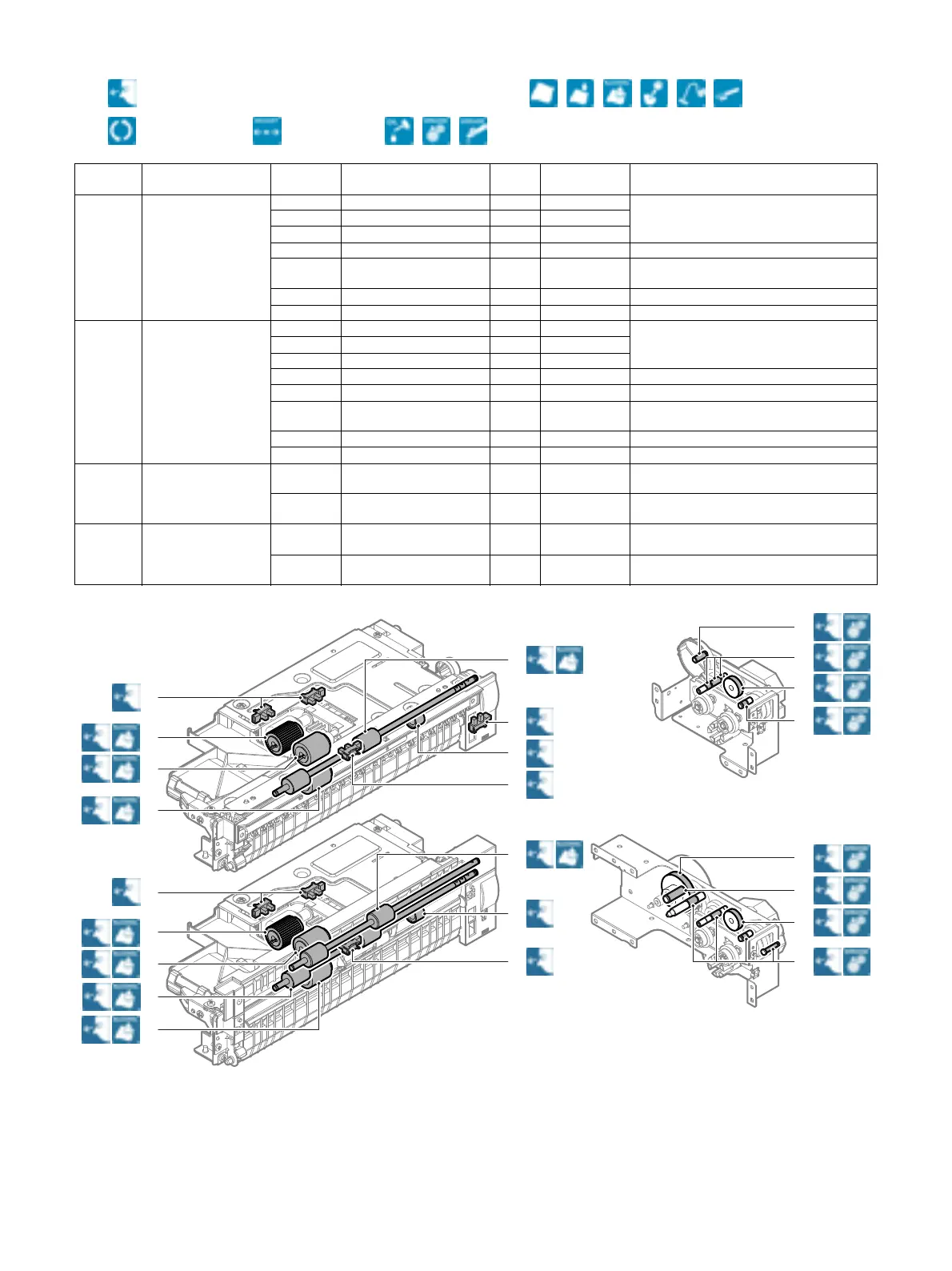

MX-3114N MAINTENANCE 9 – 41
(2) Stand/2x500 sheet paper drawer
Unit work
sequence
Unit name
Parts work
sequence
Part name
When
calling
At the
machine cycle
Remark
1 Tray 2 paper feed unit 1 Paper pickup roller ✕  Replace at 100K of each tray paper feed
counter or 1 year of use.
2 Paper feed roller ✕ 
3 Separation roller ✕ 
4 Transport roller 1 ✕ 
5 Torque limiter ✕✕Replace at 100K of each tray paper feed
counter.
6 Sensors ✕✕
– Paper guides Clean with alcohol.
2 Tray 3 paper feed unit 7 Paper pickup roller ✕  Replace at 100K of each tray paper feed
counter or 1 year of use.
8 Paper feed roller ✕ 
9 Separation roller ✕ 
10 Vertical transport roller 1 ✕ 
11 Transport roller 3 ✕ 
12 Torque limiter ✕✕Replace at 100K of each tray paper feed
counter.
13 Sensors ✕✕
– Paper guides Clean with alcohol.
3 1CS drive unit 14 Gears (grease) ✕✕Apply to the specified position when checking.
HANARL FL-955R
15 Shafts (grease) ✕✕Apply to the specified position when checking.
FLOIL G-313S
4 2CS drive unit 16 Gears (grease) ✕✕Apply to the specified position when checking.
HANARL FL-955R
17 Shafts (grease) ✕✕Apply to the specified position when checking.
FLOIL G-313S
g Check (Clean, replace, or adjust according to necessity.) Ũ : Clean
Ţ : Replace : Lubricateţ : Adjust ŭ
14
16
17
1
6
2
3
5
6
15
17
15
15
6
16
4
7
13
8
9
13
12
10
11

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
