Sharp MX-2314N Service Manual

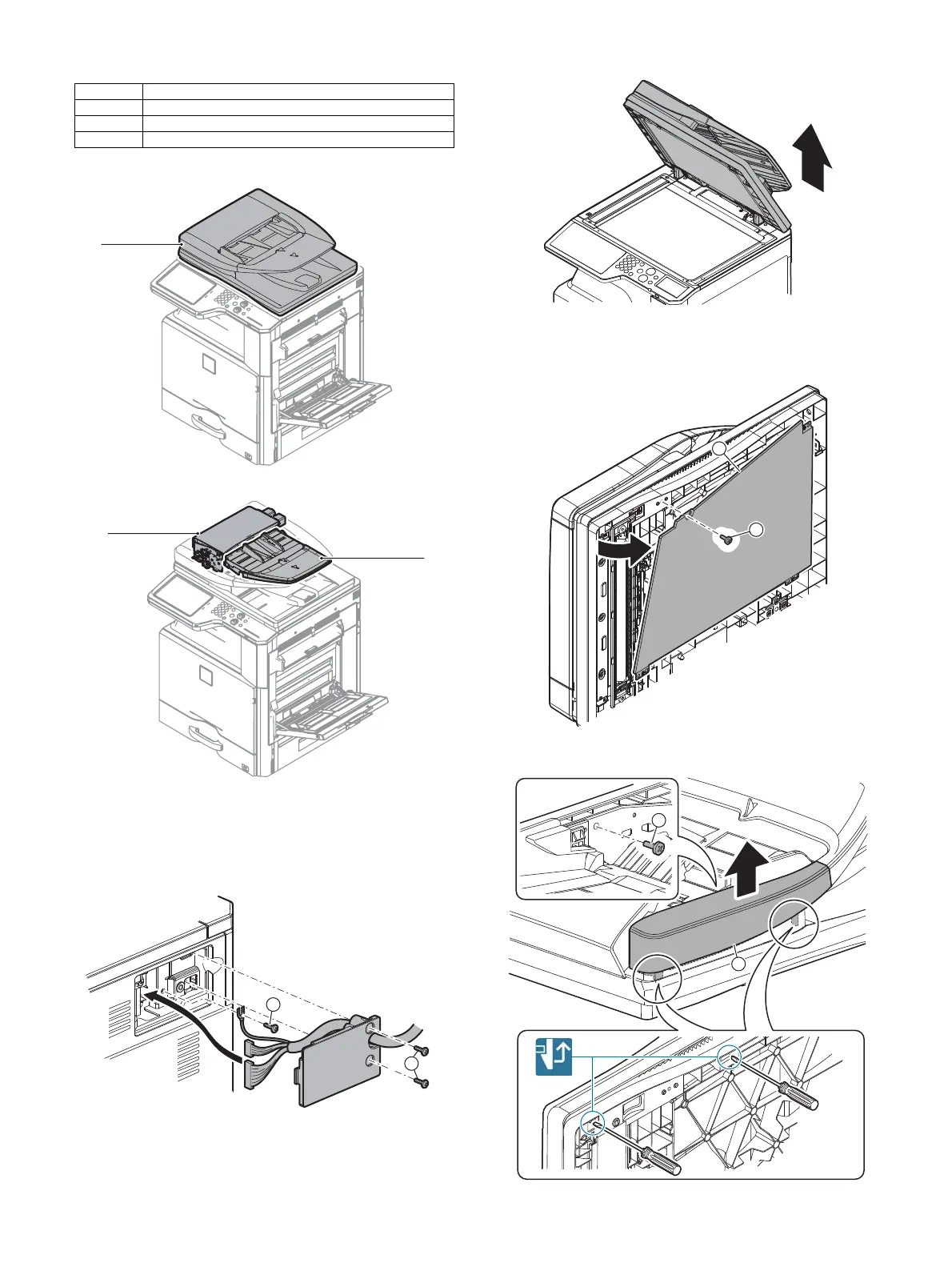

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 4
C. RSPF section
(1) RSPF unit
1) Remove the two screws and remove the rear cabinet.
2) Loosen the screw fixing the earth cable and remove the earth
cable. Then, disconnect the connector.
3) Remove the RSPF unit from the machine.
(2) RSPF paper feed tray unit
1) Turn over the left upper corner of the OC mat.
2) Remove the front cabinet.
No. Name
1RSPF unit
2 RSPF paper feed tray unit
3 RSPF transport unit





1
2
1
2

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
