Sharp MX-2314N Service Manual

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 5

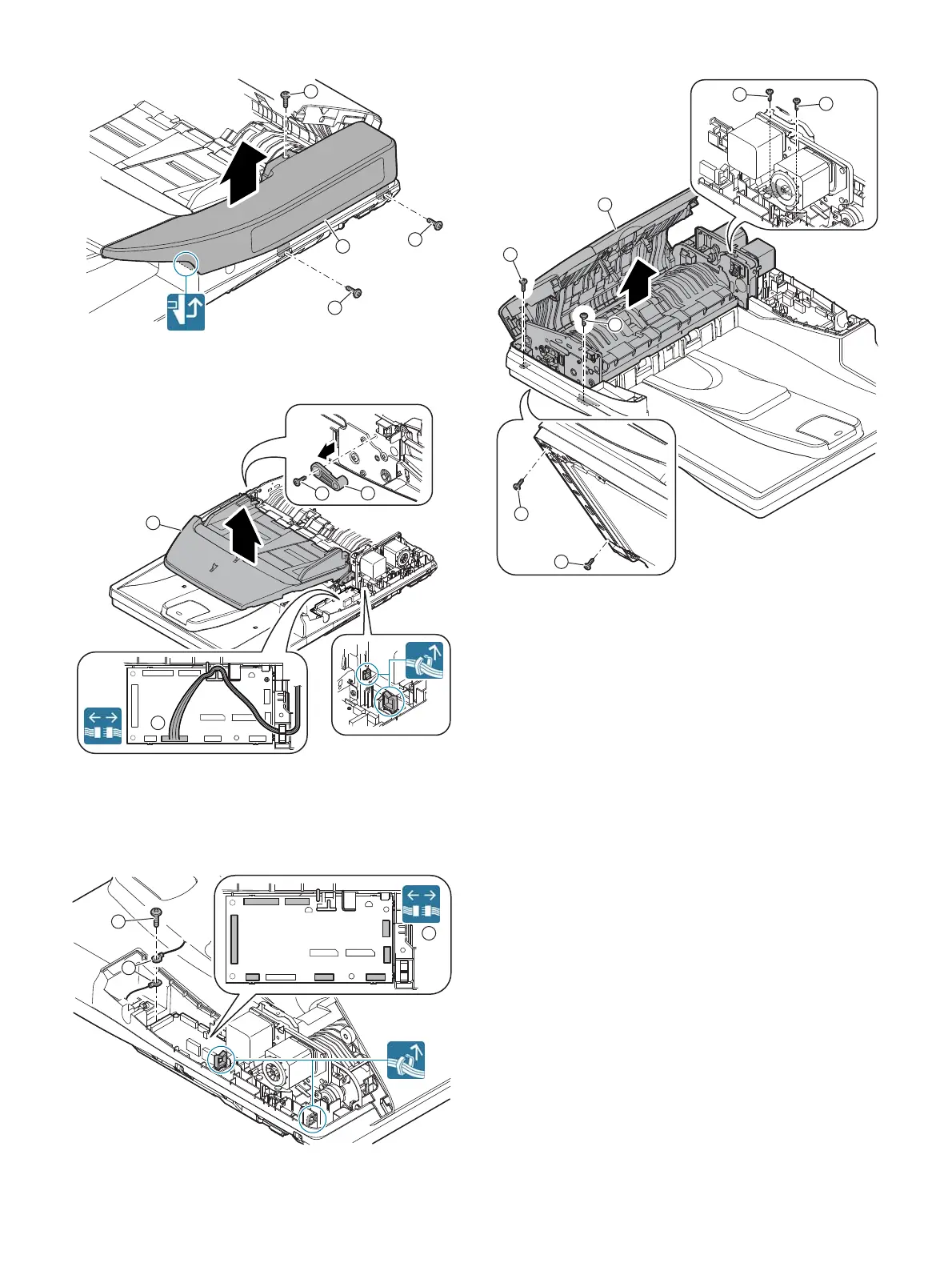

3) Remove the rear cabinet.
4) Disconnect the connector from the RSPF driver PWB. Remove
the holder, and remove the RSPF paper feed tray unit.
(3) RSPF transport unit
1) Remove the paper feed tray unit.
2) Remove the earth wire. Disconnect the connector from the
RSPF driver PWB.
3) Remove the RSPF transport unit.
1
1
1
2
3
4
2
1
3
1
2
2
1
1
1
1
1
1

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
