MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 39

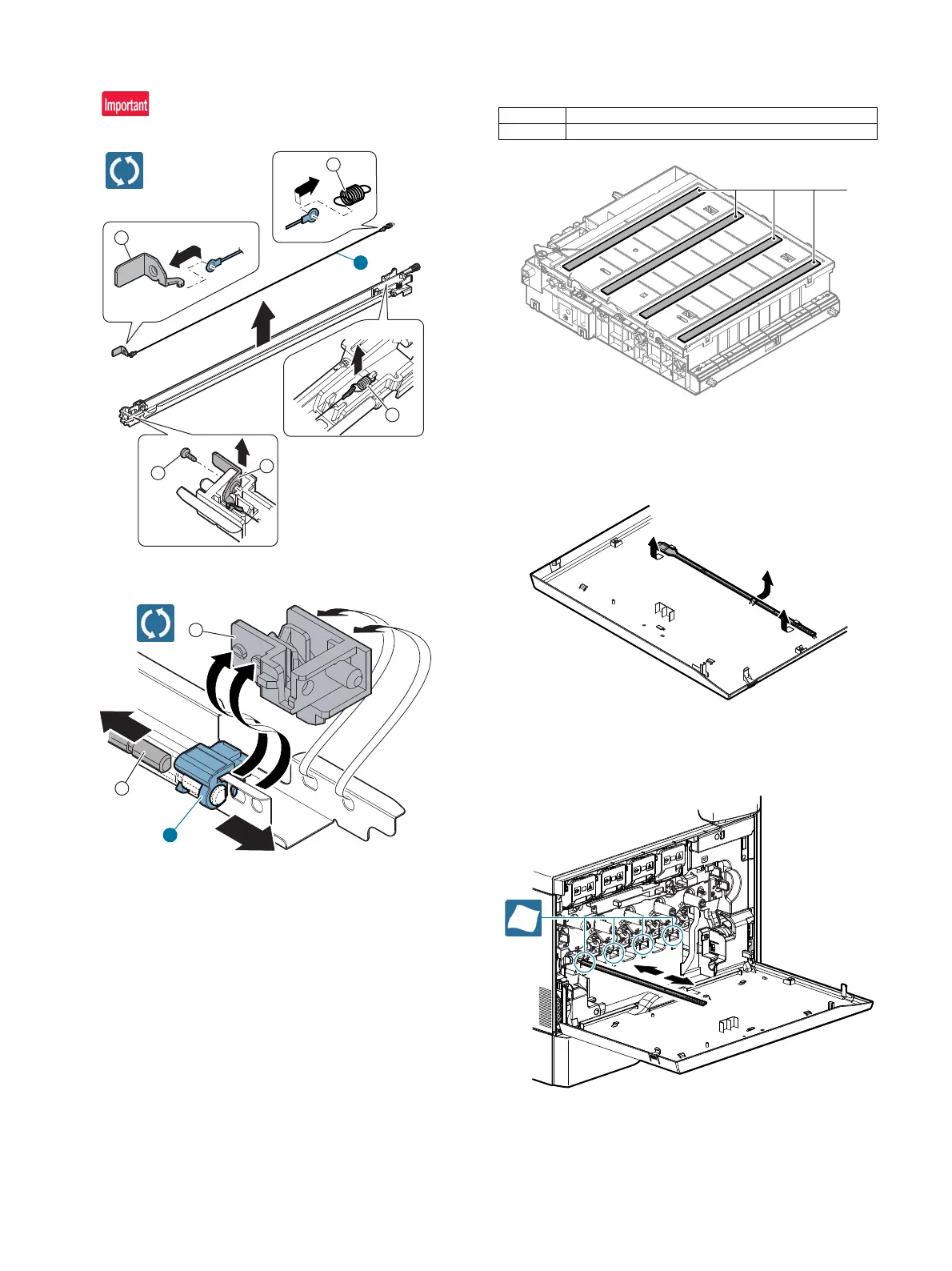

2) Remove the electrode plate, and remove the spring. Remove
the electrode plate and the spring from the PTC wire.
Do not touch the wire section of the PTC wire with bare hands.
3) Remove the holder, and remove the PTC cleaner holder.
G. LSU section
(1) LSU
a. Dust-proof glass
1) Remove the waste toner box.
2) Remove the LSU cleaning rod from the front cabinet.
3) Insert the LSU cleaning rod with the felt side downward, and
move it back and forth several times to clean the LSU dust-
proof glass.
4
5
6
1
2
3
3
2
1
No. Name
1 Dust-proof glass
1
