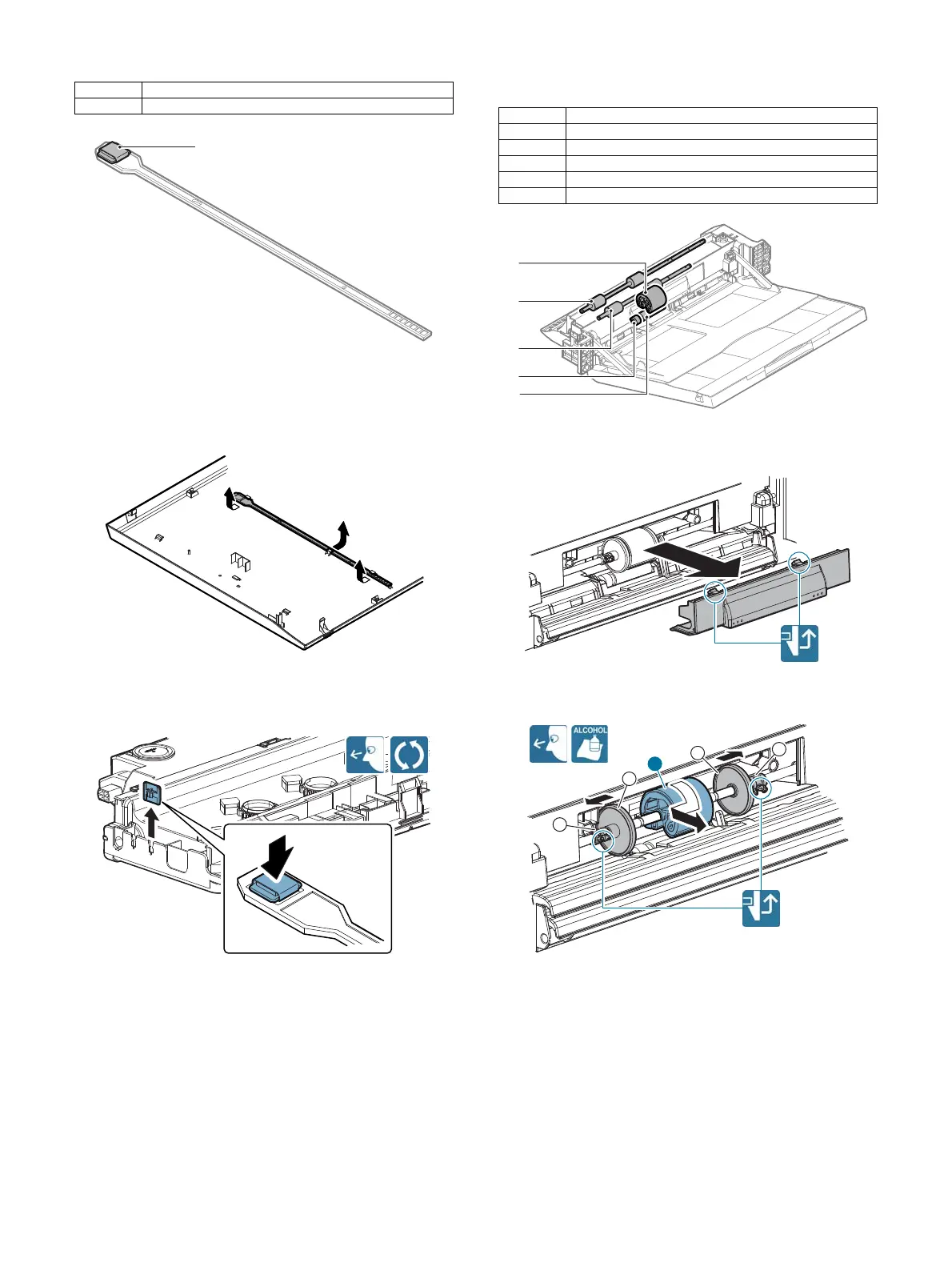

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 40
(2) LSU cleaning rod
a. Cleaning base
1) Remove the waste toner box.
2) Remove the LSU cleaning rod from the front cabinet.
3) Remove the cleaning base from the waste toner box, and
attach it to the LSU cleaning rod.
H. Manual paper feed section
(1) Manual paper feed unit
a. Paper feed roller, Separation roller, Torque limiter
1) Remove the cover.
2) Slide the stopper and the collar, and remove the paper feed
roller.
No. Name
1 Cleaning base
1
No. Name
1 Paper feed roller
2 Separation roller
3 Torque limiter
4 Transport roller 9
5 Transport roller 10 (26 cpm/31 cpm machine)
4
5
1
3
2
3
1
2
1
2
