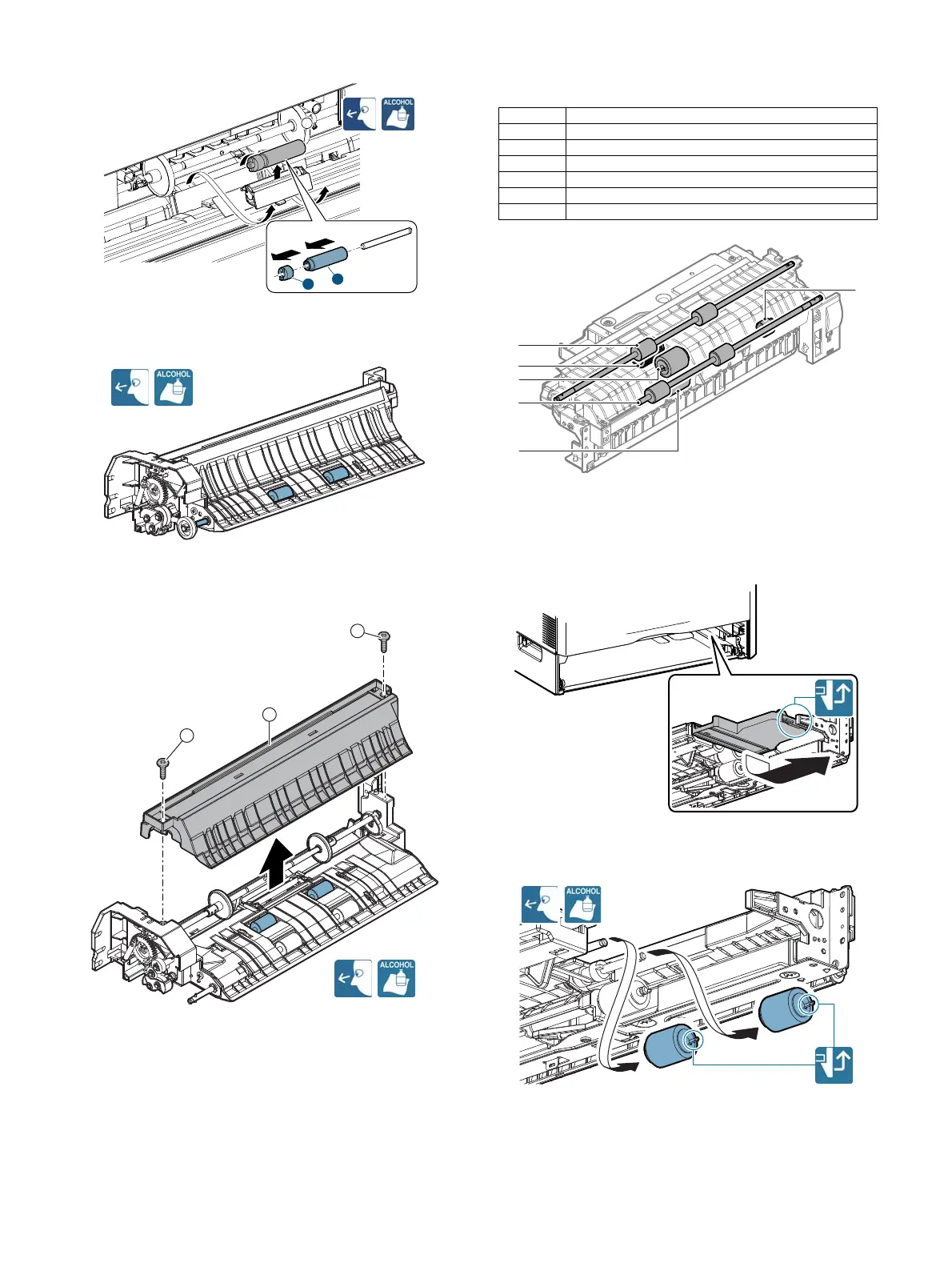

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 41
3) Remove the separation roller, and the torque limiter.
b. Transport roller 9
1) Clean the transport roller 9.
c. Transport roller 10(26 cpm/31 cpm machine)
1) Remove the paper guide, and clean the transport roller 10.
I. Tray paper feed section
(1) Tray paper feed unit
a. Paper pickup roller, Paper feed roller, Separation roller
1) Remove the paper feed tray.
2) Remove the paper guide.
3) Remove the paper pickup roller, and the paper feed roller.



2
1
1
No. Name
1 Paper pickup roller
2 Paper feed roller
3 Separation roller
4 Transport roller 4
5 Transport roller 2
6 Torque limiter
1
4
5
2
3
6
