MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 42

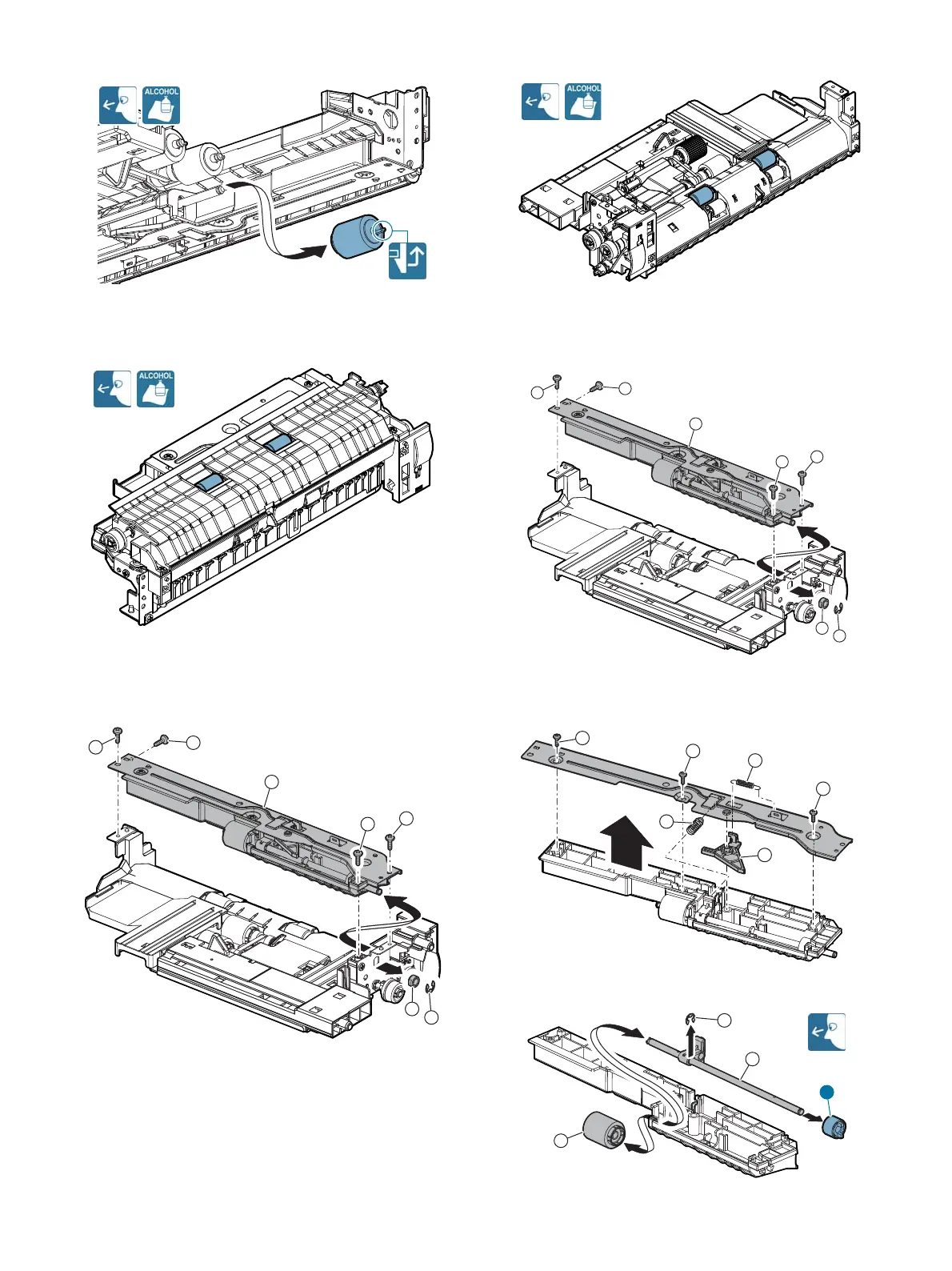

4) Remove the separation roller.
b. Transport roller 4
1) Clean the transport roller 4.
c. Transport roller 2
1) Remove the E-ring and the bearing, and remove the paper
feed lower PG unit.
2) Clean the transport roller 2.
d. Torque limiter
1) Remove the E-ring and the bearing, and remove the paper
feed lower PG unit.
2) Remove the spring, and remove the reinforcement plate.
Remove the spring, and the separation pressure release plate.
3) Remove the separation roller. Remove the E-ring, and the
shaft, and remove the torque limiter.
2
2
2
1
2
3
2
2
2
2
1
2
3
2
1
2
3
4
5
2
4
1
2
3
