MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 43

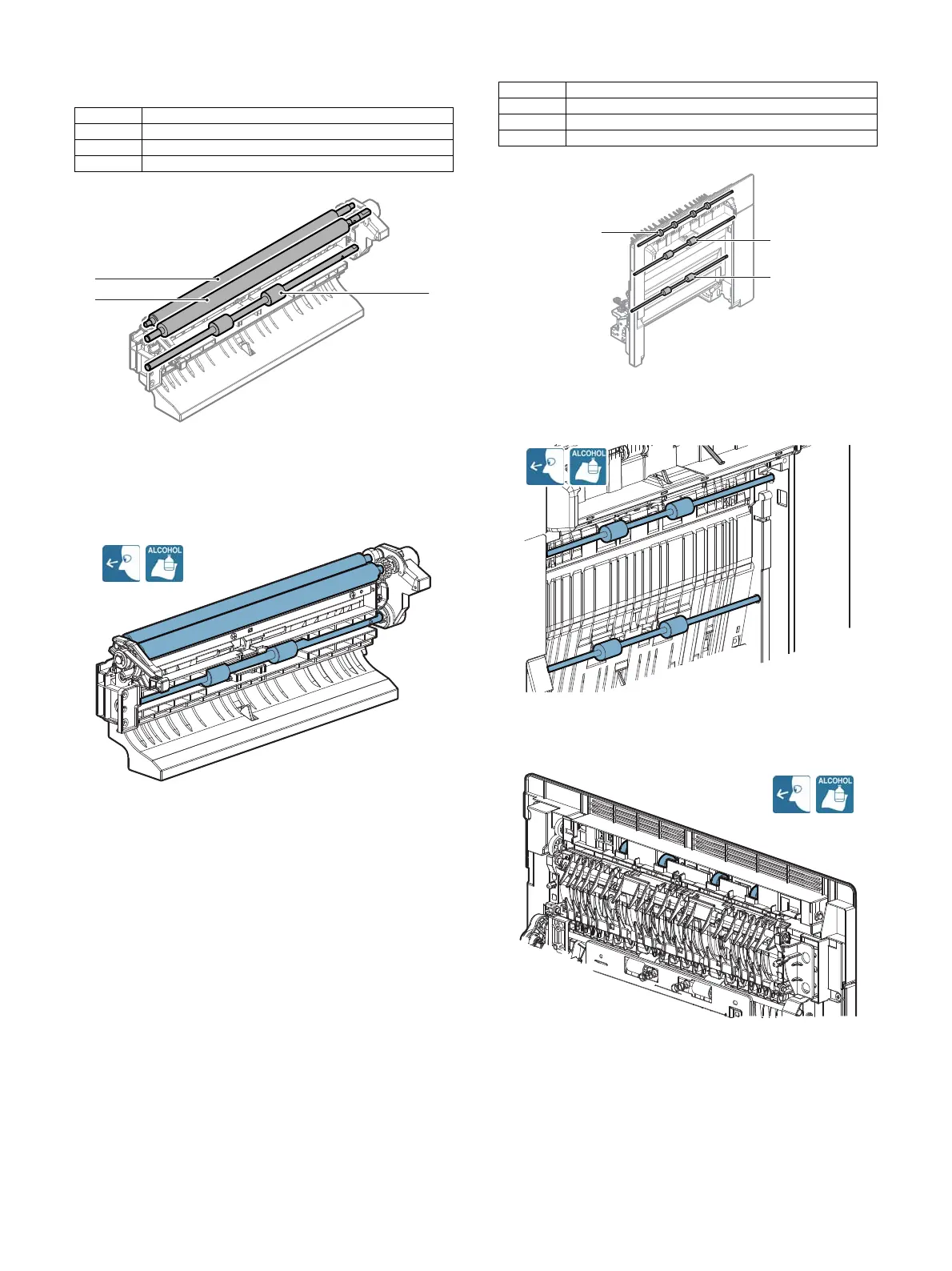

J. Paper transport/Paper exit/ADU section
(1) PS unit
a. Registration roller (Idle), Registration roller (Drive),
Transport roller 5
1) Clean the registration roller (Idle), the registration roller (Drive),
and the transport roller 5.
(2) Right door unit (23cpm machine)
a. Transport roller 7, Transport roller 8
1) Open the ADU open/close door, and clean the transport roller
7, and the transport roller 8.
b. Paper exit roller 2
1) Open the right door unit, and clean the paper exit roller 2.
No. Name
1 Registration roller (Idle)
2 Registration roller (Drive)
3 Transport roller 5
1
2
3
No. Name
1 Transport roller 7
2 Transport roller 8
3 Paper exit roller 2



