MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 44

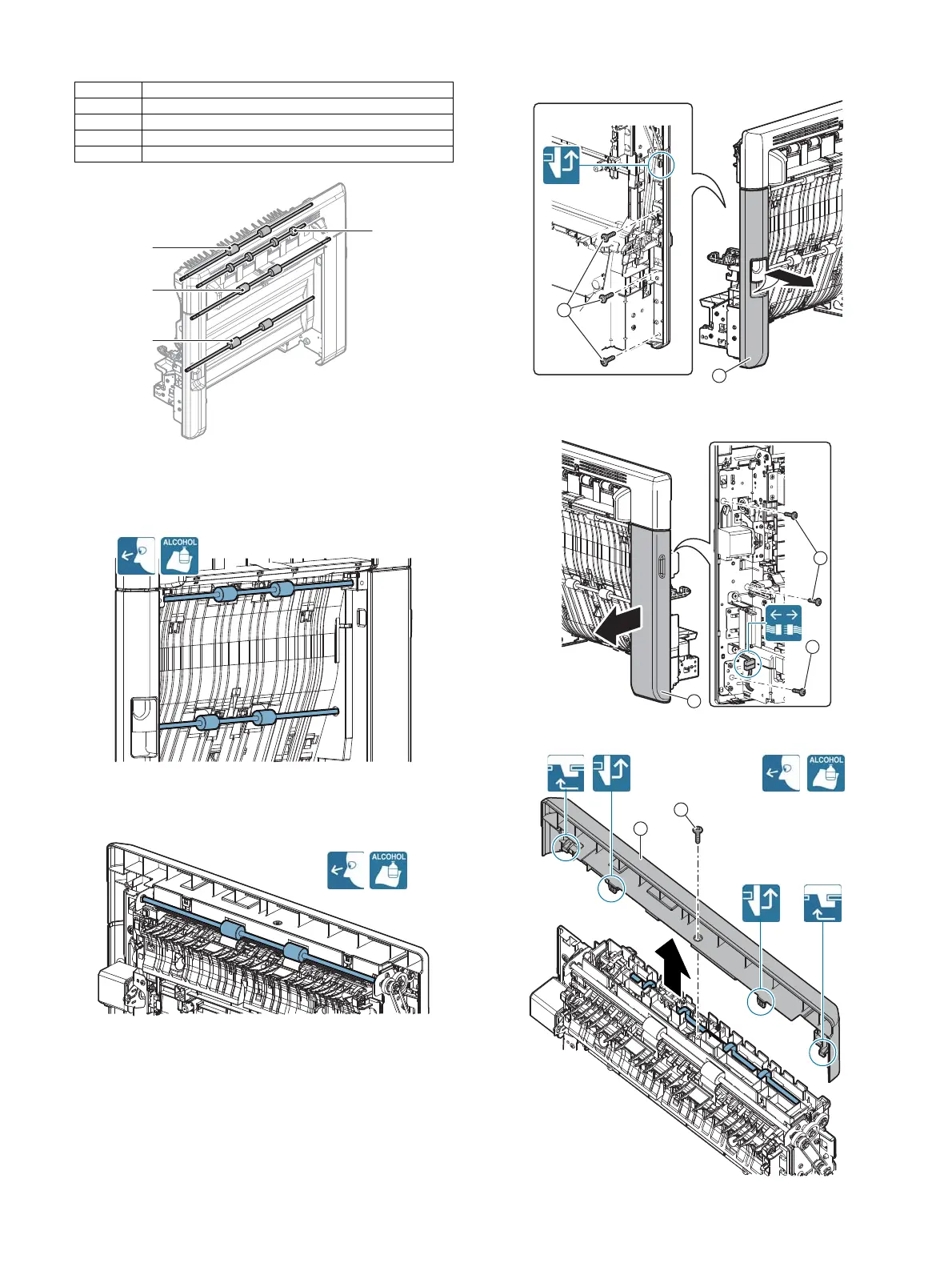

(3) Right door unit(26cpm/31cpm machine)
a. Transport roller 7, Transport roller 8
1) Open the ADU open/close door, and clean the transport roller
7, and the transport roller 8.
b. Paper exit roller 3
1) Open the right door unit, and clean the paper exit roller 3.
c. Paper exit roller 2
1) Open the right door unit, and remove the cover.
2) Remove the cover.
3) Remove the cover, and clean the paper exit roller 2.
No. Name
1 Transport roller 7
2 Transport roller 8
3 Paper exit roller 3
4 Paper exit roller 2
3
1
4
2
2
1



2
1
