MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 47

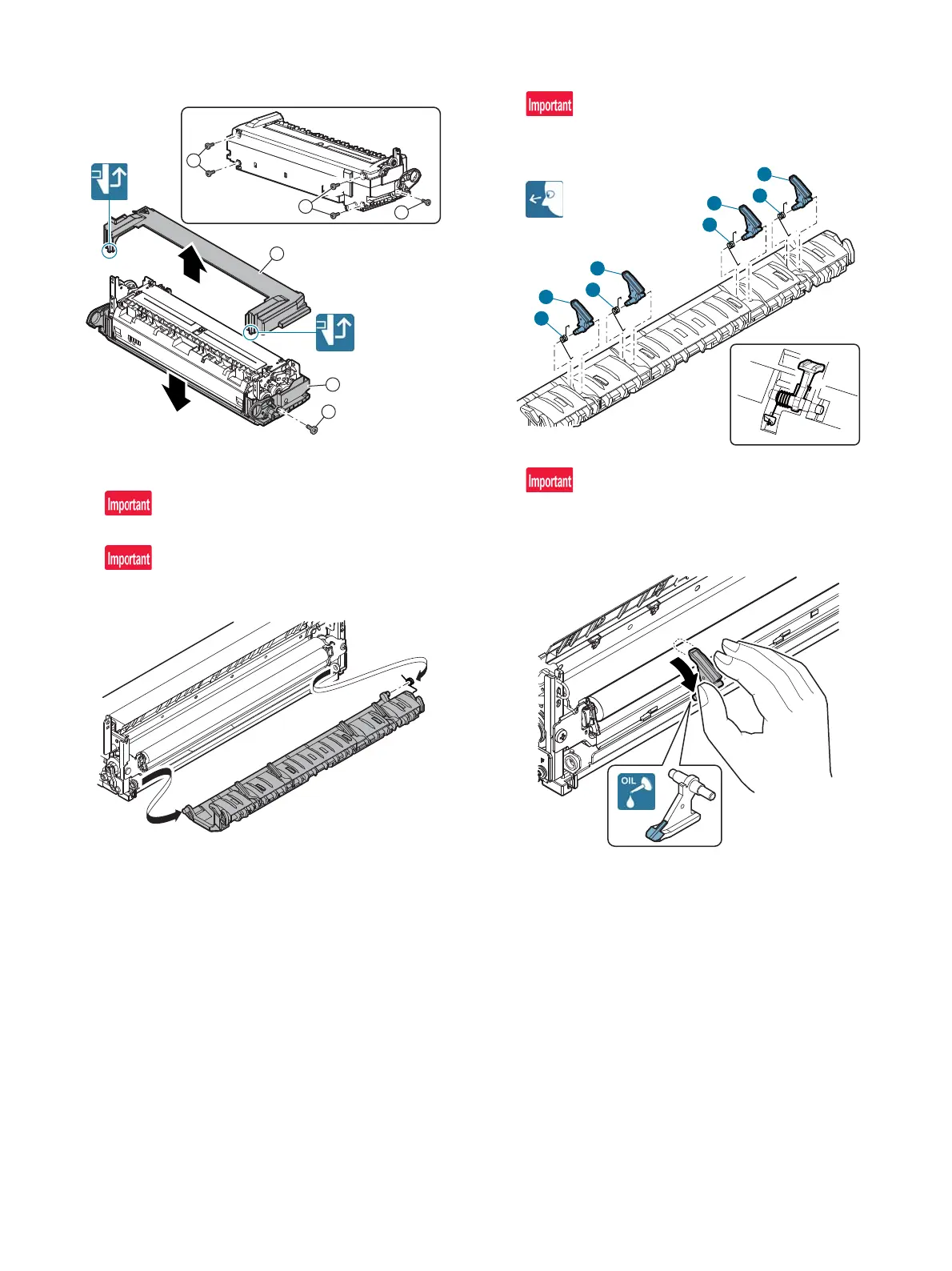

a. Lower separation pawl, Lower separation pawl spring
1) Remove the fusing cover.
2) Remove the fusing rear lower PG unit.
When removing, be careful not to lose the spring.
When attaching, check to confirm that the spring hook is
engaged.
3) Remove the lower separation pawl and the lower separation
pawl spring from the paper guide.
When assembling, check to confirm that the hook of the lower
separation pawl spring is engaged.
When replacing the lower separation pawl, make the lower
separation pawl tip touch the oil roller surface, and slightly
brush the surface several times to apply oil to the pawl tip.
Then install the separation pawl.
2
1
1
1
1
3
2
1
2
1
2
1
2
1
