MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 46
2) Remove the earth plate. Remove the discharge brush.
When replacing the discharge brush, attach a new brush to the
reference.
Thoroughly clean the frame surface of any old glue residue
before attaching the new seals.

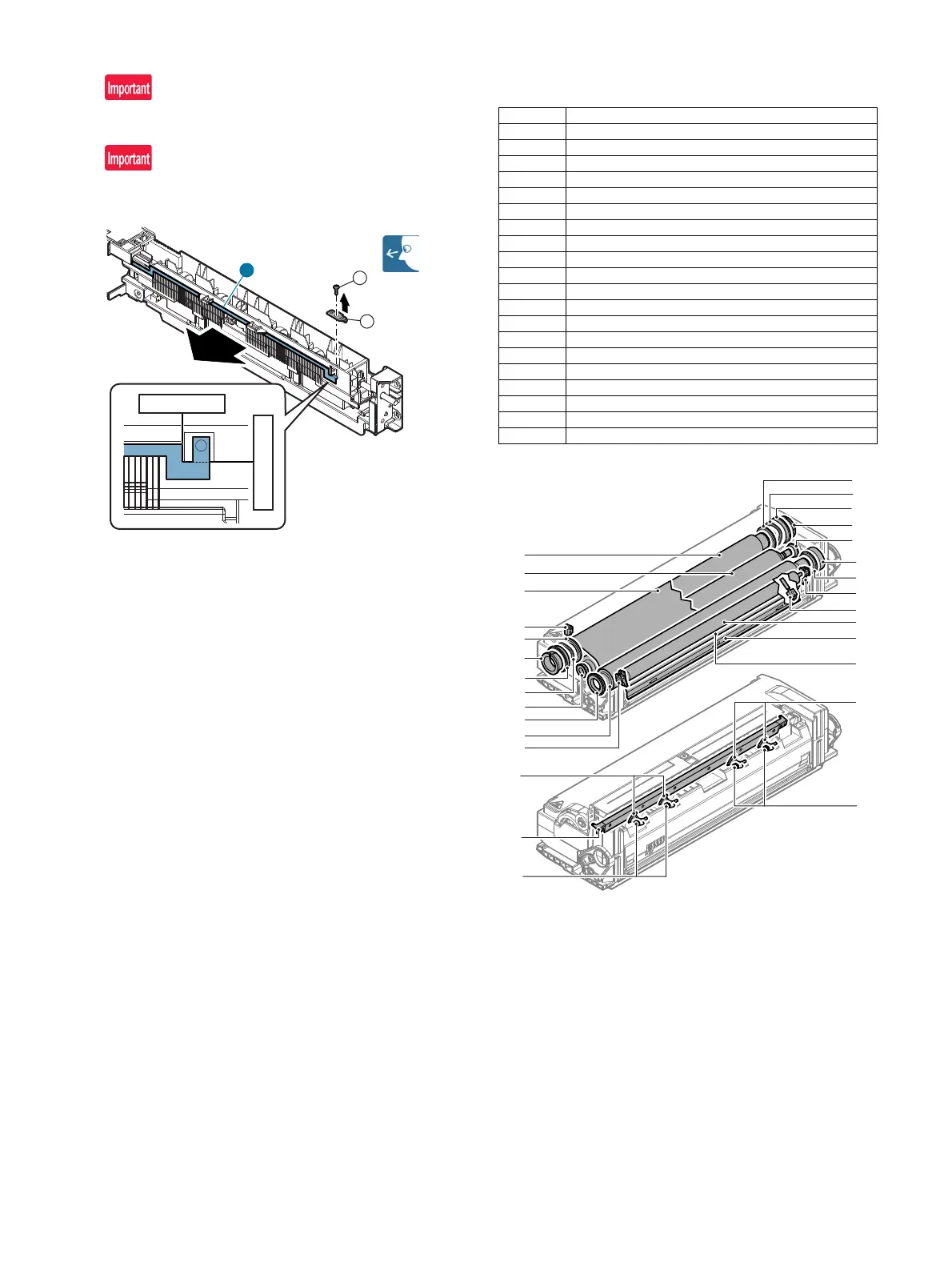

K. Fusing section
(1) Fusing unit (23cpm machine)
Folding reference
Bump reference
1
1
2
No. Name
1 Lower separation pawl
2 Lower separation pawl spring
3 Separation plate
4 Oil applying roller
5 Backup roller
6 CL roller bearing
7 Lower scraper assembly
8 Lower thermistor
9 Pressure roller gear
10 Pressure roller gear bearing
11 Pressure roller
12 Sub thermistor
13 Fusing roller bearing
14 Insulation bush
15 Heating roller bearing
16 Meandering suppress collar
17 Fusing roller
18 Heating roller
19 Fusing belt
20 Washer
1
6
11
2
1
2
4
7
9
10
10
8
5
3
12
17
19
18
13
13
14
16
20
15
15
20
16
14
6
